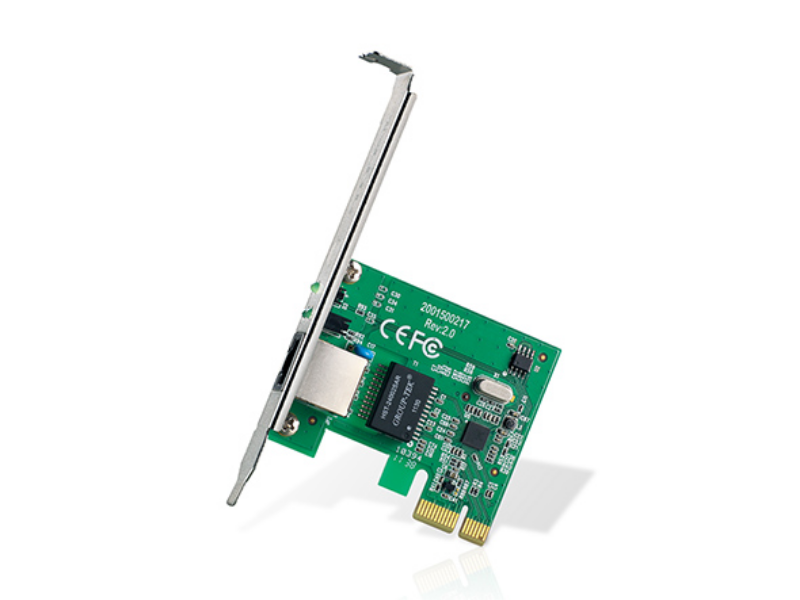

10/100/1000Mbps PCIe Adapter* 32-bit PCIe interface, saving the finite chassis space Wake-on-LAN, convenient to manage over LAN
Manufacturer: Tp-Link
SKU: NAD0009
Availability: Out of stock
€8.90 excl tax

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Status
Wireless Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensions 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification FCC, RoHS
Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows 10/8.1/8/7/XP/Vista (32/64bits)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
