HARDWARE FEATURES
Dimensions 3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)
Antenna Type Two High-Gain Dual Band Antennas
Magnetized Antenna Base
Chipset Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0
WLAN Signal Rate 5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles Archer TX3000E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles
OTHERS
Certification CE, FCC, RoHS

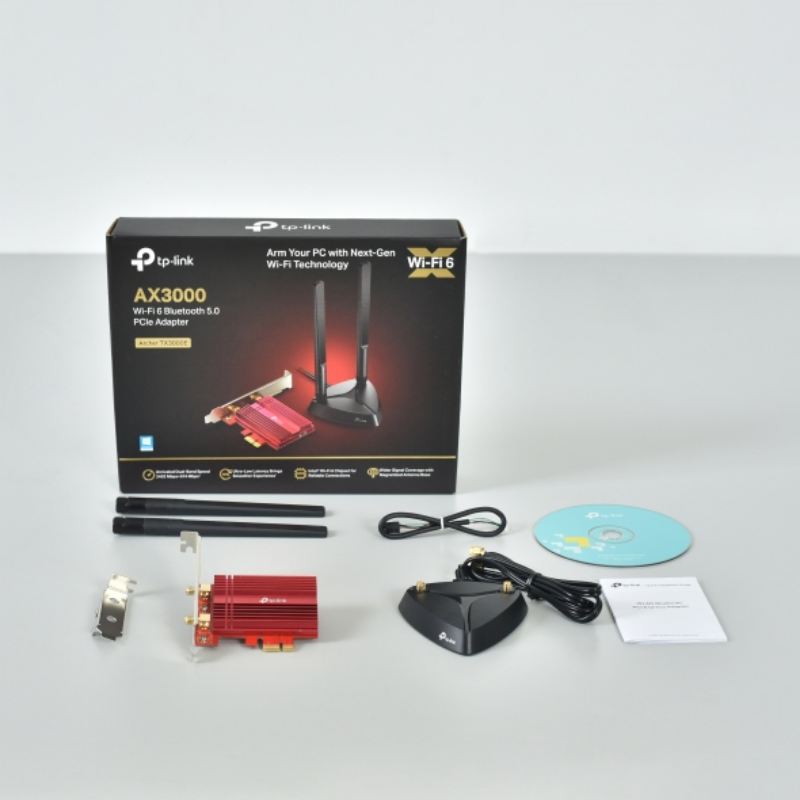

Package Contents Archer TX3000E
Magnetized Antenna Base with 1m RF Cable
Two 5 dBi High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Windows 10(64-bit) only
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
