Products
Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.† High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously. Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§ PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Manufacturer: Tp-Link
SKU: NAP0017
Availability: 19 in stock
€118.31 excl tax
HARDWARE FEATURES

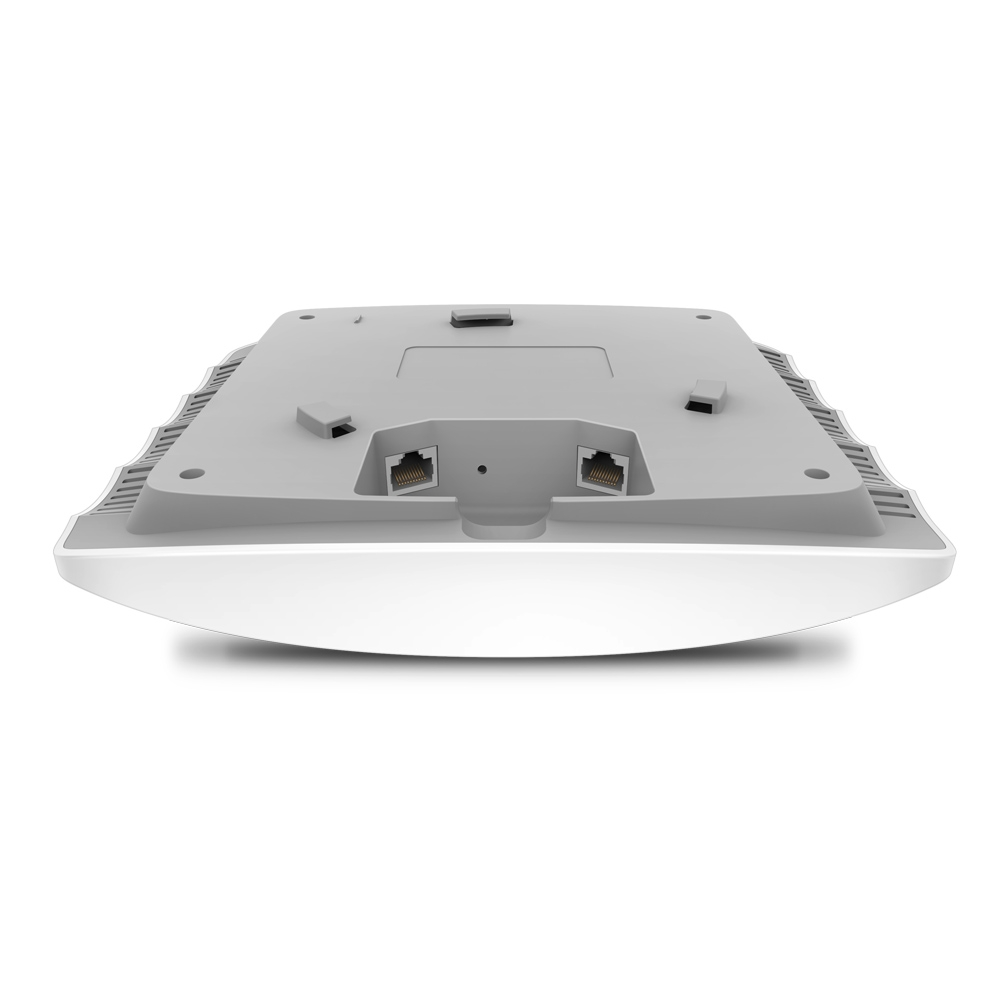

Interface 2 × Gigabit Ethernet (RJ-45) Port
(One port supports IEEE802.3af/at PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply • 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in
(206 × 182 × 37 mm)
Antenna Type Internal Omni
• 2.4 GHz: 3× 3.5 dBi
• 5 GHz: 3× 4 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate • 5 GHz: Up to 1300 Mbps
• 2.4 GHz: Up to 450 Mbps
Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power 2.4GHz: 24 dBm max.
5GHz: 24 dBm max.
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents • AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD
• Gigabit Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Customers who bought this item also bought
€8.39 excl tax
Availability: 61
€0.59 excl tax
Availability: 26
€10.08 excl tax
Availability: 52
€16.86 excl tax
Availability: 23

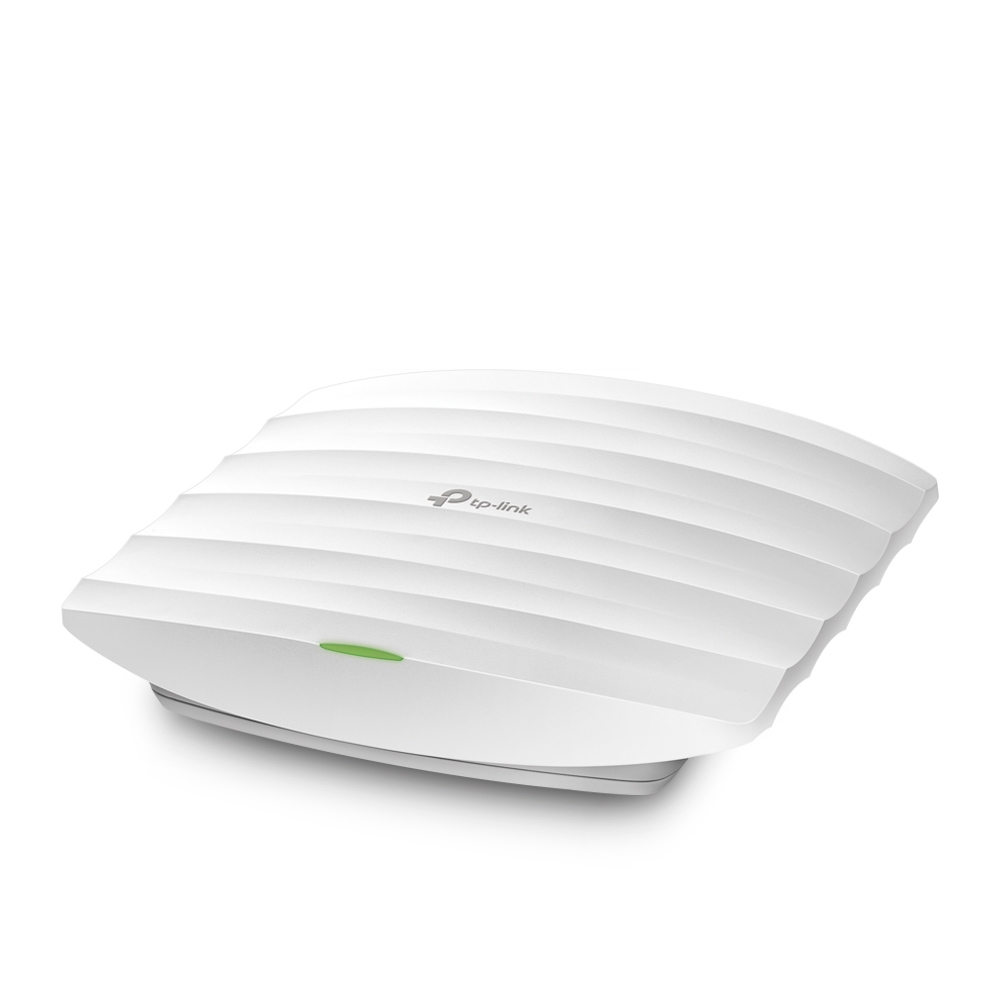

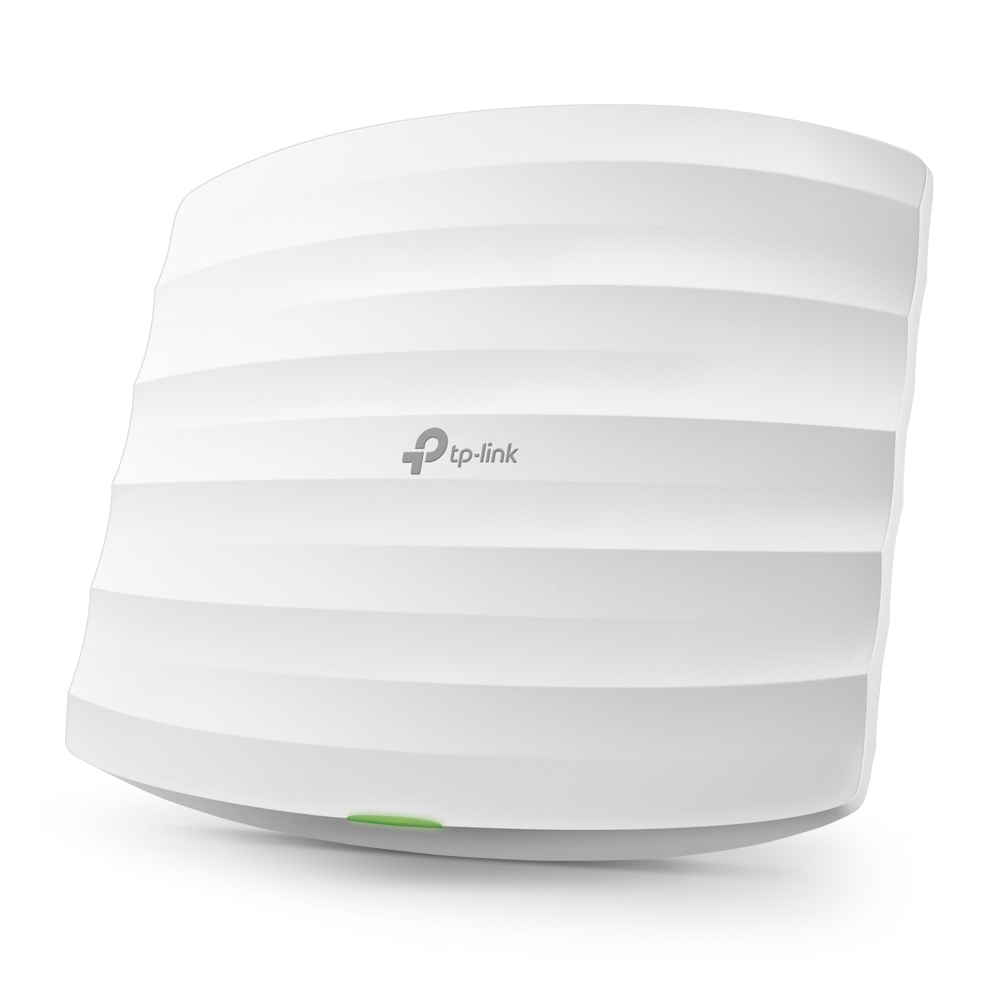

TP-Link EAP265 HD AC1750 Wireless MU- MIMO Gigabit Ceiling Mount Access Point
