HARDWARE FEATURES

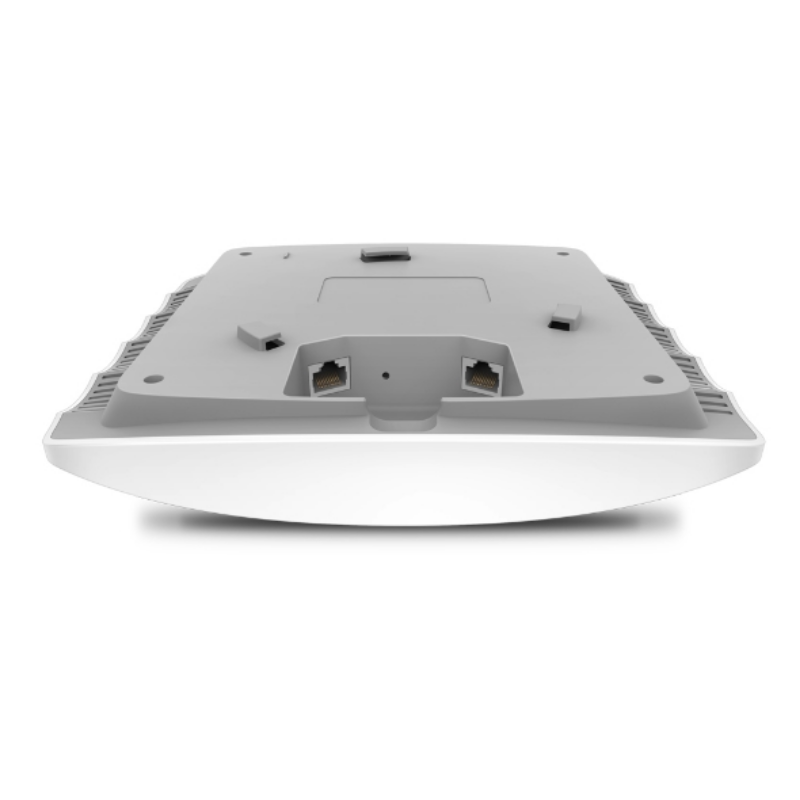

Interface 2 × Gigabit Ethernet (RJ-45) Ports
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE or
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in.
(206 × 182 × 37 mm)
Antenna Type Internal Omni
2.4GHz: 3 × 4dBi
5GHz: 3 × 4dBi
Mounting Ceiling or Wall Mount
(Mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO (Wave 2)
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power FCC:
≤25dBm(2.4GHz)
≤27dBm(5GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes
omada.tplinkcloud.com
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
