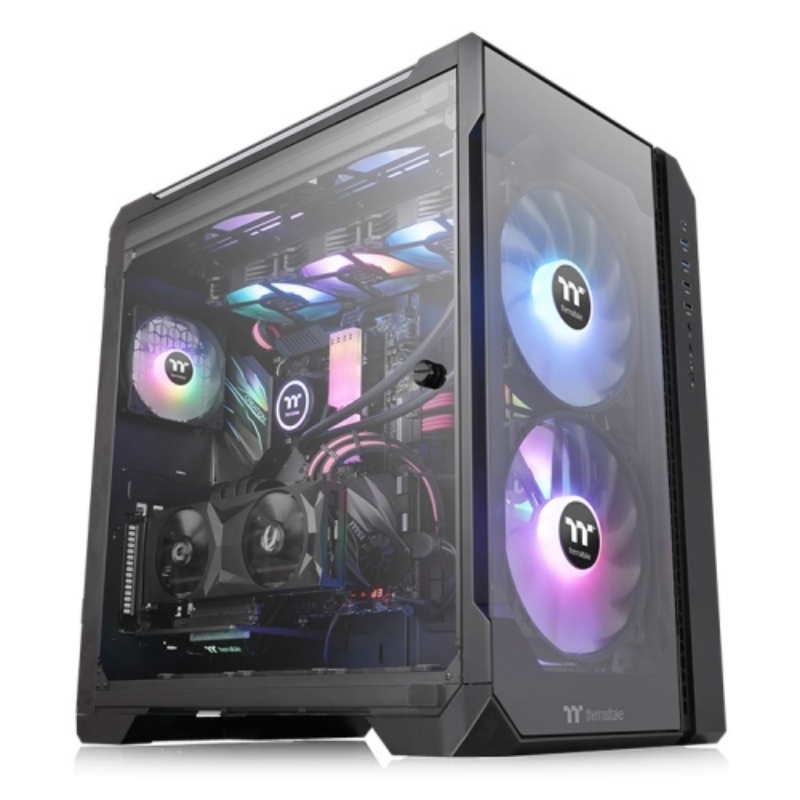

SERIES View

MODEL View 51 TGCASE

TYPE Full Tower

DIMENSION (H X W X D)550 x 315 x 525 mm
(21.65 x 12.4 x 20.67 inch)

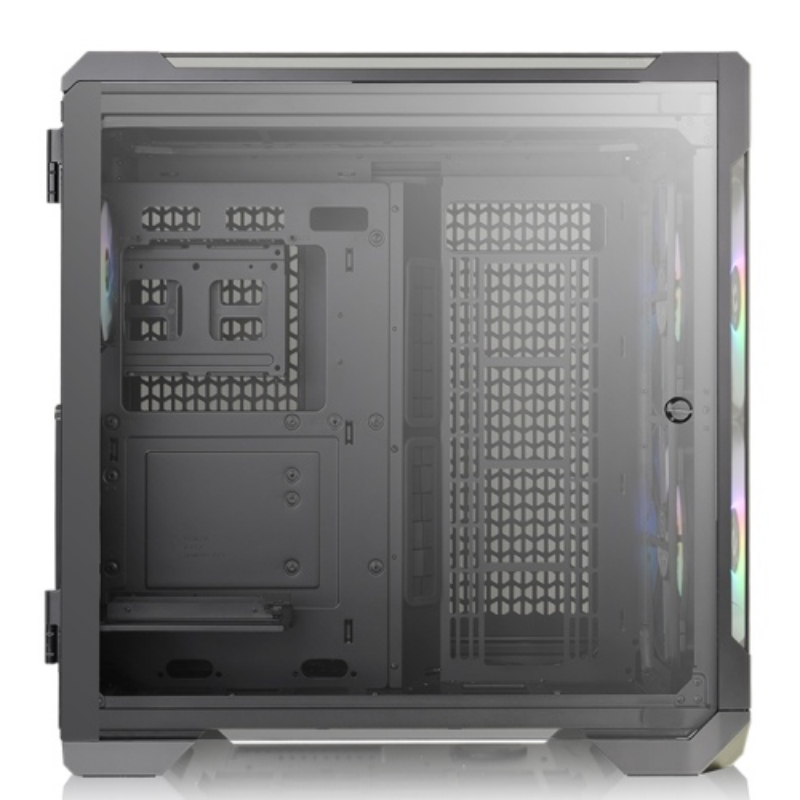

NET WEIGHT14.95 kg / 32.96 lbSIDE PANEL3 x Tempered Glass (4mm thickness)COLORExterior & Interior : BlackMATERIALSPCCCOOLING SYSTEMFront (intake) :

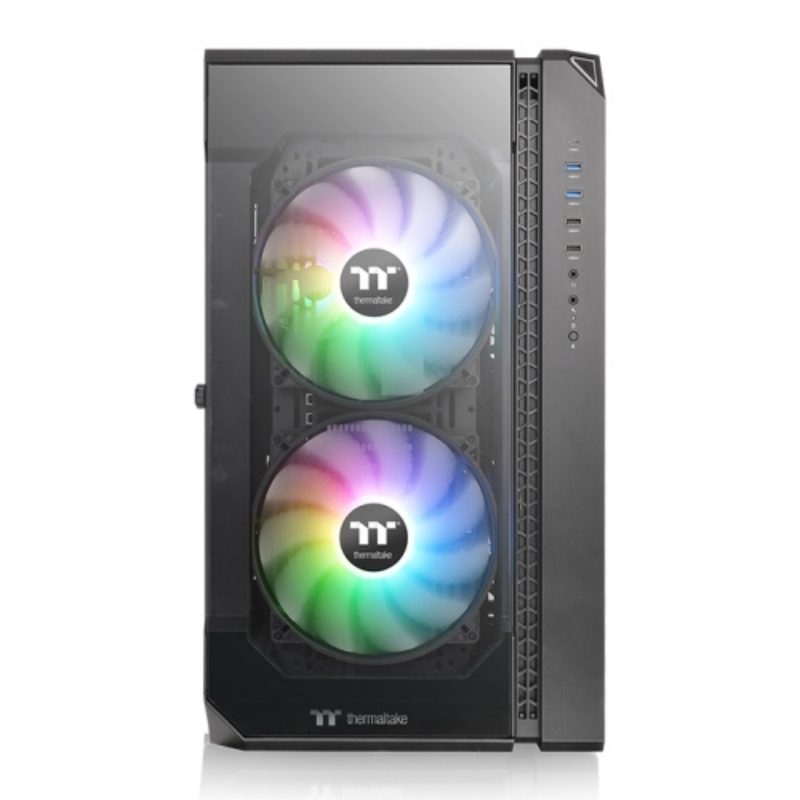

2 x 200 x 200 x 30mm Addressable RGB fan
(Fixed 600rpm, 24dBA)
Rear (exhaust) :
1 x 120 x 120 x 25mm Addressable RGB fan
(Fixed 1000rpm, 27.2 dBA)


DRIVE BAYS
-ACCESSIBLE
-HIDDEN
2 x 2.5’’ (With HDD Bracket)
2 x 3.5’’ or 2.5’’ (With HDD Cage)

EXPANSION SLOTS8MOTHERBOARDS6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O PORT1 x USB 3.1 (Gen 2) Type C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD Audio, 1 x RGB ButtomPSUStandard PS2 PSU (optional)FAN SUPPORTFront:
2 x 200mm or 1 x 200mm
3 x 140mm or 2 x 140mm or 1 x 140mm
3 x 120mm or 2 x 120mm or 1 x 120mm
Top:
2 x 200mm or 1 x 200mm
3 x 140mm or 2 x 140mm or 1 x 140mm
3 x 120mm or 2 x 120mm or 1 x 120mm
Rear:
1 x 120mm ,
Right:
3 x 120mm or 2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Bottom:
3 x 120mm or 2 x 120mm or 1 x 120mmRADIATOR SUPPORTFront:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Top:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Right:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Bottom:
1 x 360mm or 1 x 240mm or 1 x 120mmCLEARANCECPU cooler height limitation: 175mm
VGA length limitation: 300mm(With Water Pump)
440mm(Without Water Pump)
PSU length limitation: 200mm
