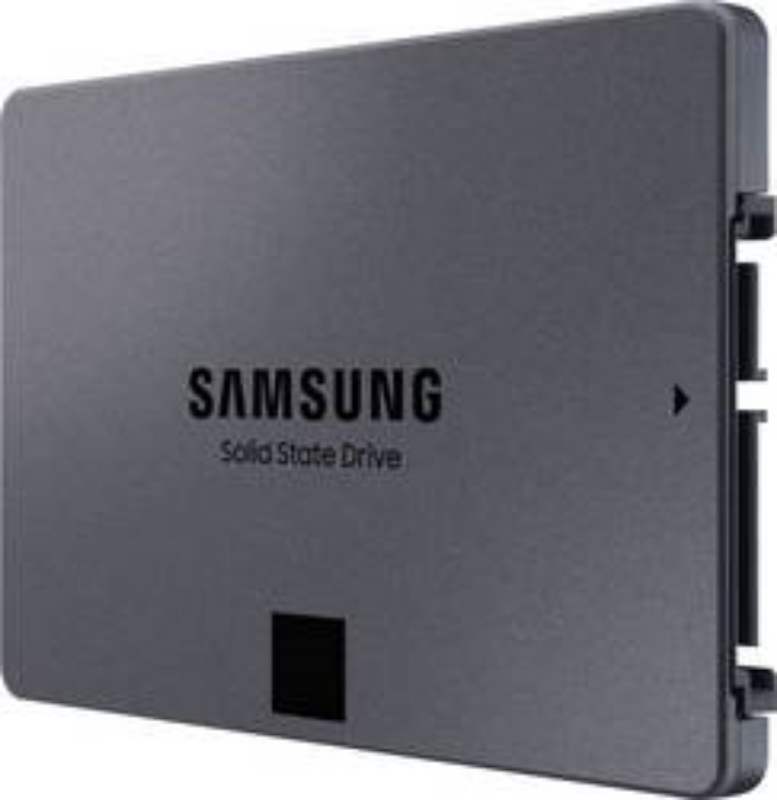

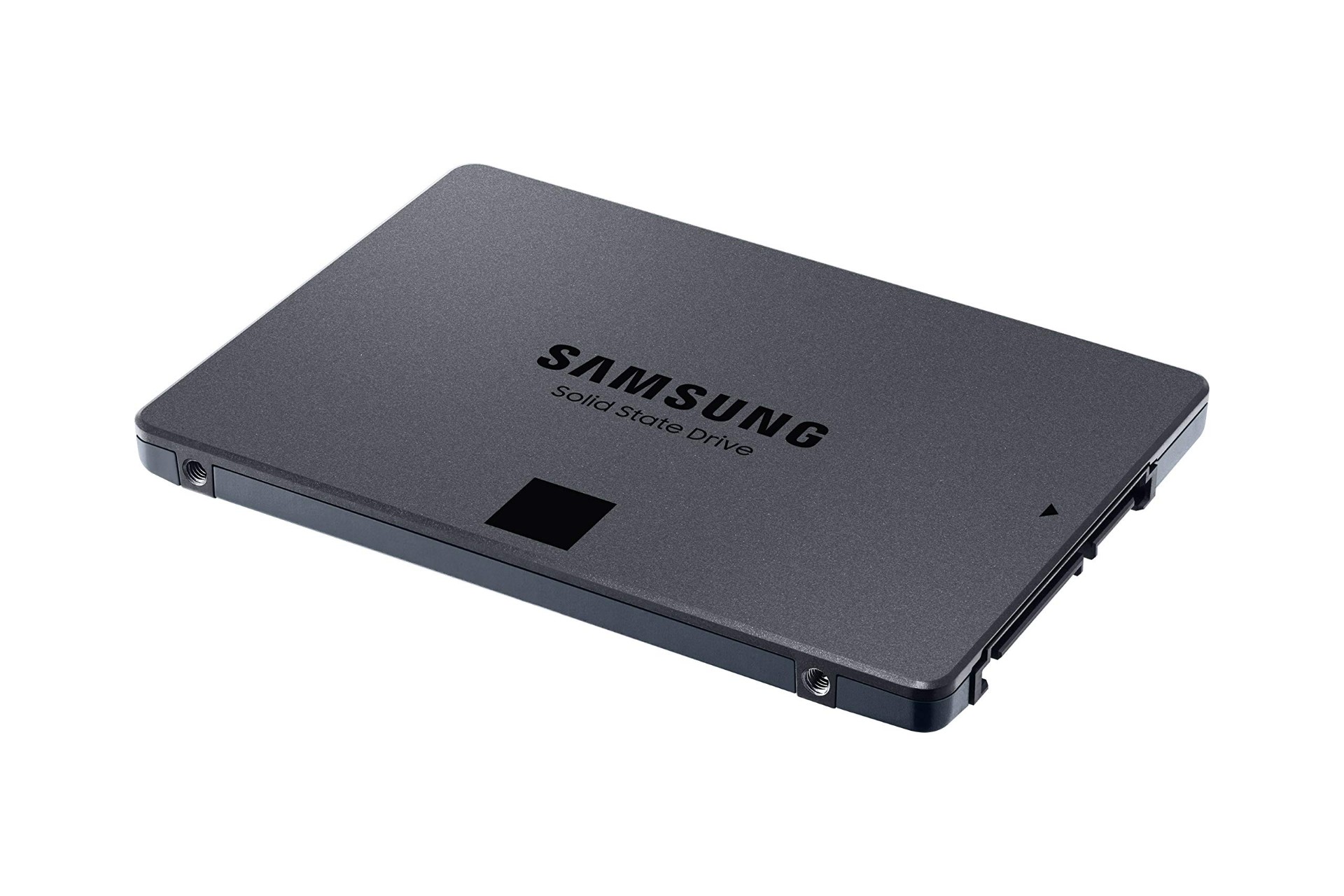

Go big, do more The 870 QVO is Samsung’s latest 2nd gen. QLC SSD and the largest of its kind that provides up to 8TB of storage. It offers an incredible upgrade for everyday PC users who want to ramp-up their desktop PC or laptop to the largest available storage in the market without compromising on performance.
Manufacturer: Samsung
SKU: CSS0058
Manufacturer part number: MZ-77Q2T0BW
Availability: 8 in stock
€163.14 excl tax

Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)

Weight Apporx. 46.0g Weight

Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Specifications Detail


Capacity
2,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor 2.5 inch

Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (Pack: WxHxD) 100 X 69.85 X 6.8 (mm)

Weight Apporx. 46.0g Weight

Storage Memory Samsung V-NAND 4bit MLC

Controller Samsung MKX Controller

Cache Memory Samsung 2 GB Low Power DDR4 SDRAM

TRIM Support TRIM Supported

S.M.A.R.T Support S.M.A.R.T Supported

GC (Garbage Collection) Auto Garbage Collection Algorithm

Encryption Support AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support World Wide Name supported

Device Sleep Mode Support Yes

Performance Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Write (4KB, QD32) Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Read (4KB, QD1)
Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Write (4KB, QD1) Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Environment
Average Power Consumption (system level)
Average: 3.0 W *Maximum: 5.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage 5V ± 5% Allowable voltage

Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)

Operating Temperature 0 - 70 ℃ Operating Temperature

Shock 1,500 G & 0.5 ms (Half sine)

Products specifications
Attribute nameAttribute value
Storage Form Factor2.5"
Storage Capacity2 TB
Consumption15w
