The PowerWalker VFI TG/TGB/TGS is a professional and versatile Online UPS solution for almost all single-phase applications (suitable for security systems for kiosks, ATMs and as well as high-level security systems, where additional software is not allowed (i.e. banking). The UPS is available in 3 different Variations: TG: ONLY with internal batteries for regular backup times TGB: with internal batteries and connection for external battery packs for extended autonomy times TGS: without internal batteries, but with a stronger Charger for external battery packs and big capacity batteries (non-series batteries)
Manufacturer: Powerwalker
SKU: PUP0137
Manufacturer part number: 10122106
Availability: Out of stock
€406.78 excl tax
GENERAL FEATURES
TypeOnline Single Phase (VFI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity3000VA / 2700W
Output Power Factor0.90
INPUT
Input Voltage Range176-300 VAC or 80-285 VAC in Bypass Mode
Max THDi≤5%
Frequency Range40Hz – 70Hz
Frequency (Synchronized Range)45Hz – 55Hz or 54Hz – 66Hz
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage220/230/240 VAC
THDv≤2% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)±2%
Frequency (Battery Mode)±0.05Hz

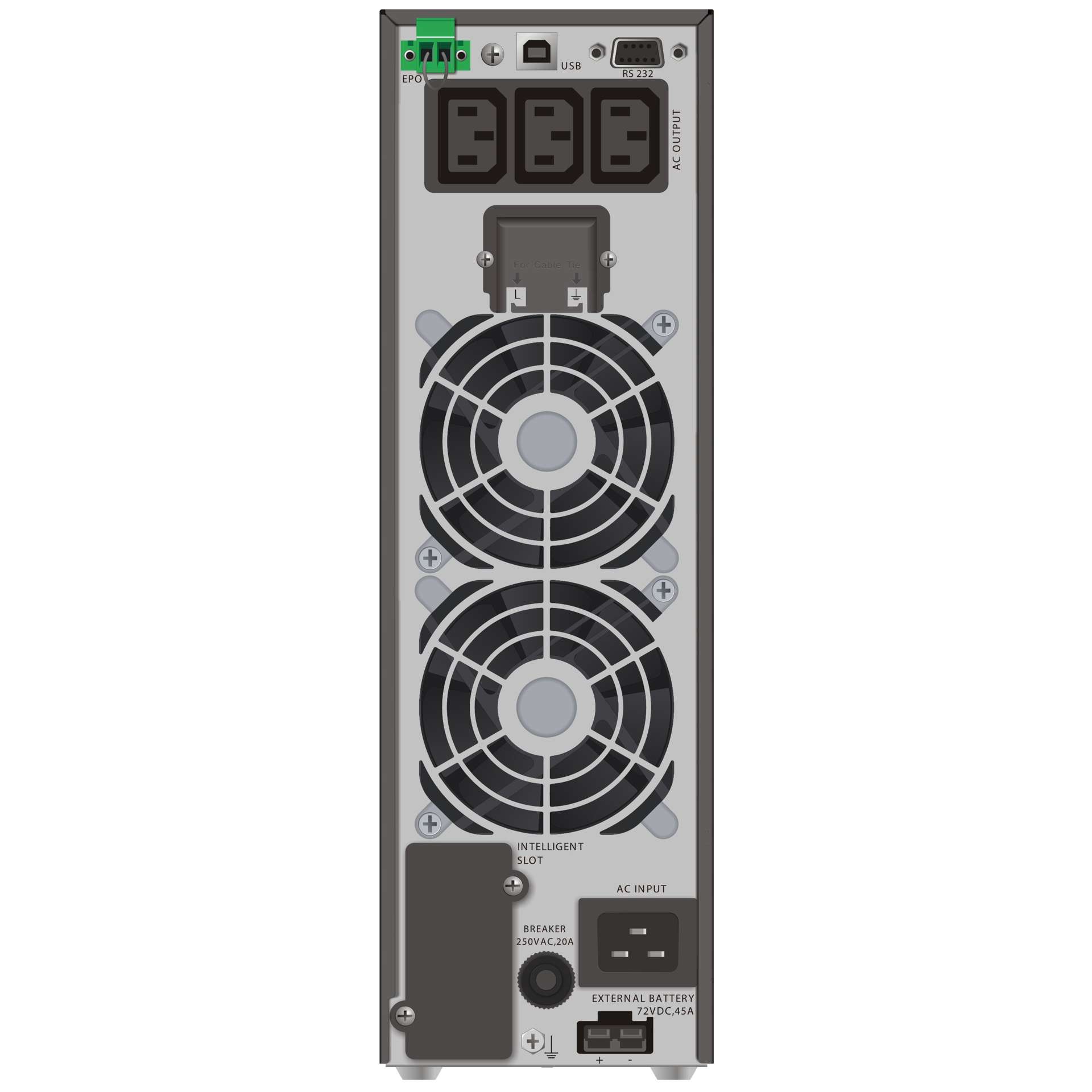

INPUT & OUTPUT CONNECTORS
Input ConnectorC20-UK
Output TypeIEC – UK
IEC C133
Terminal OutputYes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)90.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]4ms
Load Crest Ratio3:1
Additional FeaturesECO Mode Available, CVCF Mode Available, LCD Display, Battery Pack Available, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, External Battery Compatible
IEC 62040-3 classificationVFI-SS-111
BATTERIES AND AUTONOMY
BatteriesBatteries are not Included
DC Voltage6x 12.0V
Additional Batteries InformationDesigned to work with External Batteries
Charger1.5A, 3A, 4.5A, 6A
External Battery PackYes
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software, RS-232, Management Card Slot
SoftwareWinPower
ENVIRONMENT
Noise Level< 50dB
Fan LogicAlways on, Automatic Speed Control
Temperature0°C – 40°C
Humidity0% – 95% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentInput Power Cable, Manual, 2x IEC Cable, USB Cable, UPS
Manual LanguagesDE, PL, EN
EAN4260074979411
Product Dimensions (DxWxH) [mm]390 x 102 x 328 mm
Product Weight [kg]6.2
Package Dimensions (DxWxH) [mm]488 x 194 x 456 mm
Package Weight [kg]7.0
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
UPS TypeOnline
Output ConnectionsC13
UPS PowerUp to 3000 VA
UPS FeaturesTower, LCD, Pure Sinewave

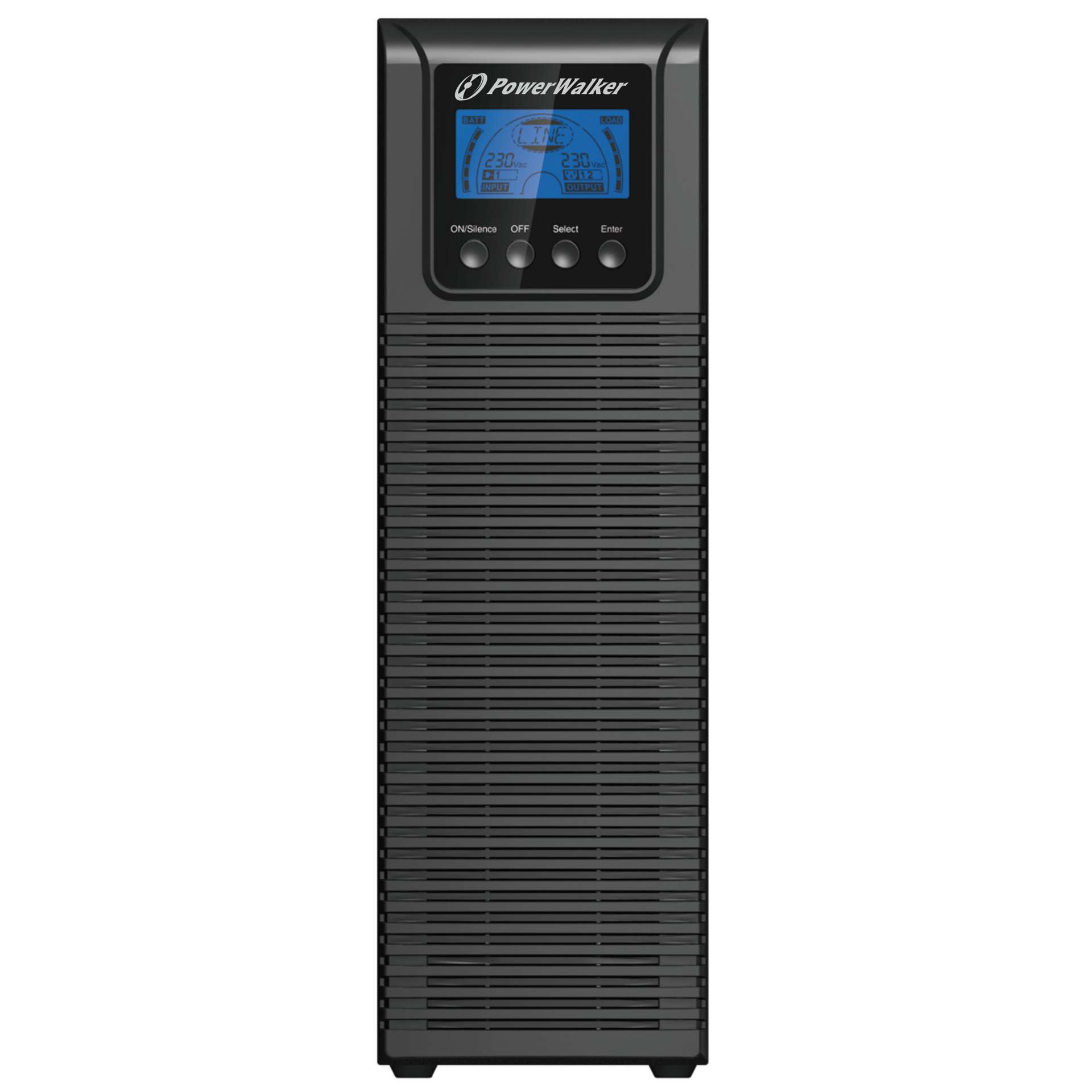

PowerWalker VFI 3000 TGS UK Art No. 10122106
