GENERAL FEATURES
Type Online Single Phase (VFI)
Phases (IN-OUT) 1-1

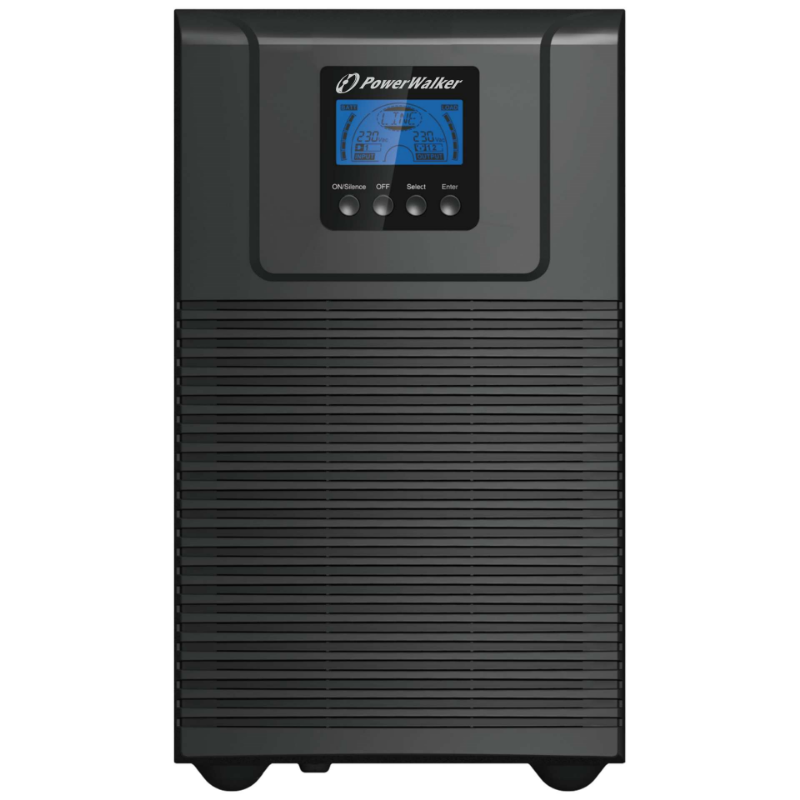

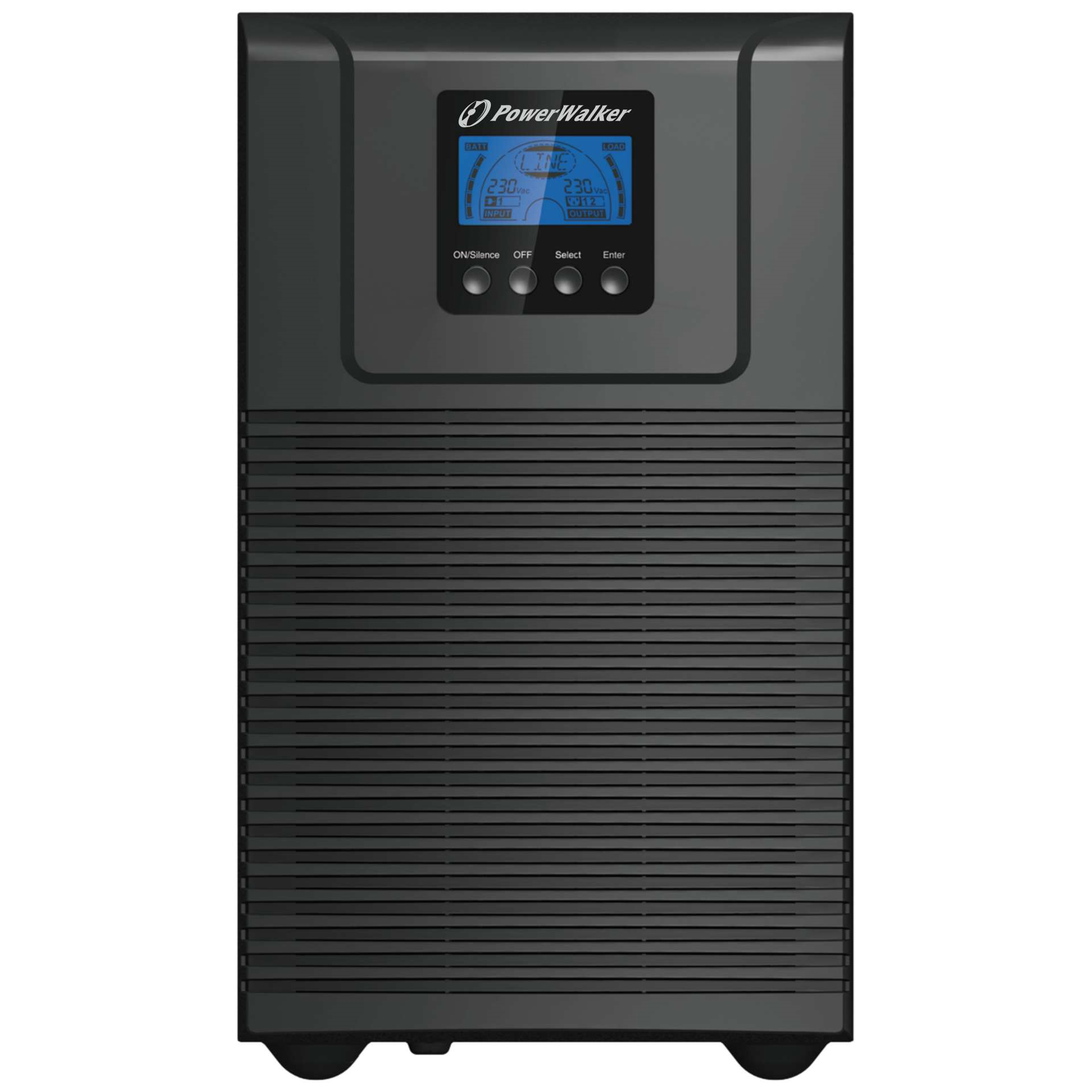

Form Factor Tower
Power Capacity 3000VA / 2700W
Output Power Factor 0.90
INPUT
Input Voltage Range 176-300 VAC or 80×285 VAC in bypass mode
Max THDi ≤5%
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 45Hz – 55Hz or 54Hz – 66Hz
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 220/230/240 VAC
THDv ≤2% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±2%
Frequency (Battery Mode) ±0.05Hz

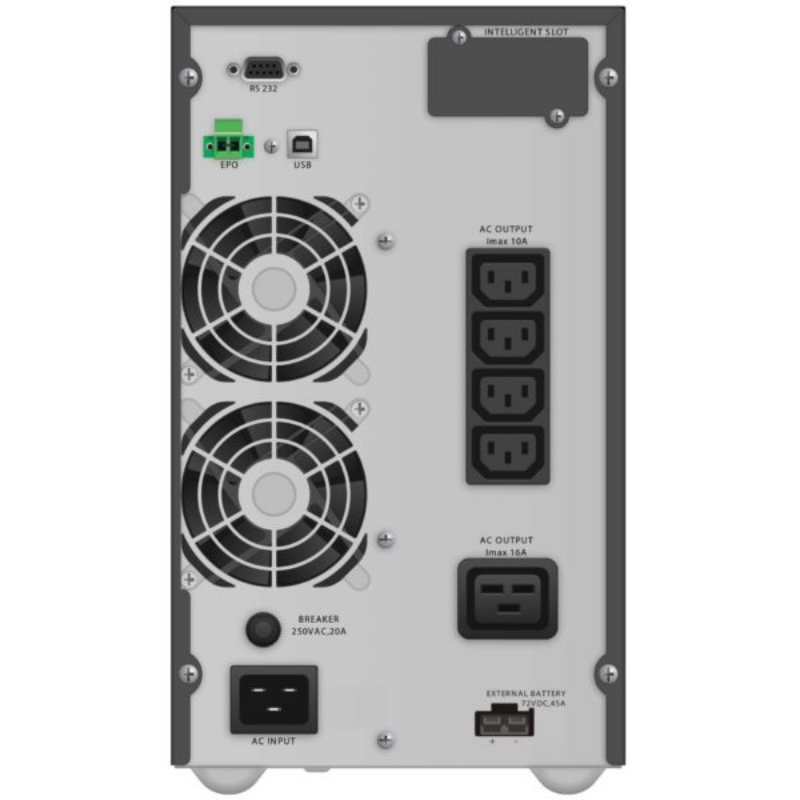

INPUT & OUTPUT CONNECTORS
Input Connector C20-UK
Output Type IEC – UK
IEC C13 4
IEC C19 1
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 90.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] 10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 4ms
Load Crest Ratio 3:1
Additional Features ECO Mode Available, CVCF Mode Available, LCD Display, Battery Pack Available, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification VFI-SS-111
BATTERIES AND AUTONOMY
Batteries 6x 12.0V/9.0Ah
DC Voltage 6x 12.0V
Recharge Time 4h to 90%
Full Load Backup Time [min] 3.9
Half Load Backup Time [min] 11.7
Charger 1.5A
External Battery Pack Yes
COMMUNICATION
Communication USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software WinPower
ENVIRONMENT
Noise Level < 50dB
Fan Logic Always on, Automatic Speed Control
Temperature 0°C – 40°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content Input Power Cable, Manual, 2x IEC Cable, USB Cable, UPS
Manual Languages DE, PL, EN
EAN 4260074980370
Product Dimensions (DxWxH) [mm] 399 x 190 x 328 mm
Product Weight [kg] 22.2
Package Dimensions (DxWxH) [mm] 500 x 324 x 464 mm
Package Weight [kg] 26.0
Pcs. per Outer Carton 1
Pcs. per Layer 7
Pcs. per Pallet 14
Pcs. per Pallet [Oversized] 28
