GENERAL FEATURES
Type Online Single Phase (VFI)
Phases (IN-OUT) 1-1

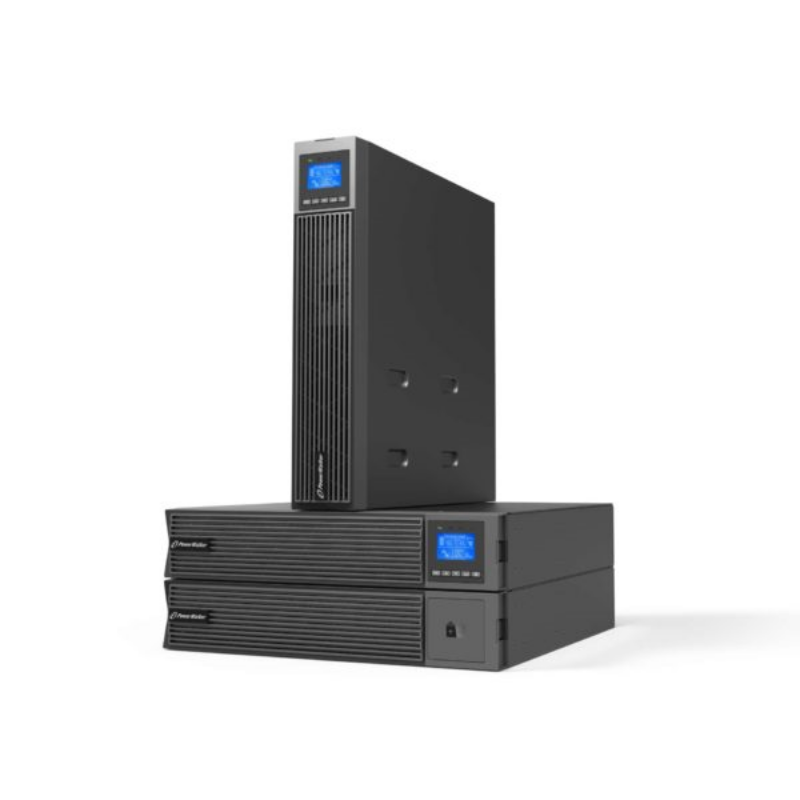

Form Factor Rack, Tower
Rack Units [U] 2U
Power Capacity 2000VA / 2000W
Output Power Factor 1
INPUT
Input Voltage Range 160-300V 100% load, 110-160V derating to 50% load linearly
Max THDi ≤5%
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 45Hz – 55Hz or 54Hz – 66Hz @ load>60%
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 200/208/220/230/240 VAC
(derating 10% @ 208V, derating 20% @ 200V)
THDv ≤1% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±1%
Frequency (Battery Mode) ±0.2Hz

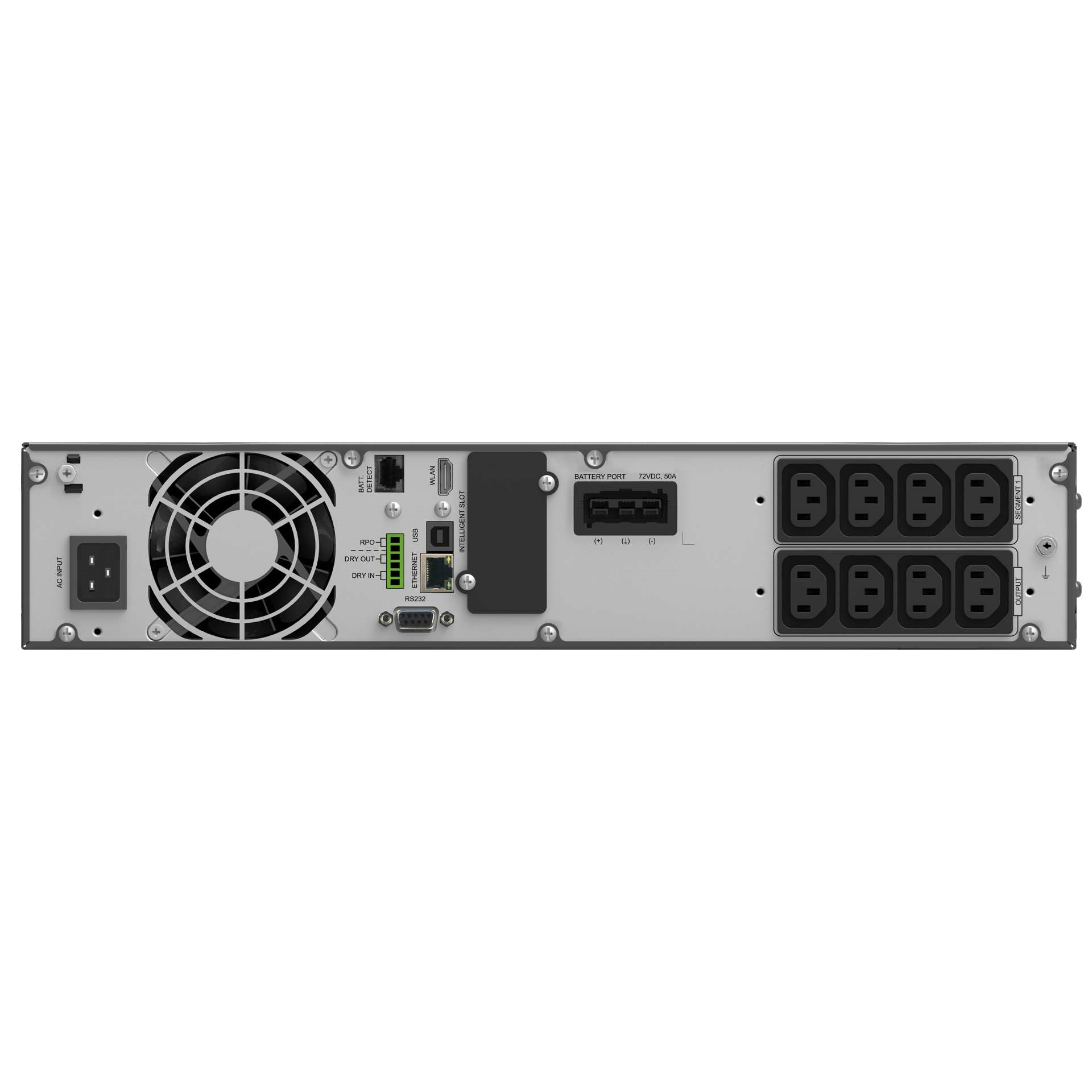

INPUT & OUTPUT CONNECTORS
Input Connector C20-UK
Output Type IEC – UK
IEC C13 8
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 93.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] 10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 4ms
Load Crest Ratio 3:1
Additional Features CVCF Mode Available, Potential Equalization Screw, Hot-Swappable Batteries, OBM – Optimized Battery Management, LCD Display, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, EBM – External Battery Module – Auto Detection
IEC 62040-3 classification VFI-SS-311
BATTERIES AND AUTONOMY
Batteries 6x 12.0V/7.0Ah
DC Voltage 6x 12.0V
Recharge Time 3h to 90%
Full Load Backup Time [min] 4.4
Half Load Backup Time [min] 12.5
Charger 1.5A
External Battery Pack Yes
COMMUNICATION
Communication Dry contact, RS-232, WLAN Port – for Internet Connection, Management Card Slot, RJ-45 – for Internet Connection
Software WinPower
ENVIRONMENT
Noise Level < 50dB
Fan Logic Always on, Automatic Speed Control
Temperature 0°C – 40°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content UPS, Input Power Cable, 2x IEC Cable, USB Cable, Tower Holder, Manual, Cable Locker, Rack Ears
Manual Languages DE, FR, EN
EAN 4260074983166
Product Dimensions (DxWxH) [mm] 600 x 438 x 86 mm
Product Weight [kg] 23.3
Package Dimensions (DxWxH) [mm] 780 x 580 x 240 mm
Package Weight [kg] 27.3
