Type Online
Power capacity 2000VA / 1600W
Output Power Factor 0.80
Input
Input Voltage Range 110-300 VAC at 50% load
160-280 VAC at 100% load
Input PF ≥ 0.99 at full load
Frequency Range 40Hz - 70Hz (self-adaptive to 50/60Hz)
Frequency (Synchronized Range) 47Hz - 53Hz or 57Hz - 63Hz
Output
Nominal Output Voltage 200/208/220/230/240 VAC
Pure Sine Wave Yes
THDv ≤3% Full Linear Load; ≤6% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,3Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support Yes
Overload Capacity N/A
External Battery Connection Yes
Charger 1A
Fan Logic Always on, automatic speed control
LCD Indicators UPS status, Load level, Battery level, Input/Output voltage, Discharge Timer, fault conditions
Efficiency
LINE mode full Load 89.0%
BATTERY mode full Load 87.0%
Batteries and autonomy time
Batteries 4x 12V/9Ah
DC Voltage 4 x 12V
Recharge Time 9h to 90%
Full Load Backup Time 4min
Half Load Backup Time 12min

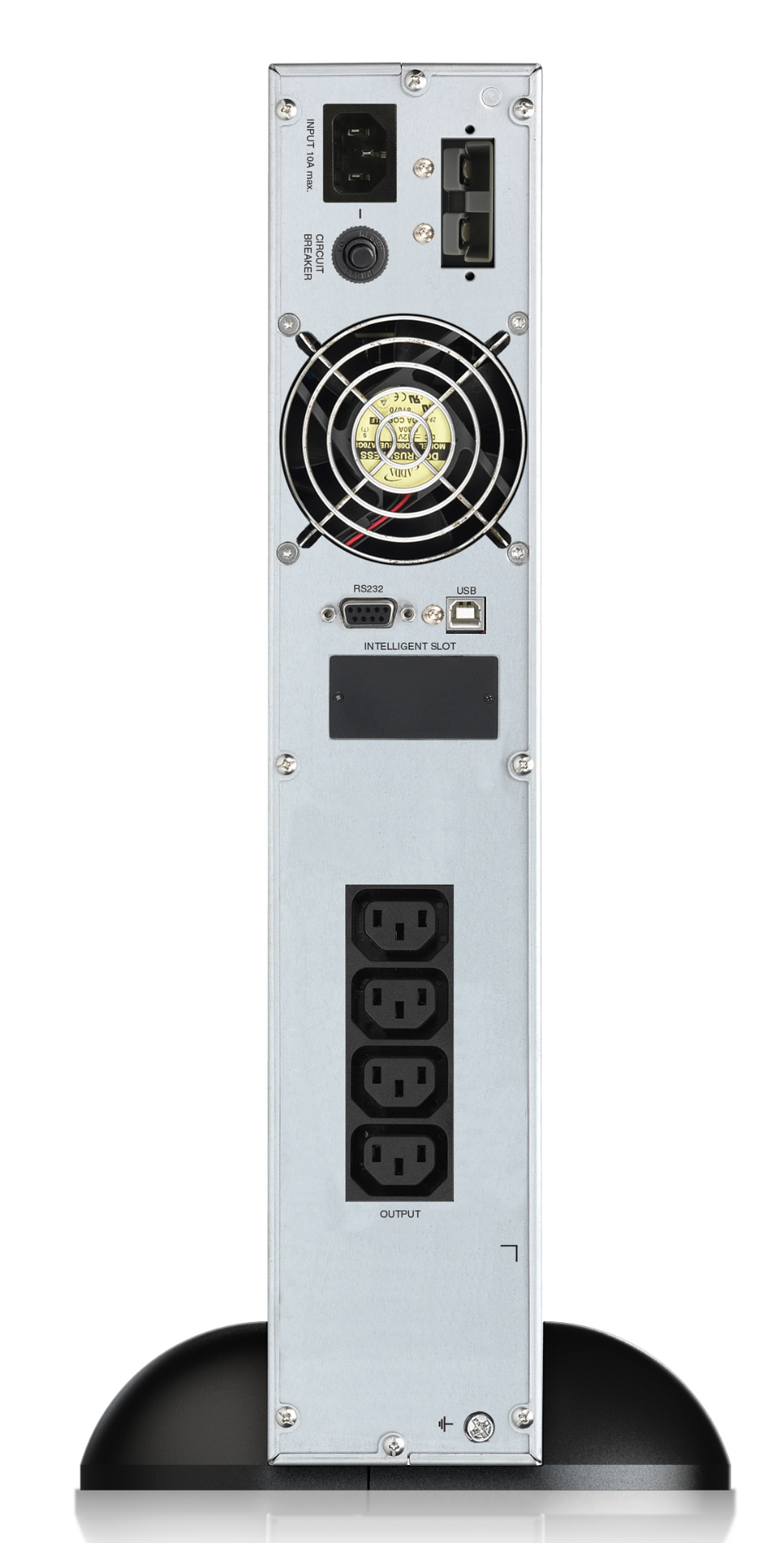

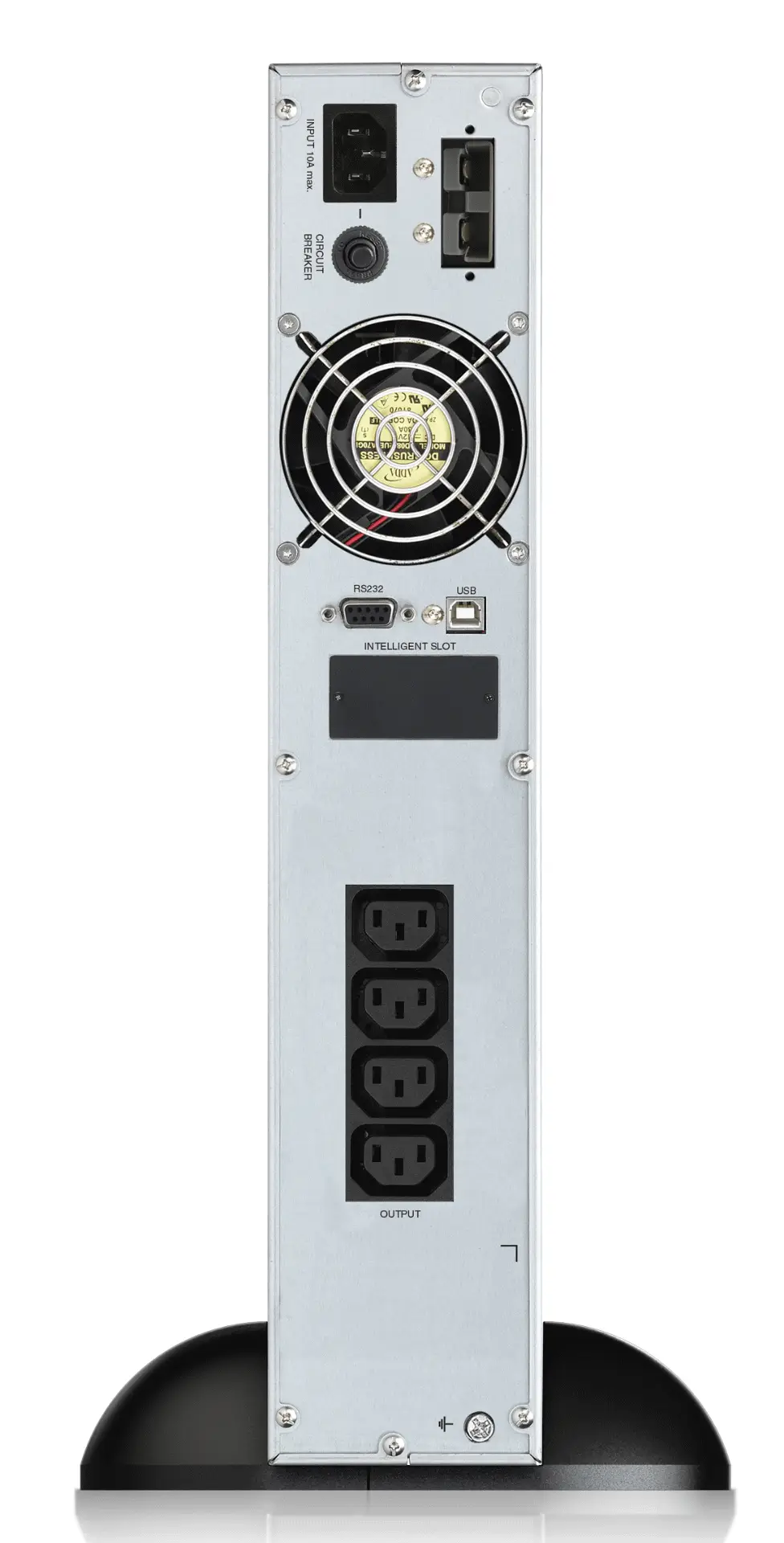

Connections and communication
IEC C13 Outlet 4
Input C14-UK
Software ViewPower
USB port Yes
RS-232 Port Yes
Extension Slot Yes, 1
Environment
Noise Level < 50dB
Temperature 0°C – 40°C
Humidity 20% - 90% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-111
Package Content UPS, Manual, USB Cable, Input Power Cable, Tower Holder, Rack Ears
Manual Languages EN/DE/PL
EAN 4260074977936
Width 438 mm
Height 88 mm
Depth 410 mm
Weight 19 kg
Giftbox - Width 600 mm
Giftbox - Height 240 mm
Giftbox - Depth 760 mm
Giftbox - Weight 20 kg
Pcs. per box 1
