| GENERAL FEATURES |
| Type | Online Three Phase (VFI) |
| Phases (IN-OUT) | 3-1 |
| Form Factor | Rack, Tower |
| Rack Units [U] | 3U |
| Power Capacity | 10000VA / 10000W |
| Output Power Factor | 1.00 |
| INPUT |
| Input Voltage Range | 190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load |
| Max THDi | < 5% @ full linear load |
| Frequency Range | 40Hz – 70Hz |
| Frequency (Synchronized Range) | 46Hz – 54Hz or 56Hz – 64Hz |
| OUTPUT |
| Waveform | Pure Sine Wave |
| Nominal Output Voltage | 208/220/230/240VAC (L+N) |
| THDv | ≤2% @ 100% linear load, ≤4% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) | ±1% |
| Frequency (Battery Mode) | ±0.1Hz |

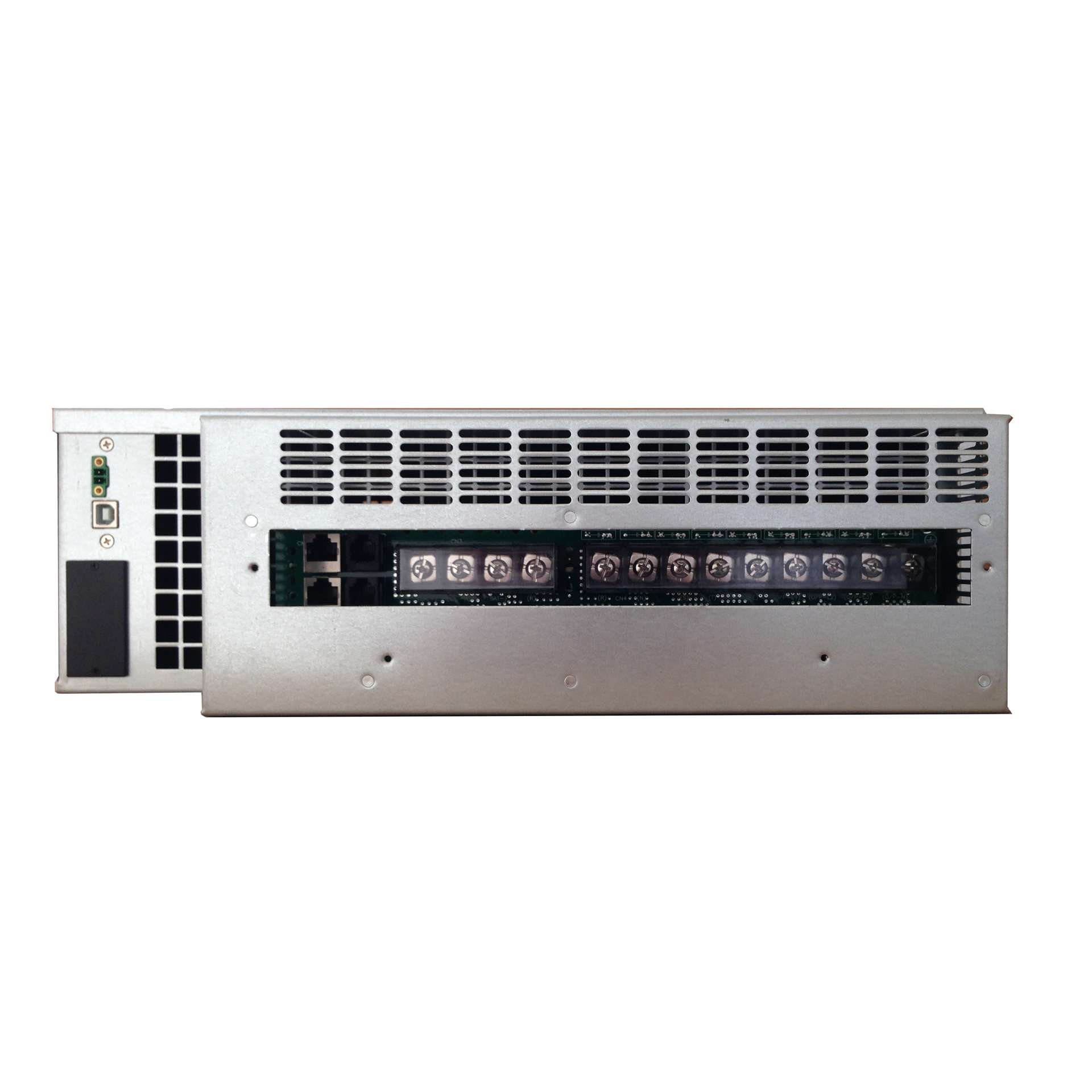

| INPUT & OUTPUT CONNECTORS |
| Input Connector | Terminal |
| Terminal Output | Yes |
| TECHNICAL DETAILS |
| LINE Mode Efficiency [%] (Full Load) | 93.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 0ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | 0ms |
| Load Crest Ratio | 3:1 |
| Additional Features | ECO Mode Available, Hot-Swappable Batteries, APFC – High Input PF, Unity Power Factor 1.0, Generator Compatible, EPO – Emergency Power Off, Parallel Connectivity, LCD Display, Input Breaker, Output Breaker, Battery Pack Available, HID – Human Interface Device, Battery-Sharing |
| IEC 62040-3 classification | VFI-SS-111 |
| BATTERIES AND AUTONOMY |
| Batteries | Batteries are not Included |
| DC Voltage | 32x 12.0V |
| Additional Batteries Information | Designed to work with External Batteries |
| Adjustable Batteries in String | 32-40 |
| Charger | 4A |
| External Battery Pack | Yes |
| COMMUNICATION |
| Communication | RS-232, USB Type B – for Monitoring Software |
| Software | ViewPower |
| Parallel Operation [Units] | 10 |
| ENVIRONMENT |
| Noise Level | < 55dB |
| Fan Logic | Always on, automatic speed control |
| Temperature | 0°C – 40°C |
| Humidity | 0% – 95% RH (non-condensing) |
| IP | IP 20 |
| LOGISTICS |
| Package Content | Manual, UPS, Connector Box, Rack Kit |
| Manual Languages | EN |
| EAN | 4260074981674 |
| Product Dimensions (DxWxH) [mm] | 678 x 418 x 129 mm |
| Product Weight [kg] | 20.5 |
| Package Dimensions (DxWxH) [mm] | 870 x 580 x 250 mm |
| Package Weight [kg] | 27.5 |
| Addtional Packaging Information | The package includes a connector box (10131013) that its needed for the installation of the modules. |
| Pcs. per Outer Carton | 1 |
