K7S41GX2 FSB 333/266/200 MHz Integrated Mirage Graphics, DX7 Supports ASRock Instant Boot, Instant Flash, Intelligent Energy Saver ErP/EuP Ready
Manufacturer: Asrock
SKU: CMB0070
Availability: 12 in stock
€10.17 excl tax

CPU
- Socket 462 for AMD Sempron / Athlon / Athlon XP / Duron Processors
- FSB 333/266/200 MHz
Chipset
- Northbridge: SiS 741GX
- Southbridge: SiS 963L
Memory
- 2 x DDR DIMM slots
- Supports DDR 400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
BIOS
- 2Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
Graphics
- Integrated Mirage Graphics
- DirectX 7
- Max. shared memory 128MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
Audio
- 5.1 CH AC'97 Audio (C-Media CMI9739A Audio Codec)
LAN
- Realtek LAN PHY RTL8201EL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Slots
- 1 x AGP 8X/4X slot
- 1 x AMR slot
- 2 x PCI slots
Connector
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- CD in header
- AUX in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)

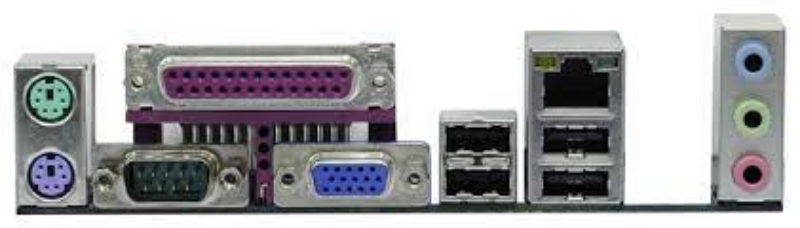

Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
OS
- Microsoft® Windows® 2000 / XP compliant
Certifications
- FCC, CE
- ErP/EuP Ready (ErP/EuP ready power supply is required)

Products specifications
Attribute nameAttribute value
PlatformAMD
Motherboard Form FactorATX
Memory TypeDDR
LGA/Socket TypeSocket 462
Memory Form FactorDimm
Consumption80w
