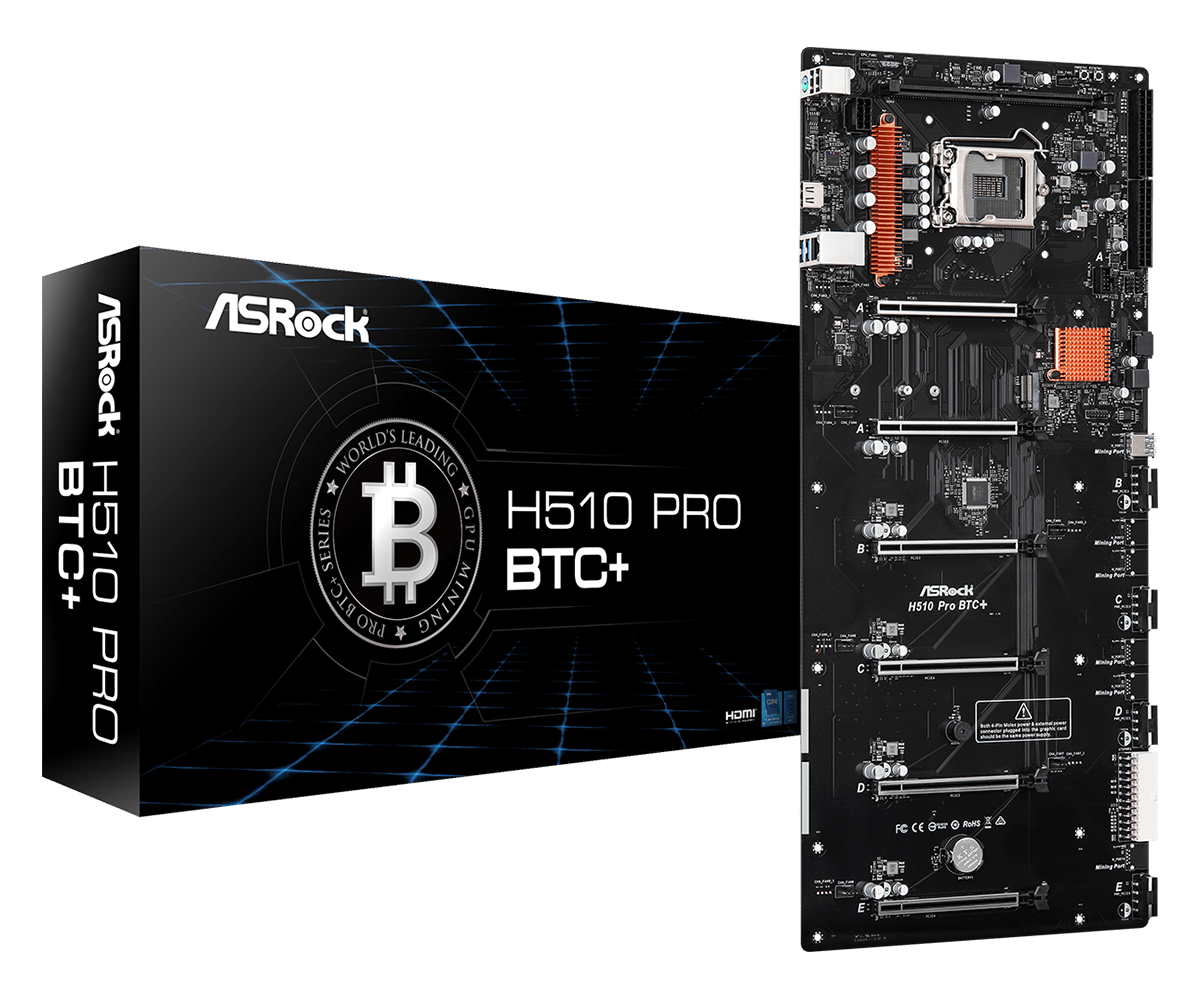

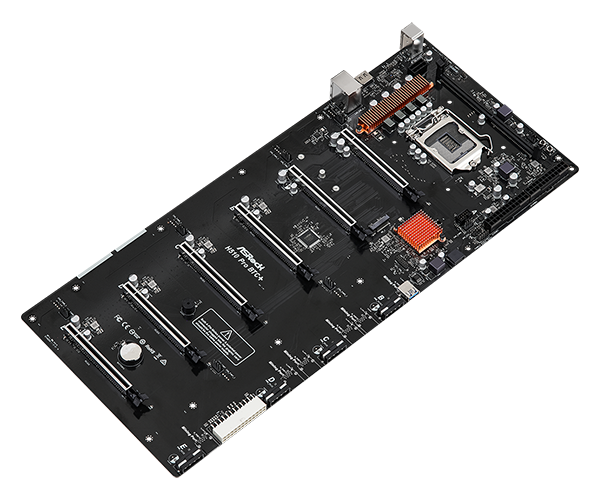

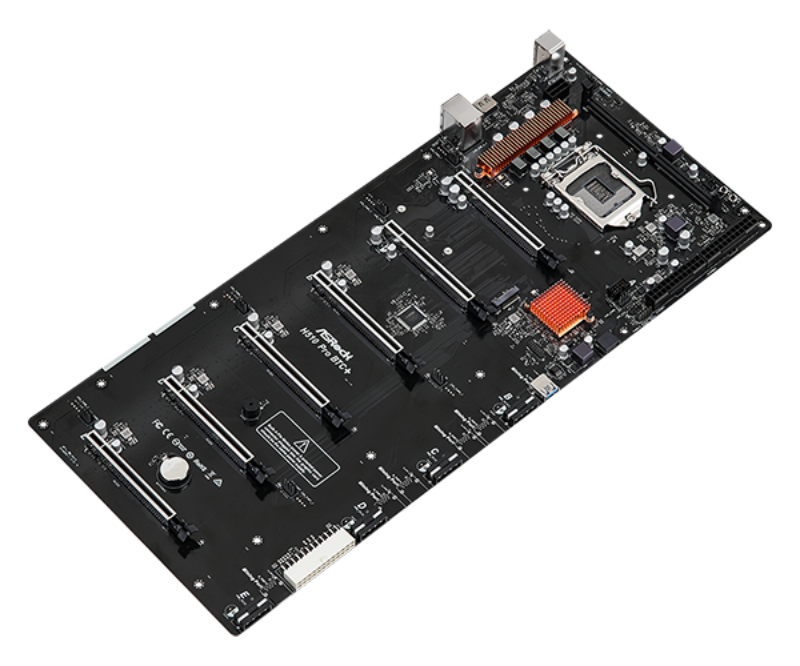

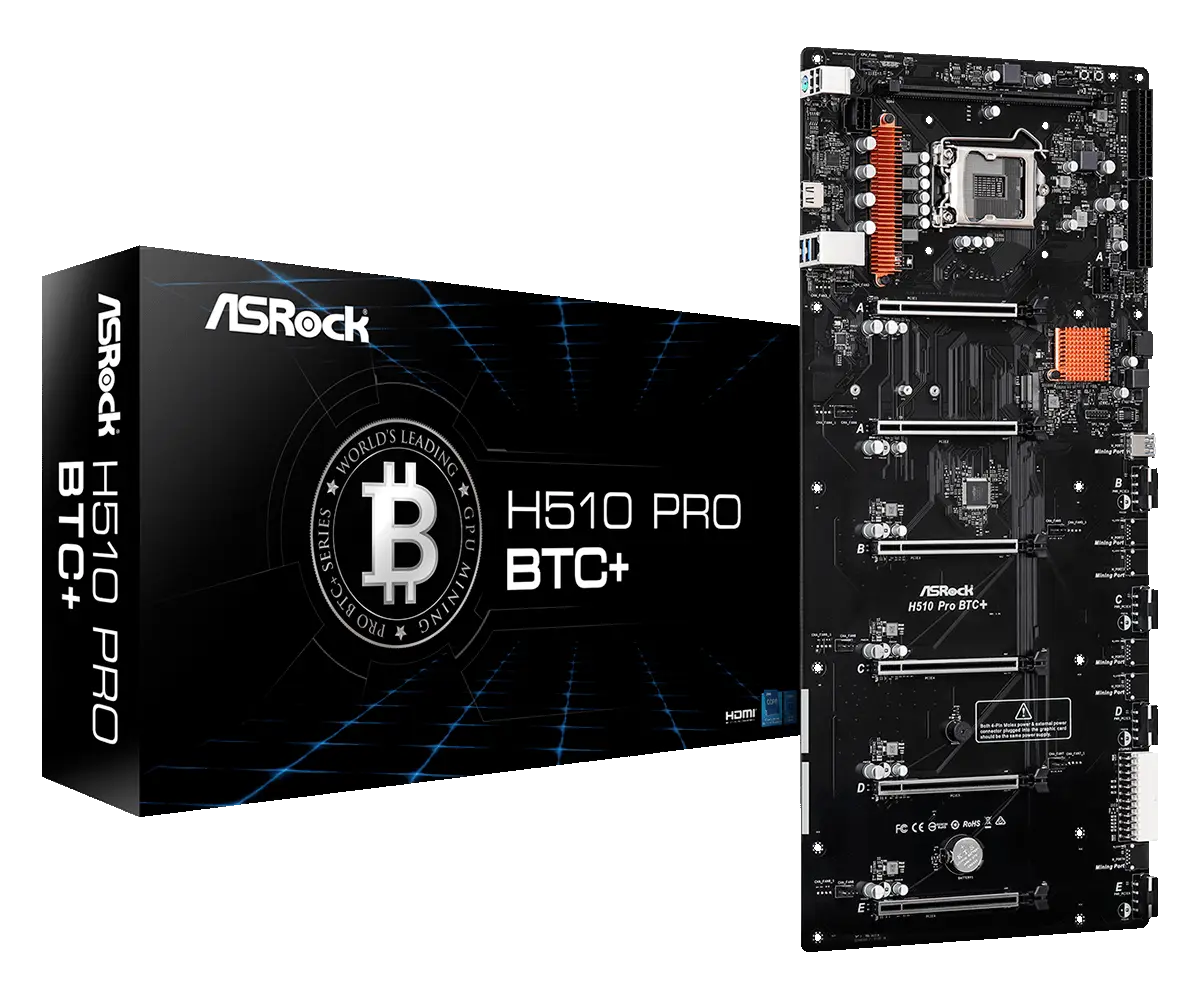

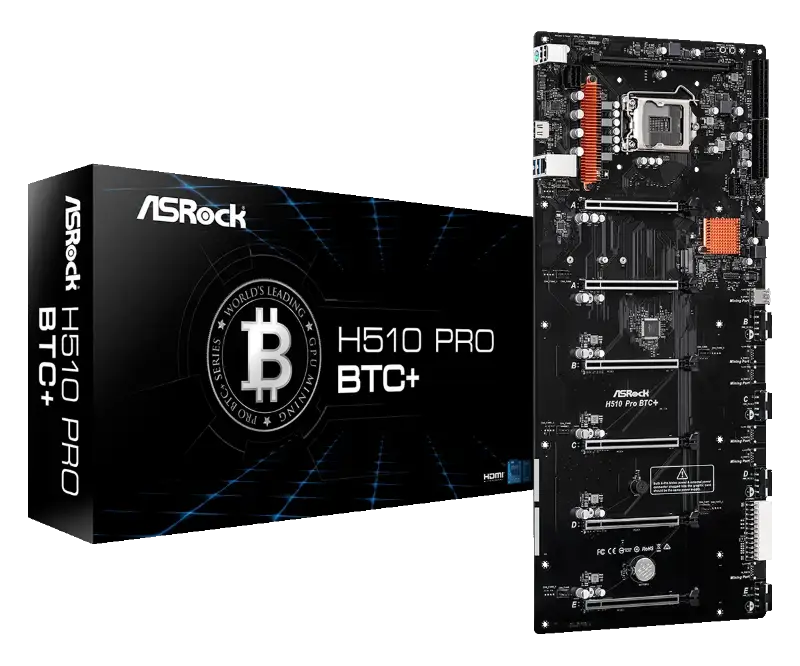

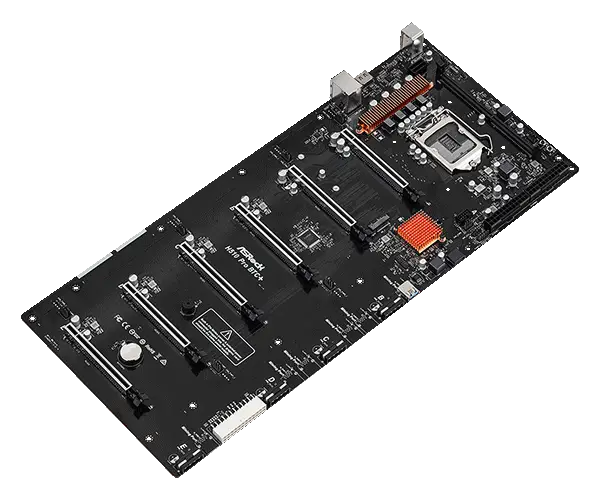

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors Supports DDR4 3200MHz Graphics Output: HDMI 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1) 1 SATA3, 1 M.2 (SATA3) 2 Rear USB 3.1 Gen1 Type-A 4 USB 2.0 Type-A (2 Rear, 2 Front) Intel® Gigabit LAN 2 Extra 24-pin ATX Power Connector Onboard Power On / Reset Button Fully Independent Power Rail
Manufacturer: Asrock
SKU: CMB0146
Manufacturer part number: 90-MXBGL0-A0UAYZ
Availability: 6 in stock
€196.36 excl tax

CPU
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
- Digi Power design
- 4 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® H510
Memory
- 1 x DDR4 DIMM Slot*
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory**
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB***
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*2GB DRAM per module is not supported.

**11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.

***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment
Graphics
- 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types.
Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1)
- 1 x Mining Port (M_Port1 at x1)*

*Support USB Type Riser kit
DO NOT install USB device on Mining Port (M_Port1), it is designed for x1 USB riser kit only.
Storage
- 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug
- 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module
Connector
- 1 x System Panel Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 8 x Chassis Fan Connectors (4-pin)**

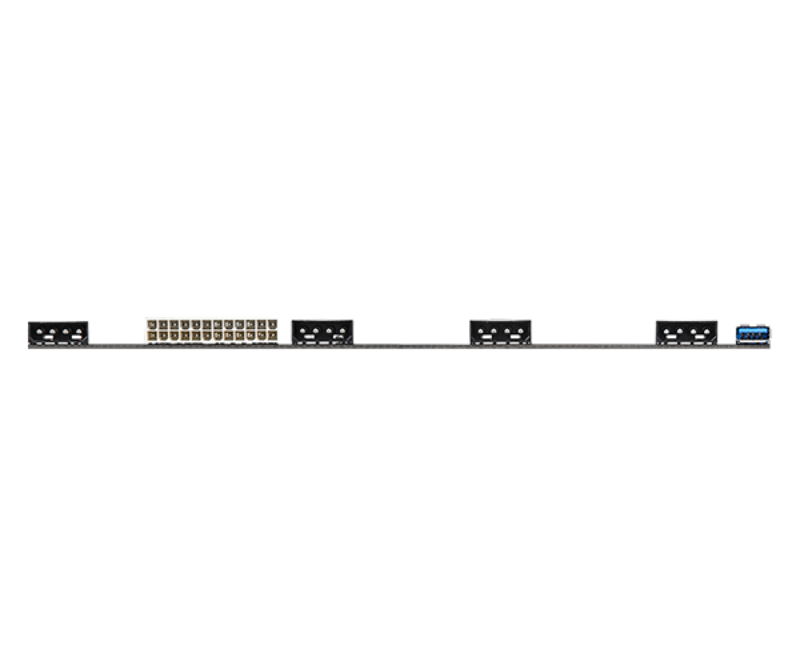

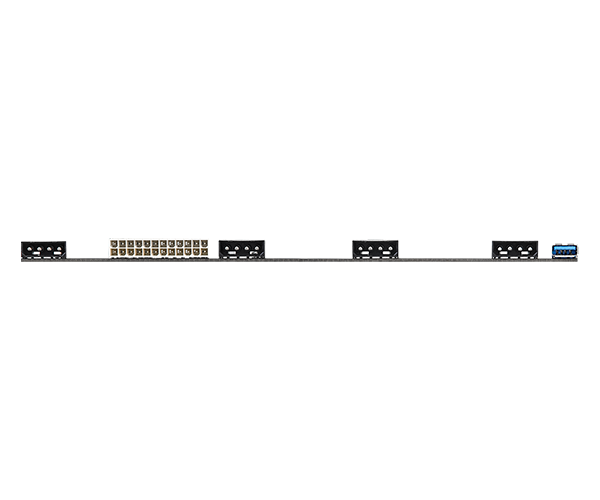

- 3 x 24 pin ATX Power Connectors
- 1 x 8 pin 12V Power Connector
- 4 x 4 pin PCIe Power Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x Power Button
- 1 x Reset Button

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**CHA_FAN3~CHA_FAN8 supports the chassis fan of maximum 2.5A (30W) fan power.
CPU_FAN1, CHA_FAN1 and CHA_FAN2 can adjust 4-pin fan speed.

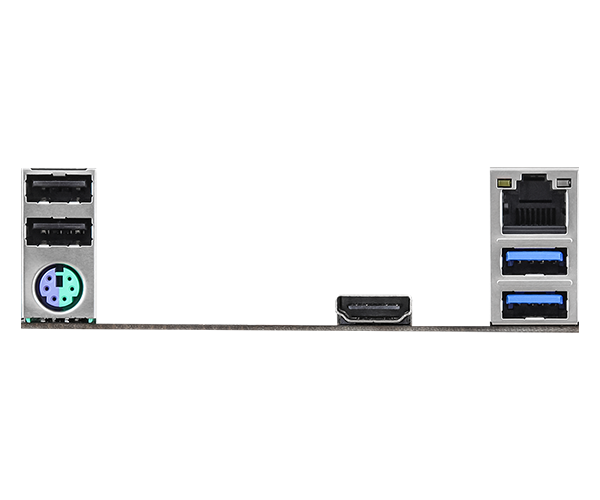

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Steel Slot
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD
- 1 x SATA Data Cable
- 1 x Screw for M.2 Socket
Hardware Monitor
- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor
- 20.1-in x 8.8-in, 50.1 cm x 22.4 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
- Linux: Ubuntu 16.04 LTS / Fedora 25*

*Linux O/S basic function support only, due to the compatibility of the Linux system itself, there is no guarantee that all functions are supported.
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Products specifications
Attribute nameAttribute value
LGA/Socket TypeLGA1200
PlatformIntel
Motherboard Form FactorE-ATX
Memory TypeDDR4
Memory Form FactorDimm
Consumption80w
Product tags

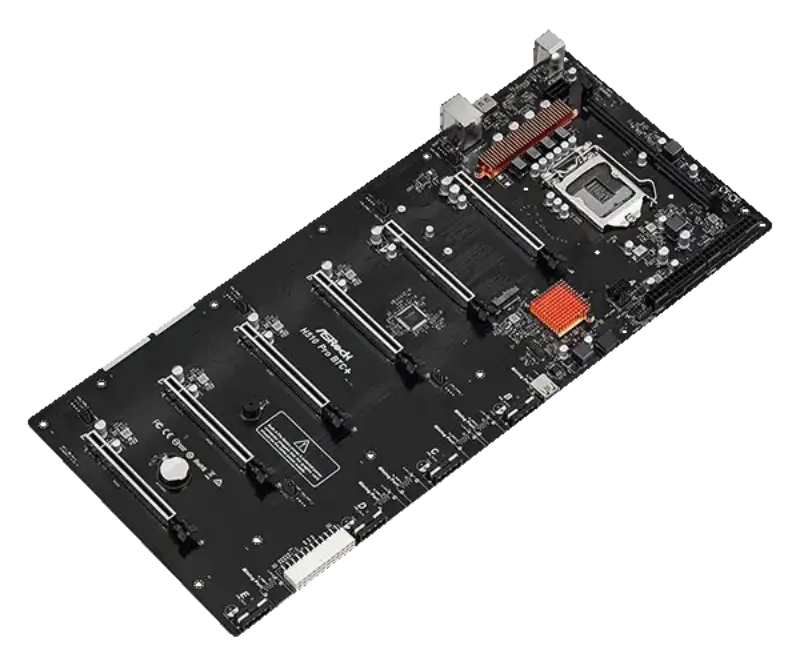

ASRock Intel 1200 H510 Pro Btc + M.2 90-MXBGL0-A0UAYZ
