Gigabit WiFi 6 Speed – 1.8 Gbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.† Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously. Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs. Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals. Captive Portal – Offers a designed portal page for heightened security and marketing.
Manufacturer: Tp-Link
SKU: NAP0040
Manufacturer part number: TL-WA1801
Availability: 10 in stock
€76.18 excl tax
Interface1 Gigabit Port (Supports Passive PoE)

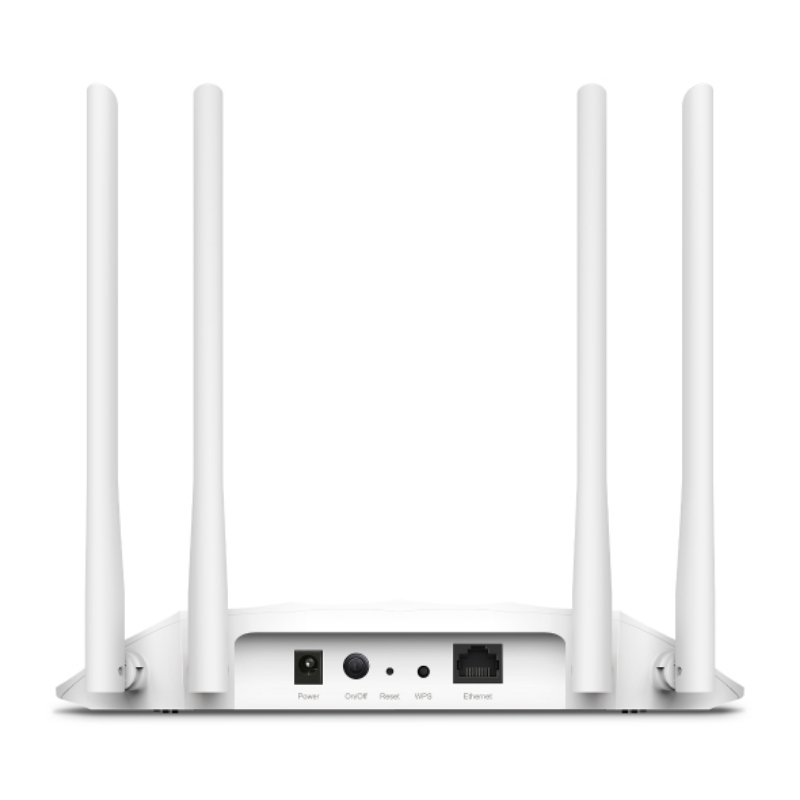

ButtonPower On/Off Button, WPS Button, Reset Button
External Power Supply48V/0.375A
Dimensions ( W x D x H )8.9×5.7×1.5 in (225×145.5×37mm)
Antenna4 Antennas
WIRELESS FEATURES
Wireless StandardsIEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz
Frequency2.4 GHz and 5 GHz
Signal Rate1201 Mbps at 5 GHz
574 Mbps at 2.4 GHz
Reception Sensitivity5GHz:
11a 6Mbps: -97dbm
11a 54Mbps:-76dbm
11ac VHT20_MCS0: -96dbm
11ac VHT20_MCS8: -72dbm
11ac VHT40_MCS0: -93dbm
11ac VHT40_MCS9: -67dbm
11ac VHT80_MCS0: -90dbm
11ac VHT40_MCS9:-63dbm
11ax HE20_MCS0:-96dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -93dbm
11ax HE40_MCS11: -61dbm
11ax HE80_MCS0: -90dbm
11ax HE80_MCS11:-60dbm

2.4GHz:
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
Wireless FunctionsEnable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control
Wireless SecurityWPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
Transmission PowerFCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
SOFTWARE FEATURES
Quality of ServiceWMM
Operating ModesAccess Point, Range Extender, Client, Multi-SSID
System ToolsSNMP, Ping Watchdog
DHCPServer, DHCP Client List
ProtocolsIPv4, IPv6
OTHERS
CertificationFCC, RoHS
Package ContentWireless Access Point TL-WA1801
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser
EnvironmentOperating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Operating Humidity: 10%~90% non-condensing
Products specifications
Attribute nameAttribute value
Wifi Speed1000mbps+
EnvironmentIndoor
