Products

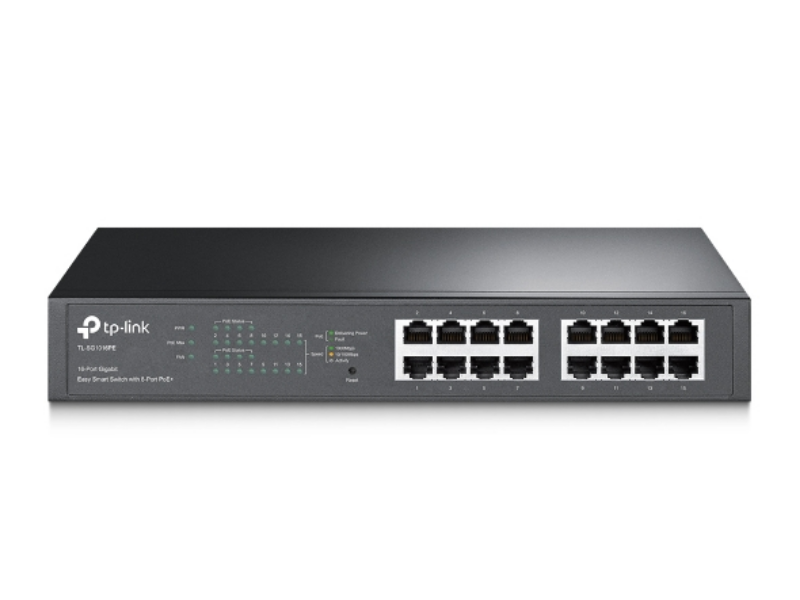

16 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ supported ports to transfer data and power over a single cable With a total PoE power budget of 110W, up to 30W per port Works with IEEE 802.3af/at compliant devices, expanding home and office networks Simple network set-up on top of plug-and-play connectivity Web-based user interface and management utility simplify configuration
Manufacturer: Tp-Link
SKU: NSW0023
Availability: 4 in stock
€147.46 excl tax

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock Yes
PoE Ports (RJ45) Standard: 802.3 at (30W)
PoE Ports: Port 1- Port 8
Total PoE Power Budget: 110W
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting 13" and 19" 1U rack mountable
Max Power Consumption 14.7W (no PD load)
131.4W (with 110W PD load)
Max Heat Dissipation 50.2 BTU/h (no PD load)
448.4 BTU/h (with 110W PD load)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
POE Auto Recovery
Transmission Method Store-And-Forward
OTHERS
Certification FCC, RoHS

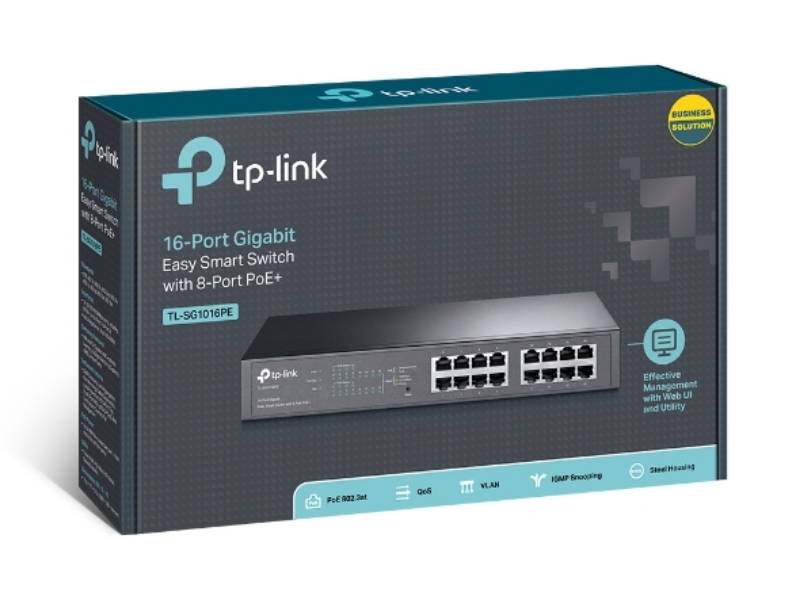

Package Contents TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Products specifications
Attribute nameAttribute value
Lan Ports16
Transfer Speed10/100/1000
MountingDesktop
Network FeaturesPOE, Easy
