Products
Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.† High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡ Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△ PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Manufacturer: Tp-Link
SKU: NAP0024
Manufacturer part number: EAP620 HD
Availability: 3 in stock
€180.51 excl tax

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port
(supports IEEE802.3at PoE)
Button Reset
Power Supply 802.3at PoE or
12 V DC (Power adapter included)
Power Consumption 13.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in.
(243 × 243 × 64 mm)
Antenna Type Omni directional internal antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting Ceiling /Wall Mounting
(Mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power 25 dBm max. (2.4 GHz)
25 dBm max. (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC
Package Contents • EAP620 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Customers who bought this item also bought
€0.59 excl tax
Availability: 286
€0.59 excl tax
Availability: 26
€82.54 excl tax
Availability: 2
€61.61 excl tax
Out of stock

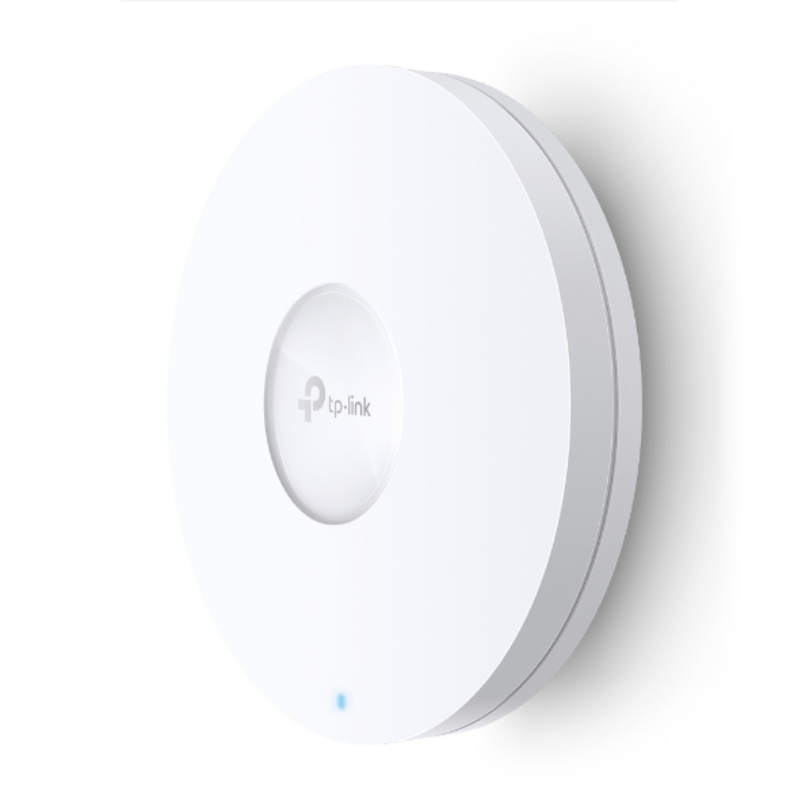

TP-Link EAP620 AX1800 Wireless Dual-Band Gigabit Ceiling Mount Access
