Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 7.7W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Dimensions 7.5×6.8×1.2 in.
(189.4×172.3×29.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE:
≤19dBm(EIRP)
FCC:
≤21dBm
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS

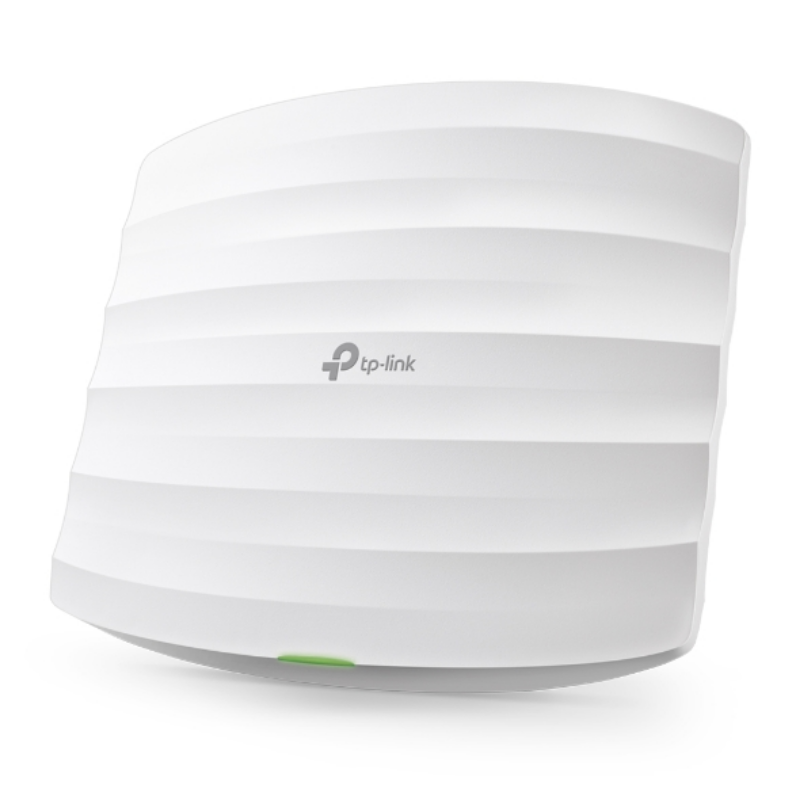

Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
