More Information
P/N
CA-1I7-00F1WN-03
SERIES
View
MODEL

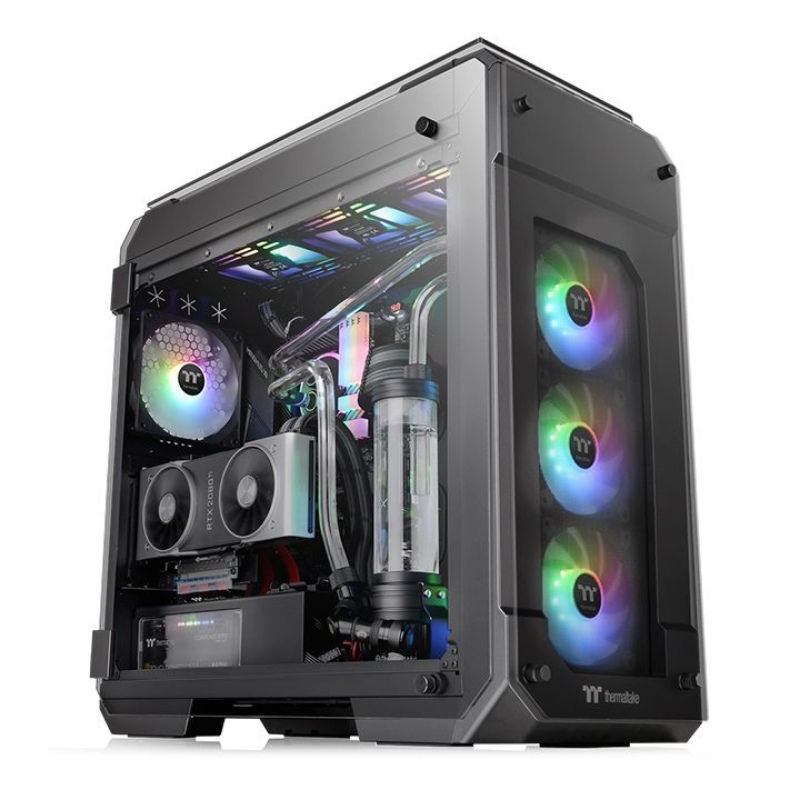

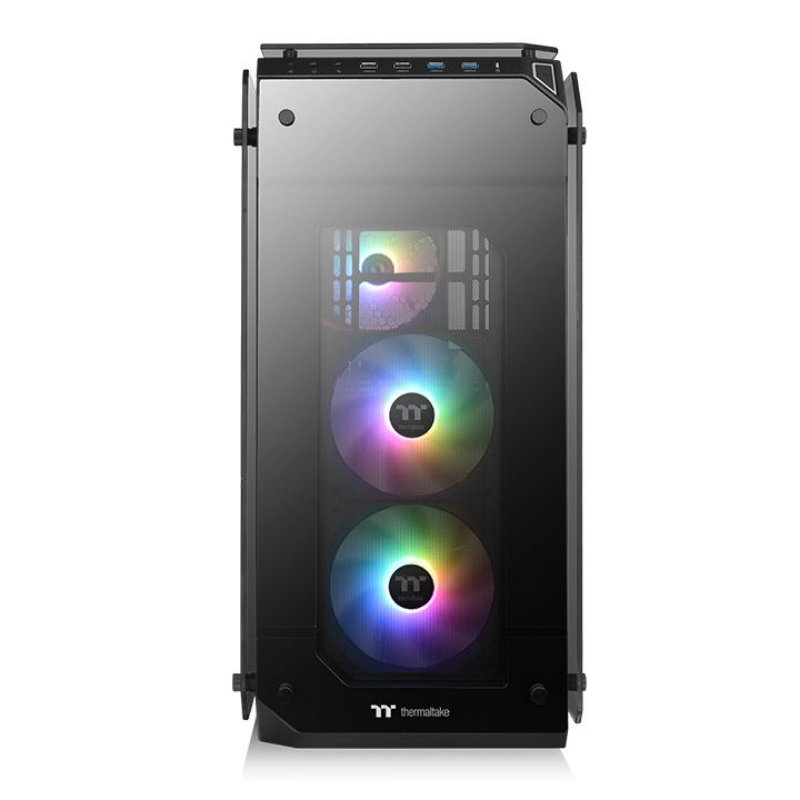

View 71 TG ARGB
CASE TYPE
Full Tower
DIMENSION (H X W X D)
592 x 274 x 577 mm
(23.3 x 10.8 x 22.7 inch)
NET WEIGHT
19.3 kg / 42.55 lb
SIDE PANEL
5mm Tempered Glass x 4 (Left & Right & Front & Top)
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Front (intake) :
140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN

2.5” x 4 or 3.5”x4 (HDD Rack)
2.5”x 6 or 3.5” x 3
EXPANSION SLOTS
8+2
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)
I/O PORT
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm , 2 x 140mm
Top:
3 x 120mm , 3 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm
RADIATOR SUPPORT
Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 420mm
Rear:
1 x 120mm, 1 x 140mm
Right:
1 x 360mm, 1 x 420mm
Bottom:
1 x 240mm
CLEARANCE
CPU cooler height limitation: 190mm
VGA length limitation: 310mm(With HDD Rack)
　　　　　　　　　 410mm(Without HDD Rack)
PSU length limitation: 220mm (Without Bottom Fan)
