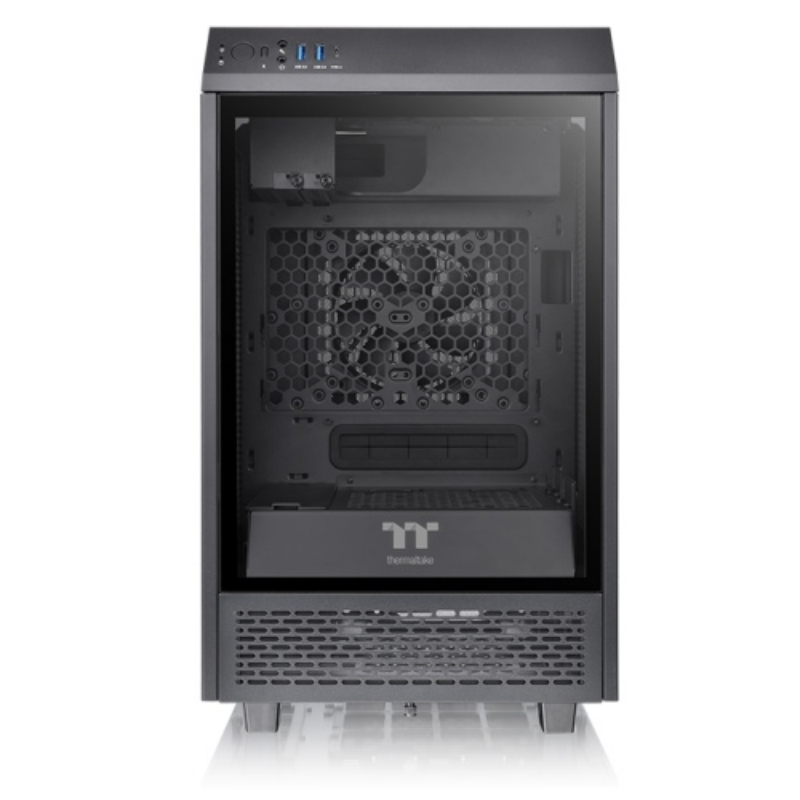

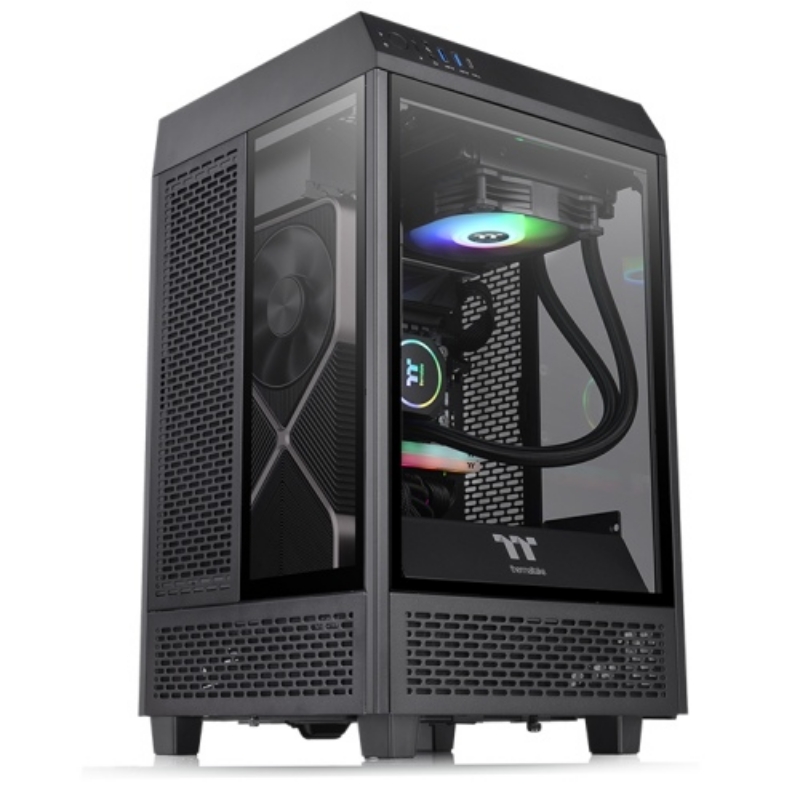

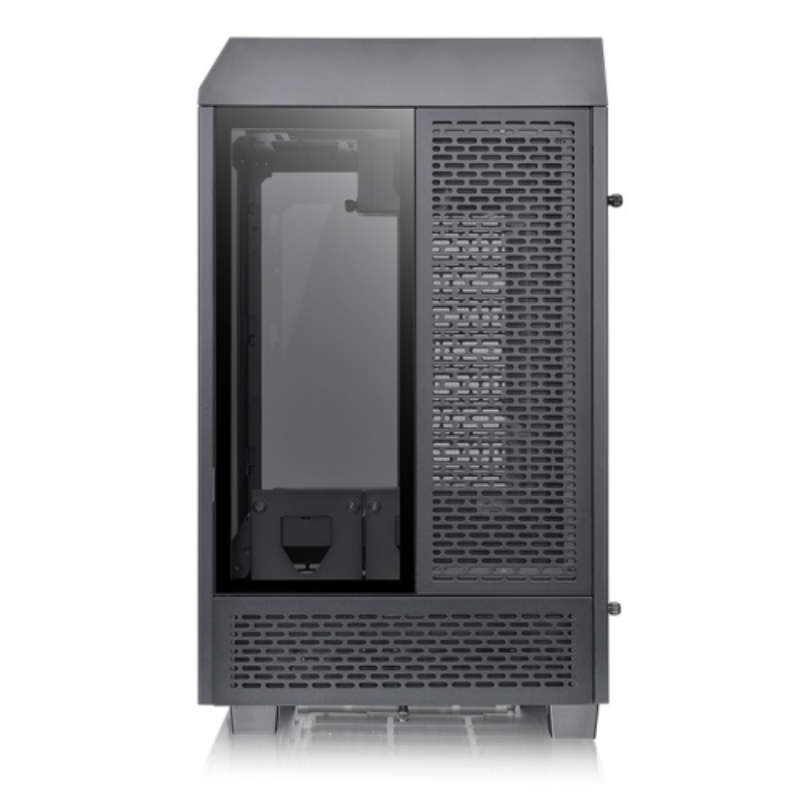

The Tower 100 is a vertically designed mini-ITX chassis with panoramic viewing. It comes with two preinstalled 120mm standard fans and three 4mm tempered glass windows at the front, on left and right side.
Manufacturer: Thermaltake
SKU: CCS0079
Manufacturer part number: CA-1R3-00S1WN-00
Availability: 3 in stock
€86.86 excl tax

SERIES
The Tower
MODEL
The Tower 100
CASE TYPE
Mini Tower
DIMENSION (H X W X D)
462.8 x 266 x 266 mm
(18.2 x 10.5 x 10.5 inch)
NET WEIGHT
6.1 kg / 13.45 lbs.
SIDE PANEL
Tempered Glass x 3 (4mm thickness)
COLOR
Black
MATERIAL
SPCC
COOLING SYSTEM
Top(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1
DRIVE BAYS
-ACCESSIBLE
-HIDDEN

-
2 x 2.5“(with side bracket);
2 x 3.5” (without rear fan)
EXPANSION SLOTS
2
MOTHERBOARDS
6.7” x 6.7” (Mini ITX)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Top:
1 x 120mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Top of the PSU Cover:
1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
Top:
1 x 120mm
CLEARANCE
CPU cooler height limitation: 190mm
VGA length limitation: 330mm
PSU length limitation: 180mm

Products specifications
Attribute nameAttribute value
Case ColourBlack
Case Form FactorMini-Tower
Side PanelGlass
PSU Form FactorATX
Consumption5w
Motherboard Form FactorITX

Thermaltake The Tower 100 Black SPCC Tempered Glass*3 CA-1R3-00S1WN-00
