SWAFAN EX incorporates a new magnetic force design for quick connection among fans with its 12 V cable and at the same time keeping the swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building.
Manufacturer: Thermaltake
SKU: CCT0057
Manufacturer part number: CL-F161-PL12SW-A
Availability: 15 in stock
€101.69 excl tax

P/N CL-F161-PL12SW-A
FAN DIMENSION 120 x 120 x 25 mm
INTERFACE USB 2.0 connectors (9 Pin)
SYSTEM COMPATIBILITY Windows 10 /11
FAN STARTED VOLTAGE 9.0 V
FAN RATED VOLTAGE 12 V & 5V
RATED CURRENT 12 V - 0.23 A , 5 V – 0.72 A (one fan)
POWER INPUT 12 V – 2.76 W , 5 V – 3.6 W (one fan)
FAN SPEED 500 ~ 2000 R.P.M


MAX. AIR PRESSURE
Standard Fan Blade : 2.39 mm-H2O (one fan)
Reverse Fan Blade : 2.02 mm-H2O (one fan)

MAX AIR FLOW
Standard Fan Blade : 57.11 CFM (one fan)
Reverse Fan Blade : 56.26 CFM (one fan)
NOISE LEVEL
Standard Fan Blade : 30.6 dB-A (one fan)
Reverse Fan Blade : 32.5 dB-A (one fan)


BEARING TYPE Hydraulic Bearing
LIFE EXPECTATION 40,000 hrs,25℃
INCLUDED ITEMS Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed)
Reverse Fan Blade x 3
Controller x 1

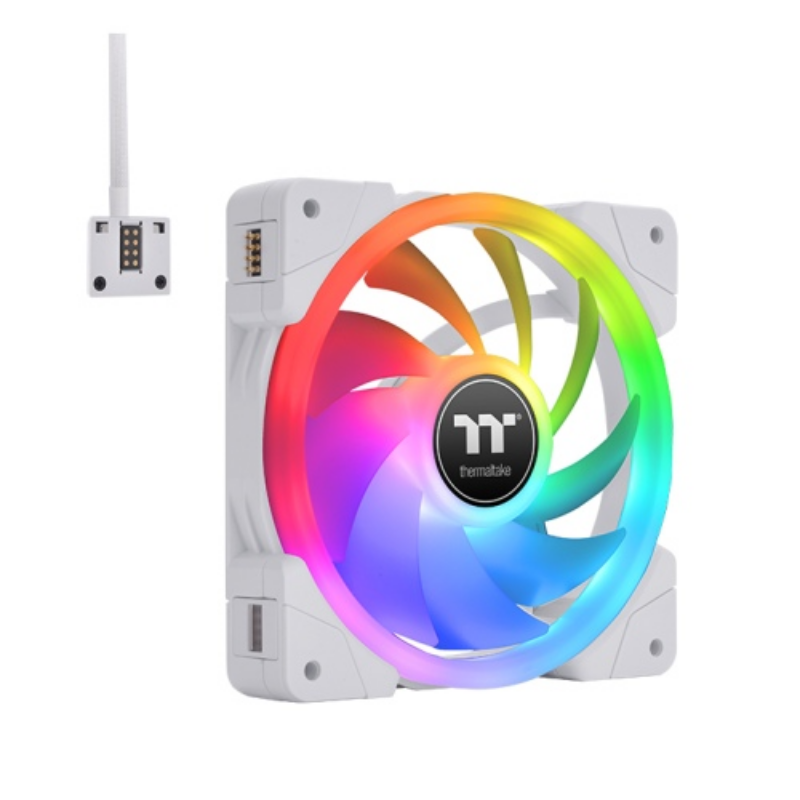

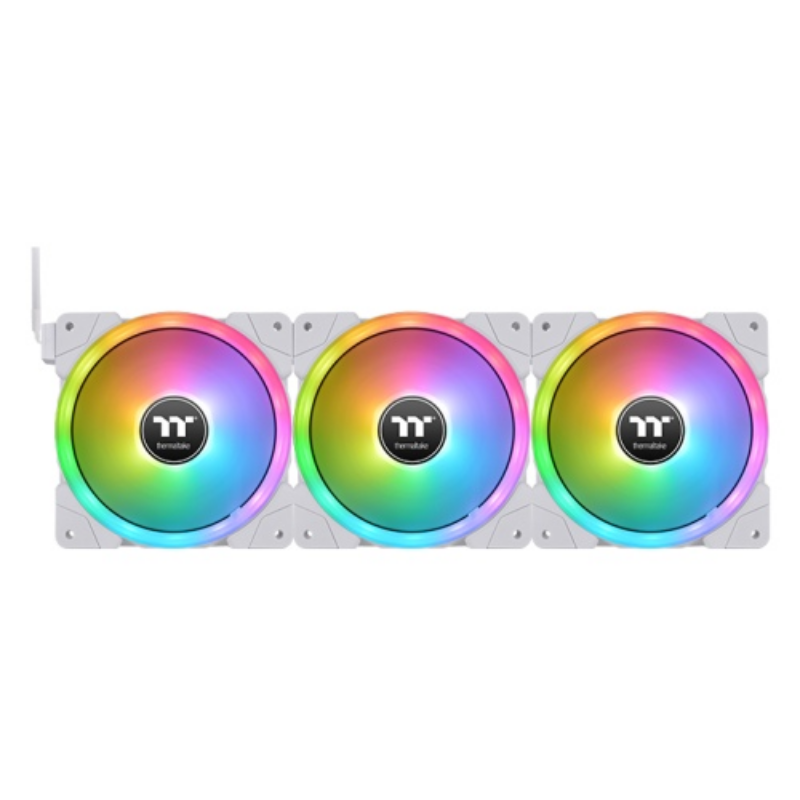

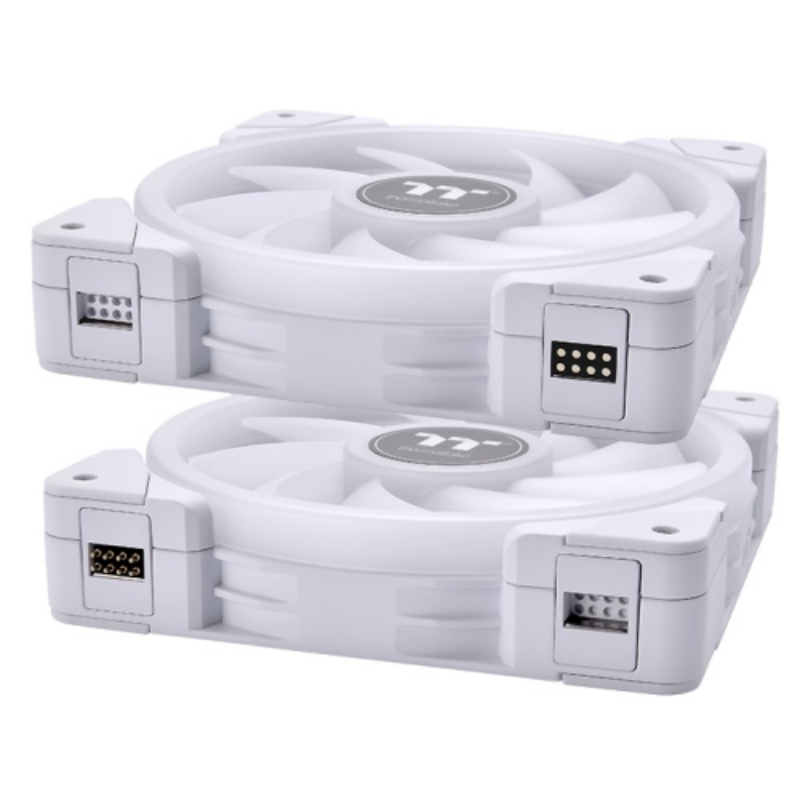

Thermaltake SWAFAN EX12 RGB TT Premium Cooling Fan 3x120mm Pack White CL-F161-PL12SW-A

€101.69 excl tax
