P/N CL-W349-PL12SW-A
PUMP
Motor Speed : 3200 RPM
Rated Voltage : 12V
Rated Current : 0.38A
Power Input : 4.56W

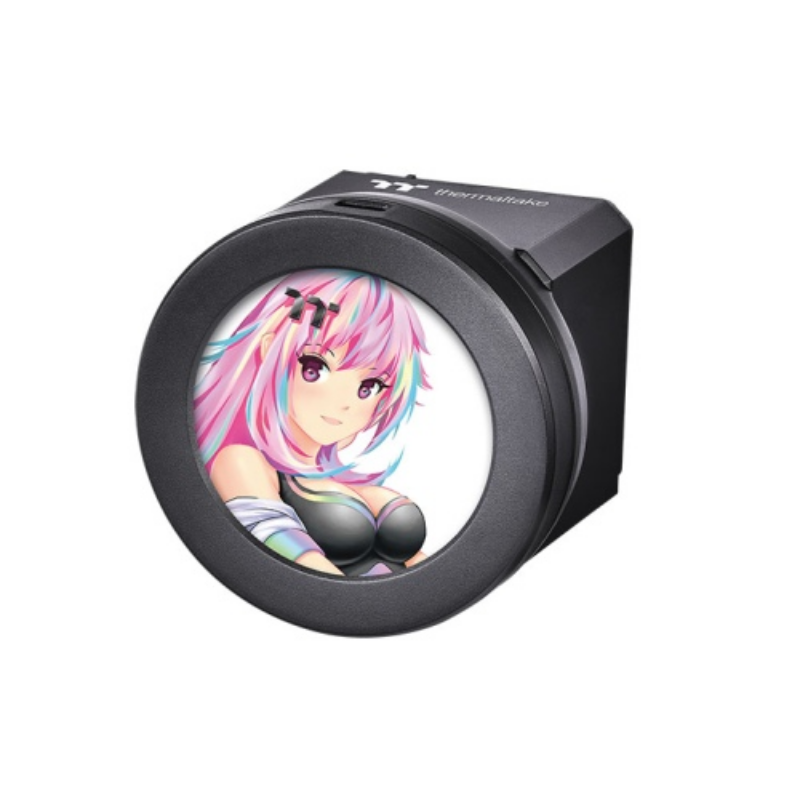

CPU DISPLAY
Rated Voltage : 5 V
Power Input : 1.15 W
Display Type : 2.1” TFT-LCD (IPS)
Display Resolution : 480x480 (RGB) px
Rotation Angle : 0°~270°
DISPLAY SUPPORT
Interface : Micro USB to USB (9PIN)
System Compatibility : Windows 10/11
WATER BLOCK
Material : Copper
FAN
Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R.P.M (2510-4PIN)
Noise Level : 34.1 dB-A
Power Input : 4.2 W (one fan)
Rated Voltage : 12 V
Rated Current : 0.35 A (one fan)
Max. Air Flow : 76.98 CFM (one fan)
Max. Pressure : 2.66 mm-H2O (one fan)
TUBE
Length : 400 mm
Material : Rubber
RADIATOR
Dimension : 273 x 120 x 27 mm
Material : Aluminum

CPU Socket :
Intel LGA 2066/2011-3/2011/1700/1200/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
CONTROLLER
Interface : USB 2.0 Connectors – 9 Pin ; 4 Pin Molex
System Compatibility : Windows 10 / 11
