Sorry - this product is no longer available

High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc. Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed. 100Base-TX,100Base-T2 and 100Base-T4 standard. Can be used for voice, integrated service data network (ISDN). Long transmission distance, small transmission loss, wear resistance, resistance to pressure

Manufacturer: Tapecom

SKU: ANW0120

GTIN: 9800125423057

Availability: Out of stock

Full Description
Specifications

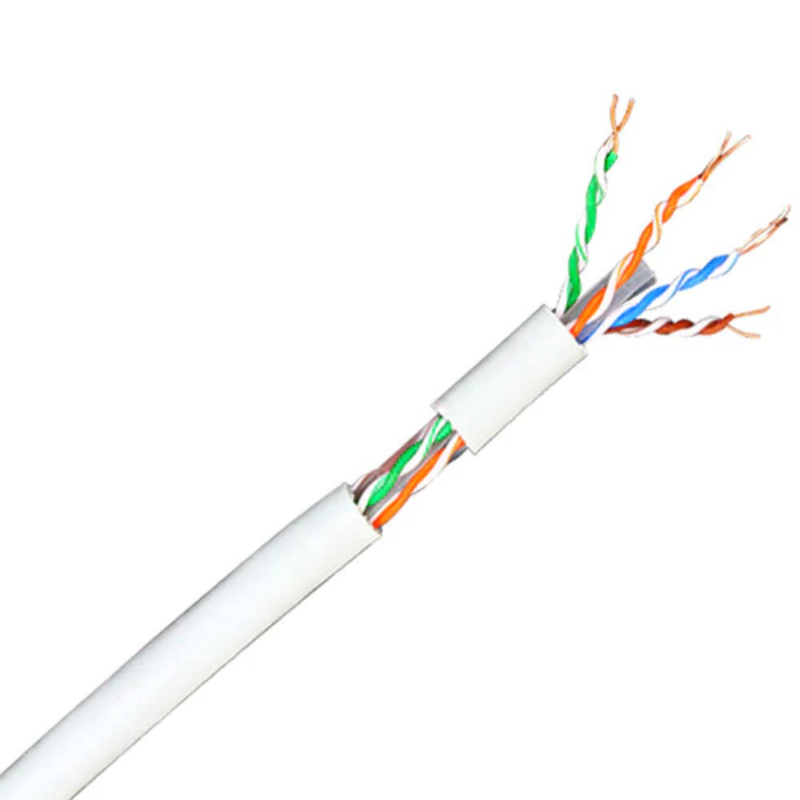

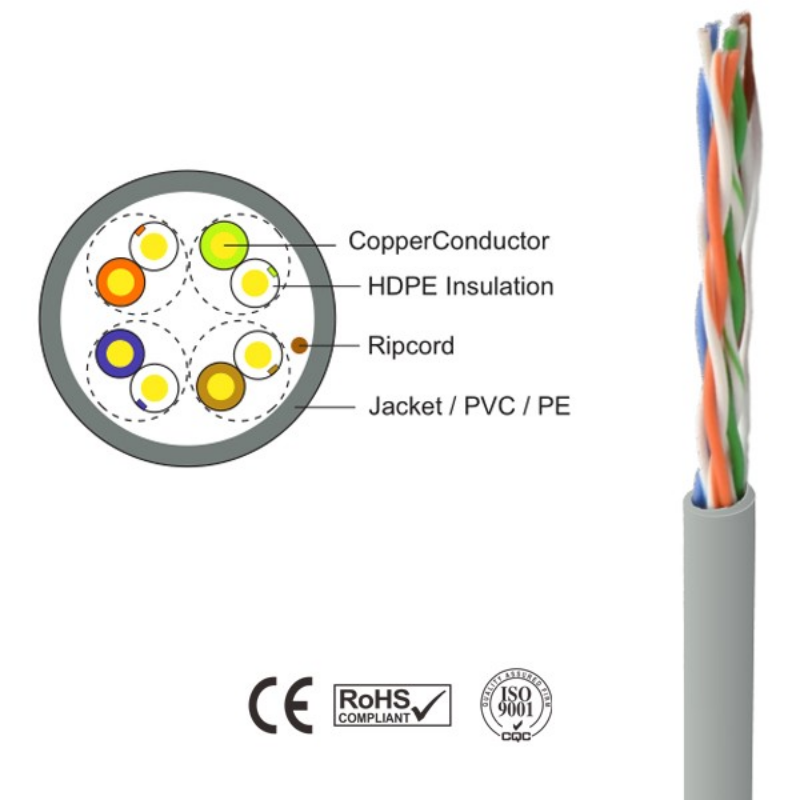

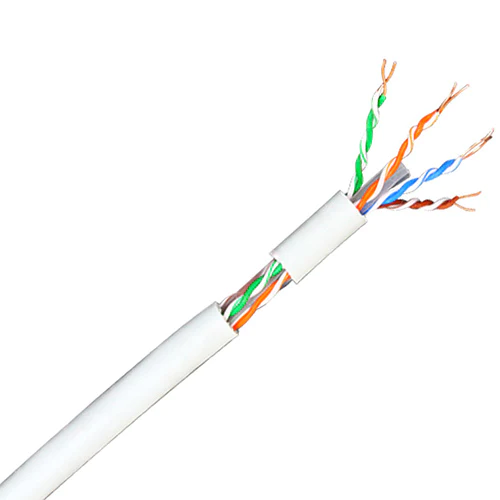

Model UTP CAT5 CABLE
Conductor Size 24AWG
Conductor Material CCA/CCU/BC
Nuber Of Conductor 4P
Shiled UTP/FTP/STP/SFTP
Flammability Grade: CMP,CMX,CM,CMG,MPG,CMR,MPR
Indoor / Outdoor Single jacket/Double jacket
Insulation Material PE,HDPE,LSZH PE
Insulation Thickness 0.91mm
Jacket Material PVC, ROHS PVC, LSZH PVC
Outer Jacket Thickness 5.2mm
DC Resistance(Max.) 9.5 Ohm/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000 MOhm.km
Transmission Velocity 65%
Operating Temperation -40 °C – +75 °C

Products specifications

Attribute name	Attribute value
Cable Length	305m
Cable Conductor	CCA
Shielding	UTP
Cable Color	Grey
