Products
Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series. The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.
Manufacturer: Seasonic
SKU: CPO0058
Manufacturer part number: PRIME-GX-1000
Availability: 1 in stock
€208.47 excl tax

PRIME-GX-1000
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 83 A 0.3 A 3 A
125 W 996 W 3.6 W 15 W
Total continuous power 1000 W
CABLES
PRIME-GX-1000
Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 610 1
CPU-650 CPU (8/4 pins) 1 650 2
PCIe-750-2x PCIe (8/6 pins) 2 750 0
PCIe-750-1x PCIe (8/6 pins) 1 750 6
SATA-810-4x-90 SATA 4 810 2
SATA-800-4x-180 SATA 4 860 1
SATA-760-4x-90 SATA 4 760 0
SATA-700-2x-90 SATA 2 700 0
SATA-570-2x-180 SATA 2 570 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 1
Molex-690-3x Molex 3 690 1
Molex-470-2x Molex 2 470 1
Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 1
Molex-to-FDD-101 Molex to FDD Adapter 1 101 0
Specifications are subject to change without prior notice

Products specifications
Attribute nameAttribute value
EfficiencyGold
Wattage1000w
PSU Form FactorATX

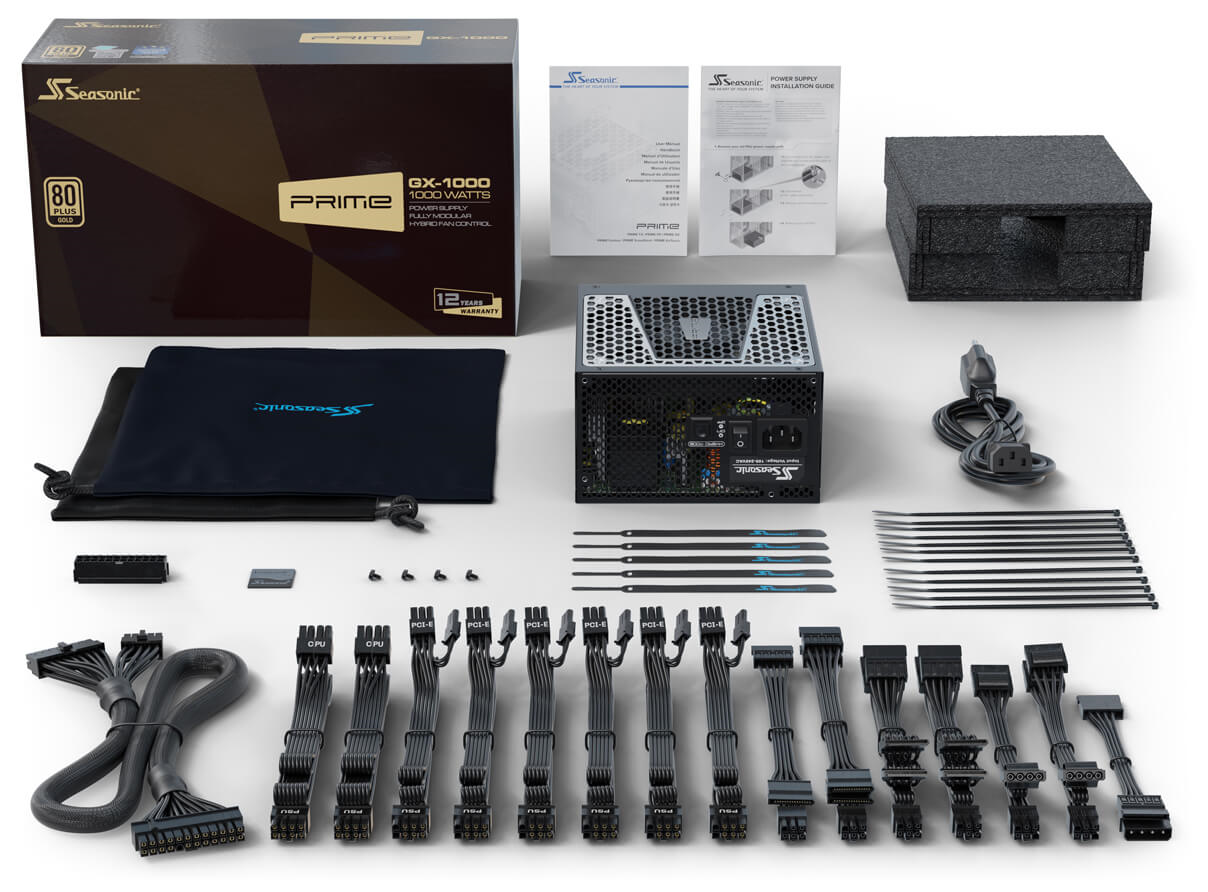

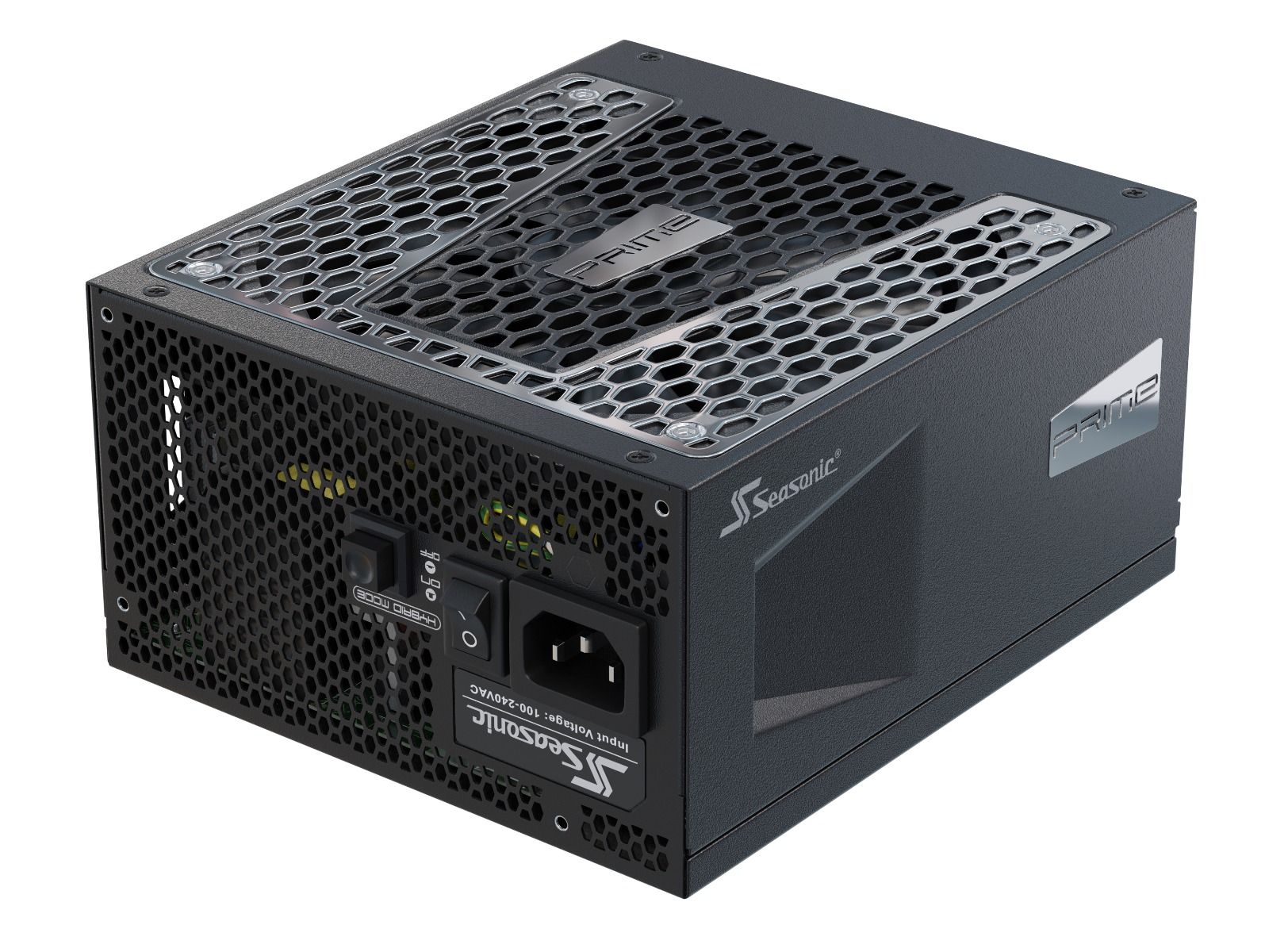

Seasonic PRIME GX-1000 1000W 80+ Gold Fully Modular

€208.47 excl tax
