General Feature

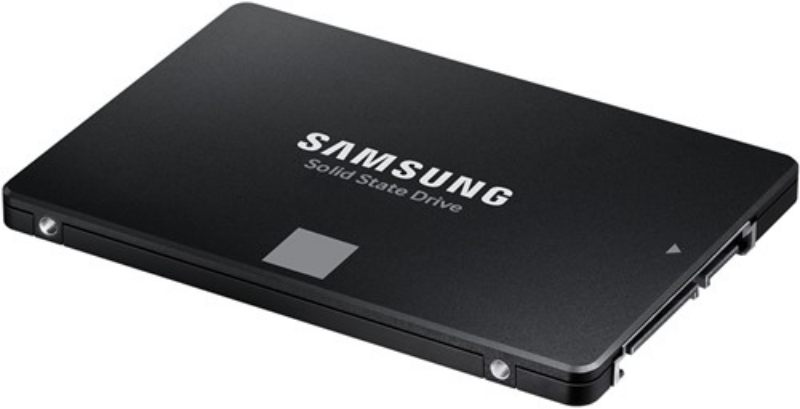

Product Type 870 EVO SATA 2.5" SSD 1TB
Family Line 870 EVO SATA 2.5" SSD
Capacity 1TB
Interface SATA 6 Gbps Interface

Compatibility Windows10/Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux

Dimension (WxHxD) 3.94" X 2.75 " X 0.27"

Weight 0.19 lbs.


Speed Read/write speeds of up to 560/530 MB/s

Encryption Class 0 (AES 256) TCG/Opal v2.0, MS eDrive (IEEE1667)

Type Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Usage Application Client PCs

Storage Capacity 1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)Sequential Read Speed
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Speed Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Cache Memory Samsung 1 GB Low Power DDR4 SDRAM

Trim Suppor TRIM Supported

S.M.A.R.T. Support S.M.A.R.T Supported

GC (Garbage Collection) Auto Garbage Collection Algorithm

WWN Support World Wide Name supported

Device Sleep Mode Support Yes

Average Power Consumption (system level)
Average: 2.5 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)

Form Factor
Product
2.5 inch
