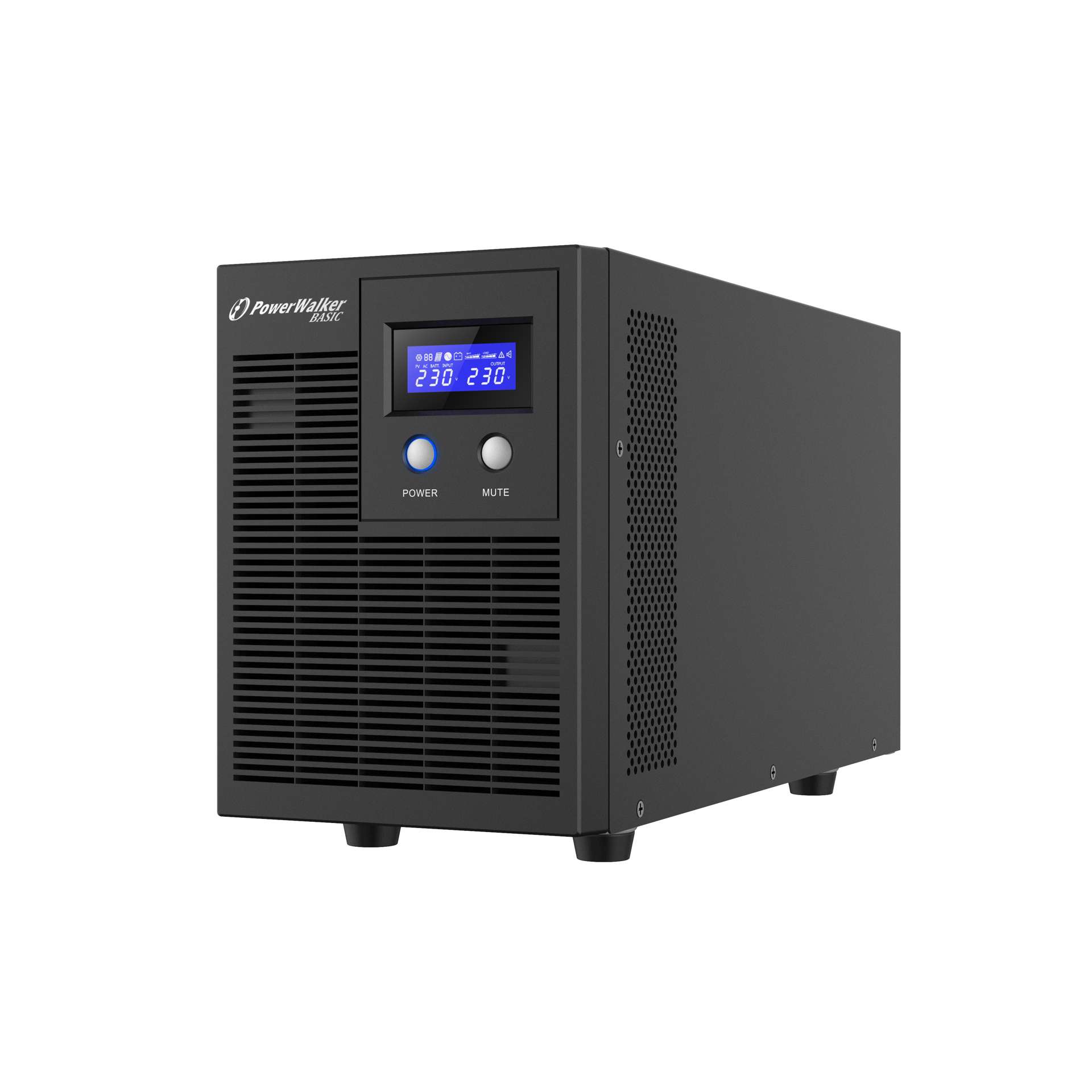

The PowerWalker Basic VI STL series is designed to answer the essential market needs. This Line-Interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped with a USB port with HID support allowing easy and immediate communication with any O/S. Additionally this series offers an advanced LCD panel with a smart multi-functional button (a double click will mute the alarm and a long-press will control the output). The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID.
Manufacturer: Powerwalker
SKU: PUP0187
Manufacturer part number: 10121197
GTIN: 4260074984033
Availability: 3 in stock
Login to view Price
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorTower
Power Capacity3000VA / 1800W
Output Power Factor0.60
INPUT
Input Voltage Range162-290 VAC
Frequency Range50Hz or 60Hz (self-adaptive)
OUTPUT
WaveformSimulated Sine Wave
Nominal Output Voltage230 VAC
Voltage Regulation (Battery Mode)±10%
Frequency (Battery Mode)±1%

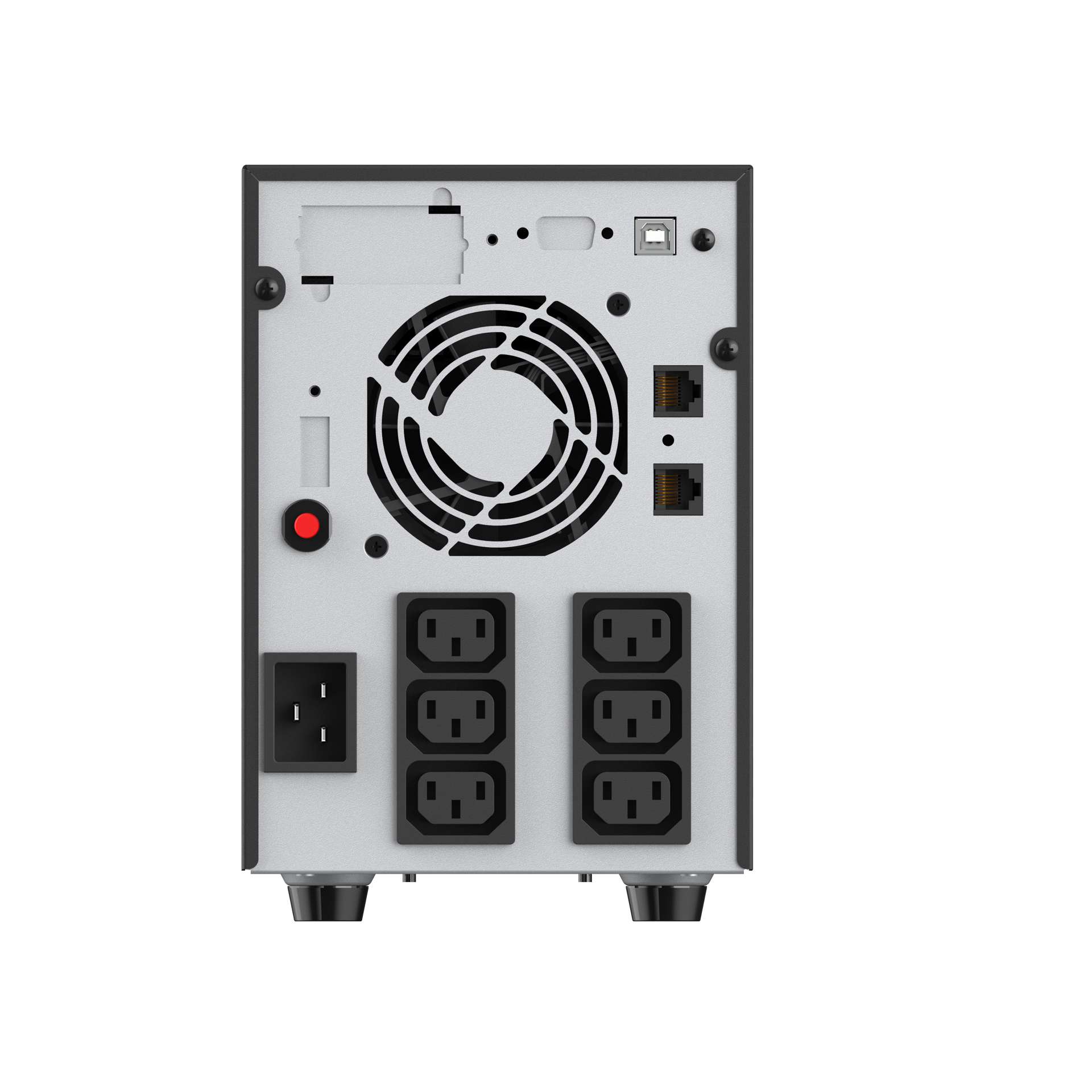

INPUT & OUTPUT CONNECTORS
Input ConnectorC20-UK
Output TypeIEC – UK
IEC C136
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)93.0
Battery Mode Efficiency [%] (Full Load)65.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]2-6ms typical (10ms max)
Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
Additional FeaturesCircuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Cold-Start Function, Energy Saving Function
IEC 62040-3 classificationVI-SY-333
BATTERIES AND AUTONOMY
Batteries4x 12.0V/7.0Ah
DC Voltage4x 12.0V
Recharge Time8h to 90%
Full Load Backup Time [min]1.0
Half Load Backup Time [min]3.5
Charger0.7A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software
SoftwarePowerMaster
ENVIRONMENT
Noise Level< 45dB
Fan LogicAlways on (half speed)Full speed if load > 25% in battery mode or AVR mode
Temperature0°C – 40°C
Humidity0% – 90% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentManual, UPS
EAN4260074984033
Product Dimensions (DxWxH) [mm]394 x 151 x 225 mm
Product Weight [kg]18.1
Package Dimensions (DxWxH) [mm]510 x 241 x 313 mm
Package Weight [kg]19.5
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
UPS TypeLine Interactive
Output ConnectionsC13
UPS PowerUp to 3000 VA
UPS FeaturesTower, LCD
