Type Line-Interactive
Power capacity 1500VA / 900W
Output Power Factor 0.60
Input
Input Voltage Range 162-290 VAC
Frequency Range 50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 230 VAC
Pure Sine Wave Yes
Voltage Regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±1Hz
Technical details
Surge protection 380 Joule
Transfer Time [AC to Battery] 6ms typical; 10ms maximal
Overload Capacity N/A
Protection Overload, discharge, and overcharge protection
Fan Logic Auto: OFF: in LINE mode; ON: in battery- and AVR mode

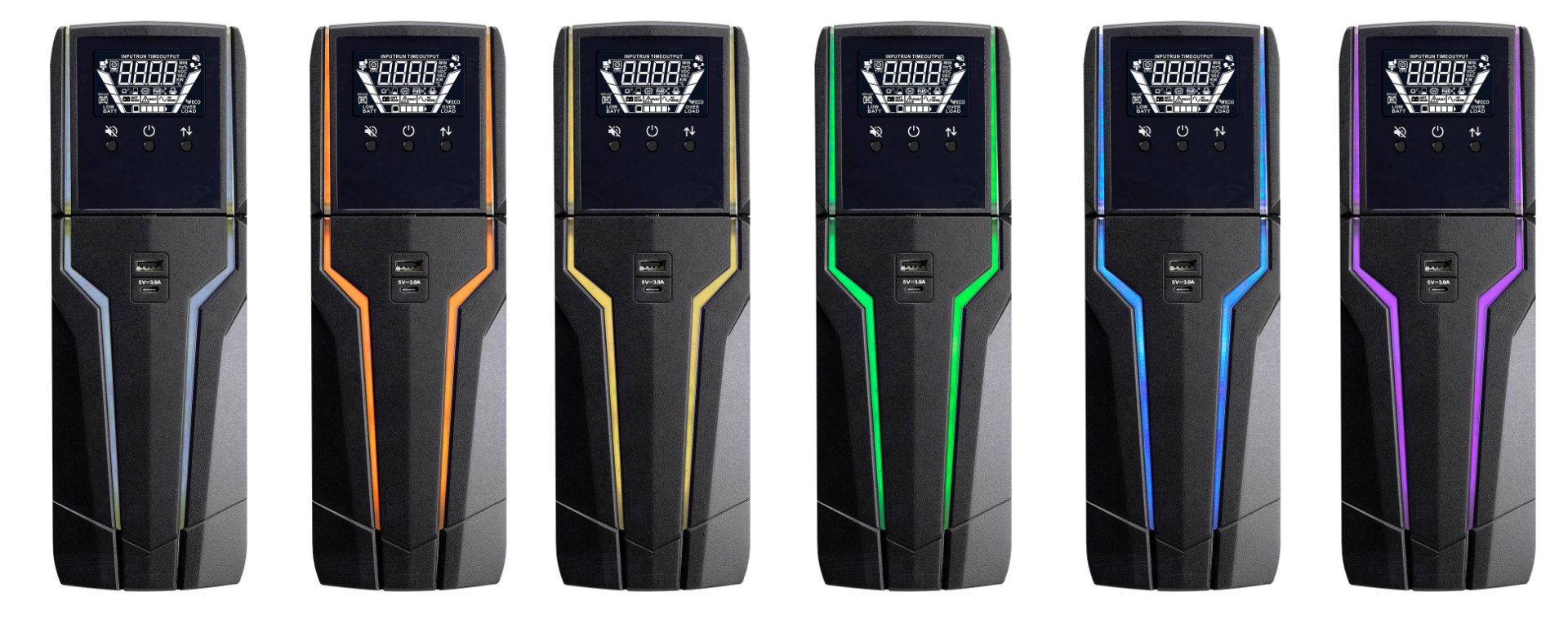

LED Indicators Line Mode, Battery Mode and AVR Mode are programmable in Full RGB Spectrum, Fault Mode
LCD Indicators Configuration and Fault Information; Mute Operation; Input voltage, input frequency, battery voltage, battery capacity, backup time, output voltage, output frequency, load capacity, load percentage, NiMH battery, PC CPU speed, PC CPU temperature and PC CPU load percentage; Wireless Connection and Docking; LCD Panel Battery Information.
Efficiency
Batteries and autonomy time
Batteries 2x 12V/9Ah
DC Voltage 2 x 12V
Recharge Time 6-8h to 90%
Full Load Backup Time 3.5min
Half Load Backup Time 10min
Connections and communication
IEC C13 Outlet 8
Input C14-UK
Software ViewPower
USB port Yes
HID Support Yes
RJ-11 protection Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level < 40dB
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
IEC 62040-3 classification VI-SX-333
Package Content UPS, Manual, USB Cable, Input Power Cable, IEC Cable
Manual Languages EN/DE/FR
EAN 4260074982800
Width 99 mm
Height 280 mm
Depth 430 mm
Weight 13.8 kg
Giftbox - Width 182 mm
Giftbox - Height 377 mm
Giftbox - Depth 495 mm
Pcs. per box 1
