GENERAL FEATURES
Type Line-Interactive (VI)
Phases (IN-OUT) 1-1
Form Factor Rack
Rack Units [U] 1U
Power Capacity 1000VA / 600W
Output Power Factor 0.60
INPUT
Input Voltage Range 165-290 VAC
Frequency Range 45Hz – 65Hz
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 230 VAC
THDv ≤3% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±10%
Frequency (Battery Mode) ±0.5Hz

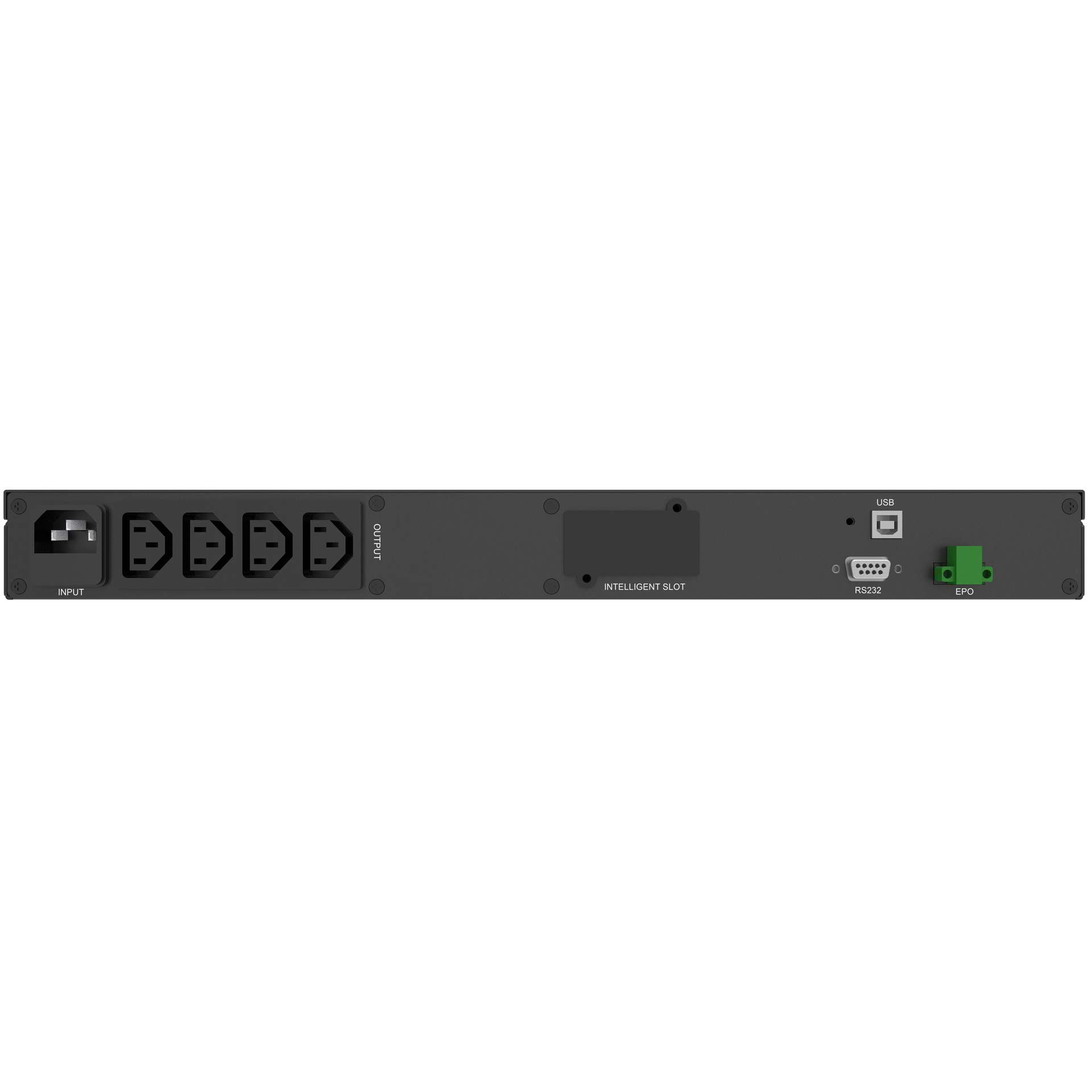

INPUT & OUTPUT CONNECTORS
Input Connector C14-UK
Output Type IEC – UK
IEC C13 4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 95.0
Battery Mode Efficiency [%] (Full Load) 80.0
Transfer Time (AC / Line Mode to Battery Mode) [ms] 4ms typical
Additional Features LCD Display, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
BATTERIES AND AUTONOMY
Batteries 4x 6.0V/7.0Ah
DC Voltage 4x 6.0V
Recharge Time 8h to 90%
Full Load Backup Time [min] 0.8
Half Load Backup Time [min] 10.3
Charger 1A
COMMUNICATION
Communication USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software PowerMaster
ENVIRONMENT
Noise Level < 30dB
Fan Logic No fan
Temperature 0°C – 40°C
Humidity 0% – 90% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content Rack Ears, Input Power Cable, Manual, USB Cable, UPS
Manual Languages EN, UA, DE, PL
EAN 4260074981032
Product Dimensions (DxWxH) [mm] 485 x 433 x 44 mm
Product Weight [kg] 14.2
Package Dimensions (DxWxH) [mm] 475 x 553 x 150 mm
Package Weight [kg] 16.5
