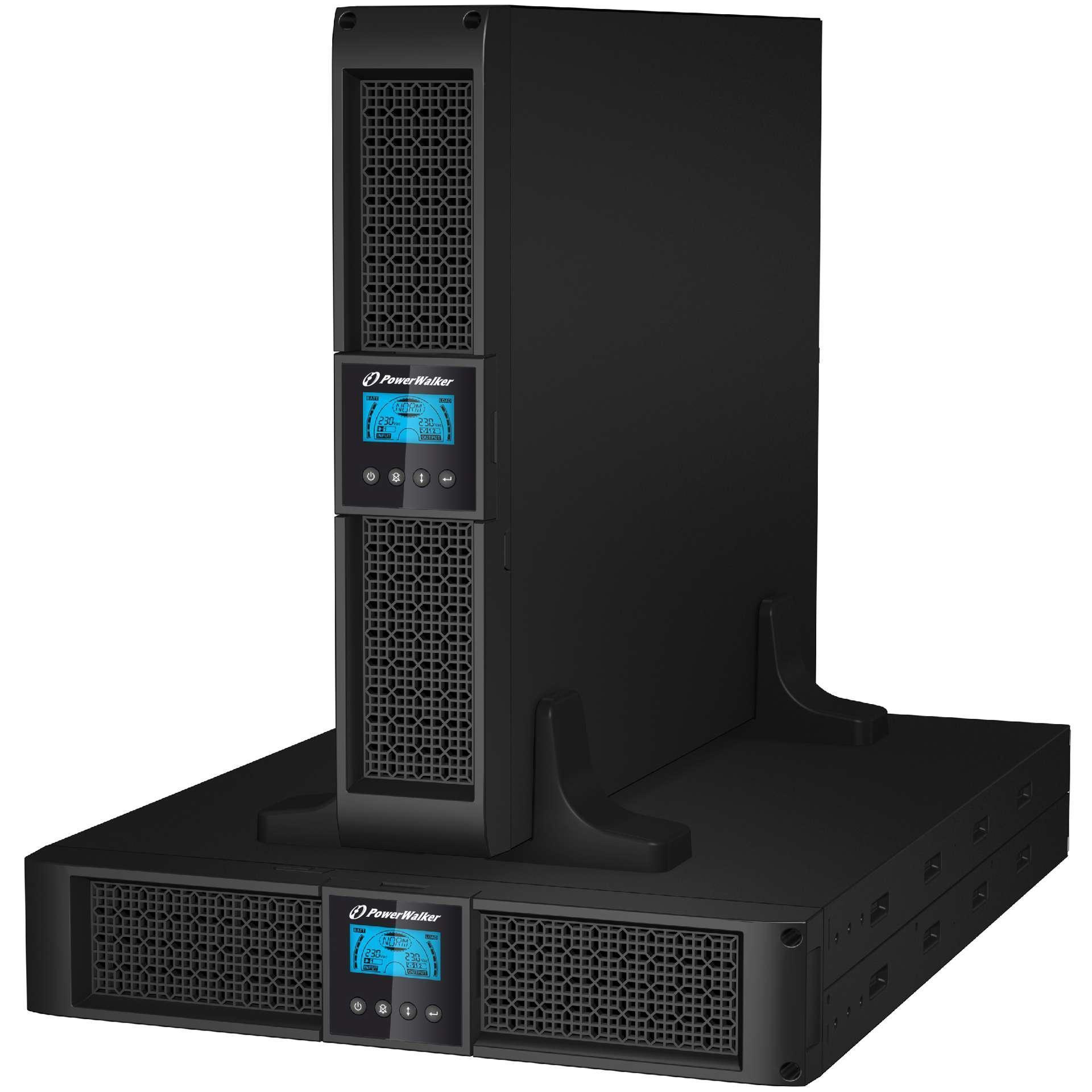

The PowerWalker VI RT HID is by far the most advanced Line-Interactive UPS with Pure Sine Wave output. It was designed to fulfill the high power quality demand in IT-environment while keeping the Line-Interactive topology. The VI RT HID offers full protection for devices such as servers, network/telephone communication systems and small industrial applications. Due to its 2U design and adjustable LCD, the UPS can be installed inside any regular 19” rack cabinet or used as tower system (Tower Holder included). The UPS is available in 2 different Variations: RT: Premium Line-Interactive Solution ERT: Compact Line-Interactive Solution
Manufacturer: Powerwalker
SKU: PUP0046
Availability: Out of stock
€311.83 excl tax
GENERAL FEATURES
TypeLine-Interactive (VI)
Phases (IN-OUT)1-1
Form FactorRack
Rack Units [U]2U
Power Capacity1000VA / 900W
Output Power Factor0.90
INPUT
Input Voltage RangeAcceptable Voltage Range: 176-288VAC
Line Low Transfer (Wide Mode): 154/161/168VAC ± 4%
Line Low Transfer: 176/184/192VAC ± 4%
Line Low Comeback: 186/194/202VAC ± 4%
Line High Transfer: 264/276/288VAC ± 4%
Line High Comeback: 254/266/278VAC ± 4%
Frequency Range45Hz – 65Hz (self-adaptive to 50/60Hz); 40Hz – 65Hz for generator mode
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage220/230/240 VAC
Voltage Regulation (Battery Mode)±5%
Frequency (Battery Mode)±0.1Hz

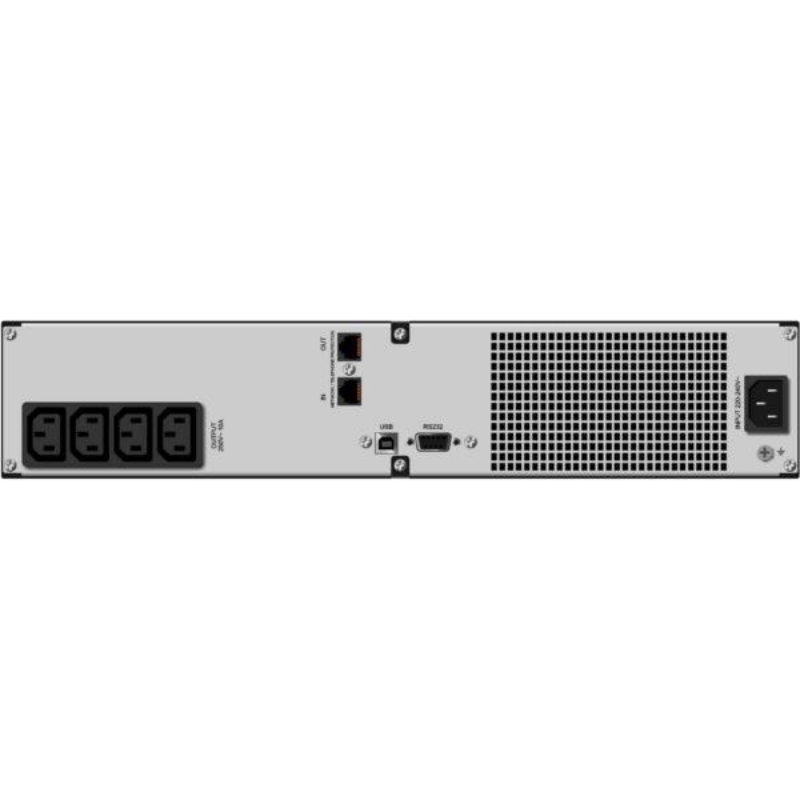

INPUT & OUTPUT CONNECTORS
Input ConnectorC14-UK
Output TypeIEC – UK
IEC C134
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)97.8
Battery Mode Efficiency [%] (Full Load)85.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]2-6ms typical
Transfer Time (AC / Line Mode to Battery Mode) [ms]2-6ms typical (10ms max | 13ms for Generator Mode)
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]<10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]2-6ms typical
Load Crest Ratio3:1
Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
Additional FeaturesOBM – Optimized Battery Management, LCD Display, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classificationVI-SS-311
BATTERIES AND AUTONOMY
Batteries2x 12.0V/9.0Ah
DC Voltage2x 12.0V
Recharge Time8h to 90%
Full Load Backup Time [min]3.0
Half Load Backup Time [min]10.0
Charger1.1A
COMMUNICATION
CommunicationUSB Type B – for Monitoring Software, RS-232
SoftwareWinPower
ENVIRONMENT
Noise Level< 45dB
Fan Logic

Fan Off: Line/ Standby Mode and Load below 80%

Always On, Automatic Fan Control (AVR On, Battery Mode and Battery Charging)

Temperature0°C – 40°C
Humidity20% – 80% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentUPS, Manual, USB Cable, Tower Holder, Rack Ears, 2x IEC Cable, EPO Plug, Input Power Cable
Manual LanguagesDE, RU, PL, FR, HU, CZ, EN
EAN4260074976205
Product Dimensions (DxWxH) [mm]436 x 438 x 86 mm
Product Weight [kg]13.8
Package Dimensions (DxWxH) [mm]545 x 545 x 230 mm
Package Weight [kg]15.8
Pcs. per Outer Carton1
Products specifications
Attribute nameAttribute value
Output ConnectionsC19
UPS FeaturesRackmount, LCD
UPS TypeLine Interactive
UPS PowerUp to 1000 VA
