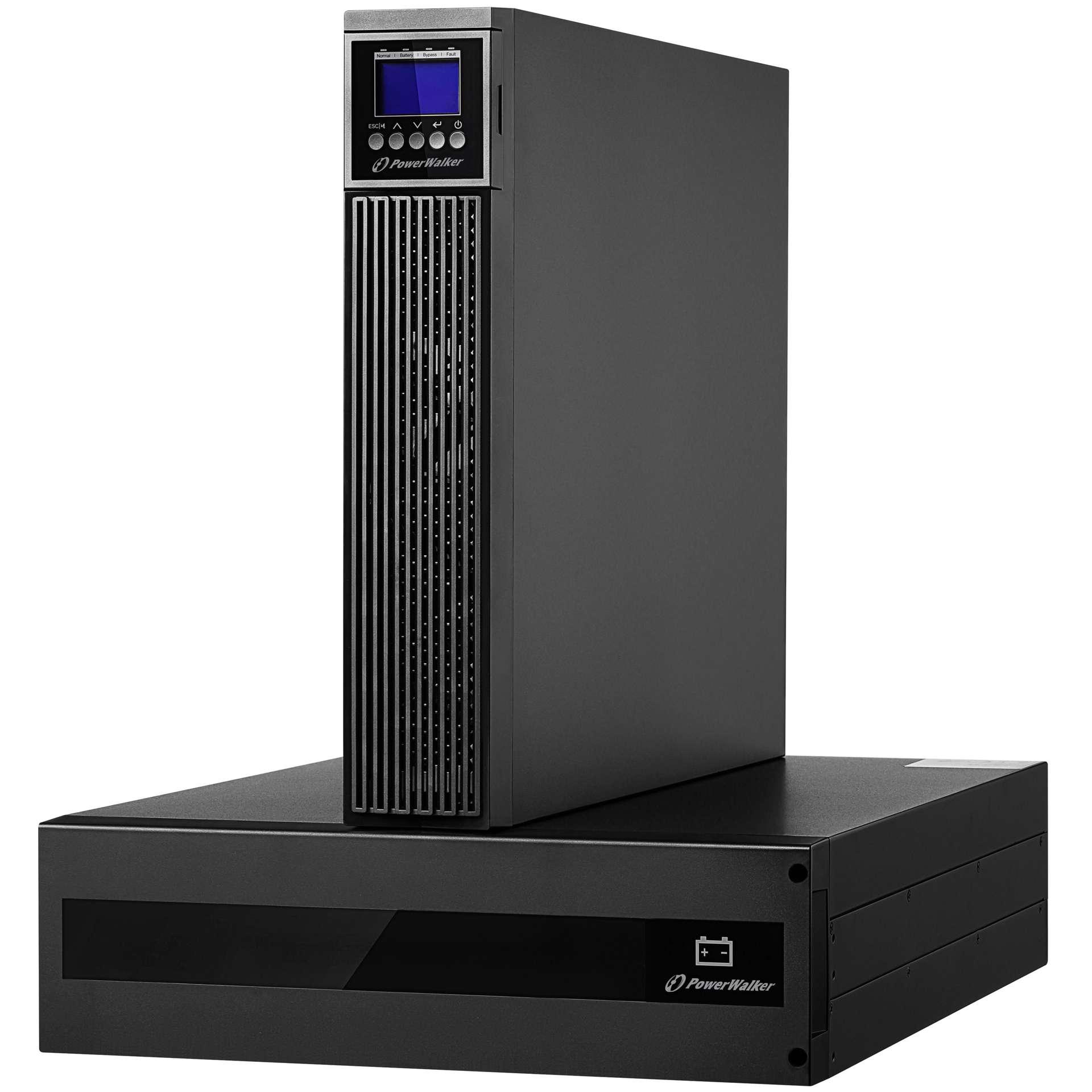

The PowerWalker VFI 6000-10000 RTG is a professional Online rack-UPS solution for demanding office and IT environments. Thanks to the double converter technology, the UPS offers the best protection for sensitive systems. Additionally, the functionality is enhanced by the variety of communication options, such as HID, software or network cards. The UPS is available in 2 different Variations: RTG: Complete Solution including battery pack and MBS/PDU RTGE: Only the UPS engine without battery pack and MBS/PDU
Manufacturer: Powerwalker
SKU: PUP0138
Manufacturer part number: 10122132
Availability: Out of stock
€1774.40 excl tax
GENERAL FEATURES
TypeOnline Single Phase (VFI)
Phases (IN-OUT)1-1
Form FactorRack, Tower
Rack Units [U]5U
Power Capacity6000VA / 6000W
Output Power Factor1.00
INPUT
Input Voltage Range160-276 VAC at 100% load
110-160VAC range linear between 50-100% load
Frequency Range45Hz – 55Hz / 55Hz – 65Hz
40Hz – 70Hz at load ≤60%
Frequency (Synchronized Range)45Hz – 55Hz at 50Hz nominal
54Hz – 66Hz at 60Hz nominal and >60% rated load
OUTPUT
WaveformPure Sine Wave
Nominal Output Voltage208/220/230/240 VAC
THDv≤1% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)±1%
Frequency (Battery Mode)±0,1%

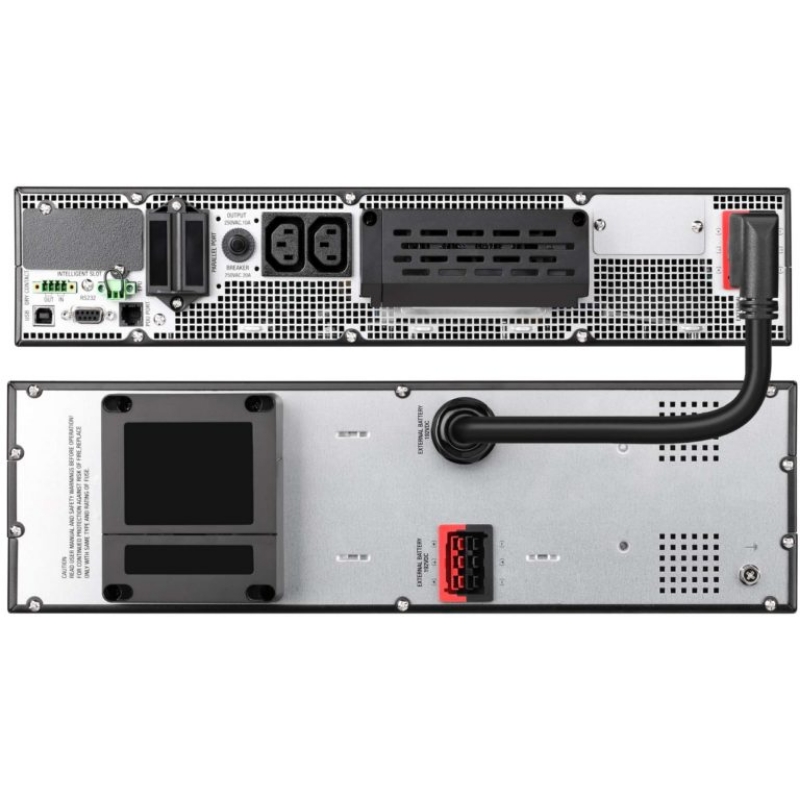

INPUT & OUTPUT CONNECTORS
Input ConnectorTerminal
IEC C132
Terminal OutputYes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)95.0
Battery Mode Efficiency [%] (Full Load)93.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]0ms
Load Crest Ratio3:1
Additional FeaturesECO Mode Available, CVCF Mode Available, Potential Equalization Screw, Hot-Swappable Batteries, Parallel Connectivity, APFC – High Input PF, LCD Display, Input Breaker, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device
IEC 62040-3 classificationVFI-SS-111
BATTERIES AND AUTONOMY
Batteries16x 12.0V/7.0Ah
DC Voltage16x 12.0V
Recharge Time3h to 90%
Full Load Backup Time [min]4.0
Half Load Backup Time [min]11.0
Charger0-4A [1.4A]
External Battery PackYes
COMMUNICATION
CommunicationDry contact, USB Type B – for Monitoring Software, RS-232, RJ-45 – for PDU Input
SoftwareWinPower
Parallel Operation [Units]3
ENVIRONMENT
Noise Level< 55dB
Fan LogicAlways on, Automatic Speed Control
Temperature0°C – 40°C
Humidity0% – 95% RH (non-condensing)
IPIP 20
LOGISTICS
Package ContentBundle (Please see additional packaging information)
Manual LanguagesEN
EAN4260074980318
Product Dimensions (DxWxH) [mm]593 x 438 x 215 mm
Product Weight [kg]58.4
Package Weight [kg]67.6
Addtional Packaging InformationThis is aBundle Product.For theindividual packaging information please look at the followingArticle Number:10122128(UPS Engine) + 10134040 (BP) + 10133004 (PDU).
Pcs. per Outer Carton1
Pcs. per Layer1
Products specifications
Attribute nameAttribute value
UPS FeaturesRackmount, LCD, Pure Sinewave
UPS TypeOnline
Output ConnectionsTerminal
UPS PowerUp to 6000 VA

PowerWalker VFI 6000 RTG PF1 Art No. 10122132
