General features
Type Online
Power capacity 3000VA / 3000W
Output Power Factor 1.00
Input
Input Voltage Range 160-300V 100% load, 110-160V derating to 50% load linearly
Max THDi ≤5%
Input PF > 0.99 at full load
Frequency Range 40Hz - 70Hz
Frequency (Synchronized Range) 45Hz - 55Hz or 54Hz - 66Hz @ load>60%
Output
Nominal Output Voltage 200/208/220/230/240 VAC (derating 10% at 208V, derating 20% at 200V)
Pure Sine Wave Yes
THDv <1% linear load; <5% nonlinear load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,2Hz
Technical details
Load Crest Ratio 3:1
CVCF Yes, but requires de-rating to 50%
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Transfer Time [ECO to Inverter] 10ms
Generator support Yes
Overload Capacity 100%105%< load ≤125% for 5 minutes
125>150% for 500ms.
External Battery Connection Yes
Charger 1.5A
Fan Logic Always on, automatic speed control

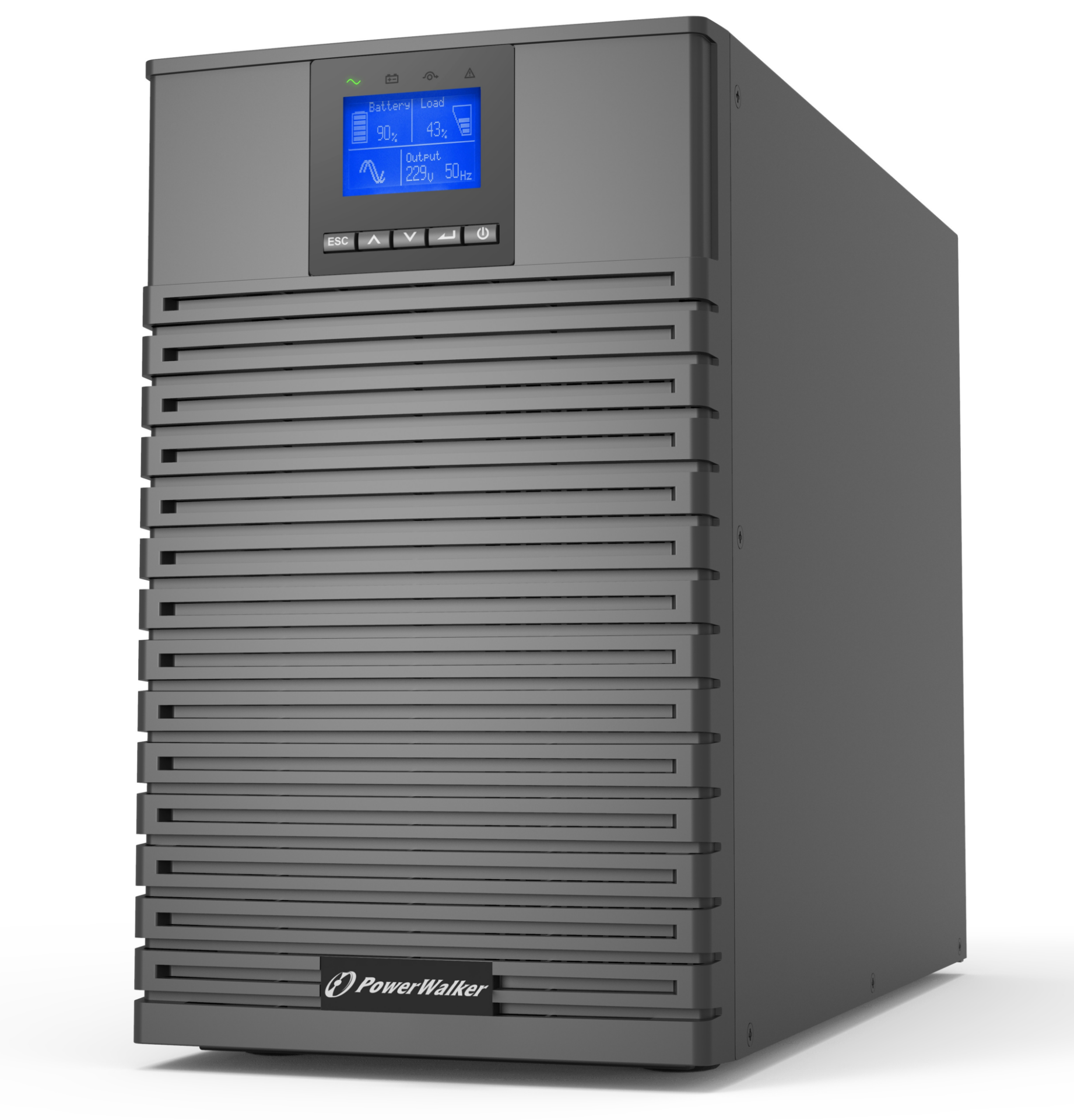

LED Indicators Online Mode, Battery Mode, Bypass Mode and Fault Mode
LCD Indicators Load level, Battery level, Input/Output voltage, UPS Status, Event Log, UPS Measurements, UPS Control, UPS Settings and UPS Identification (IoT connection required Information).
Efficiency
LINE mode full Load 93.0%
Batteries and autonomy time
Batteries 6x 12V/9Ah
DC Voltage 6 x 12V
Recharge Time 3h to 90%

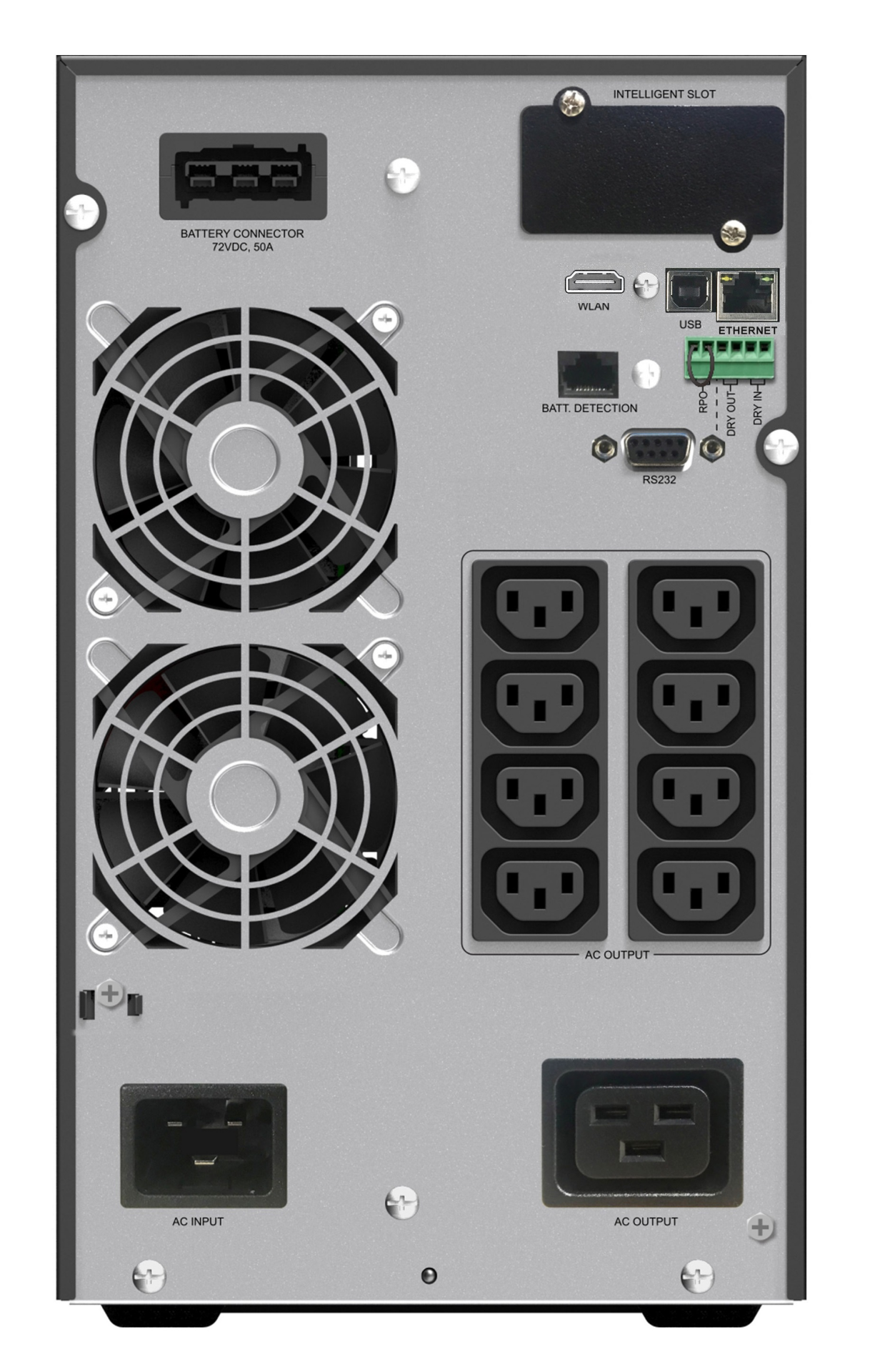

Connections and communication
IEC C13 Outlet 8
IEC C19 Outlet 1
Input C20
Software WinPower
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
Dry Contacts Yes
EPO Port Yes
Environment
Noise Level < 50dB
Temperature 0°C – 45°C
Humidity 0% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-311
Package Content USB Cable, 2x IEC Cable, Input Power Cable, Manual, Product
Manual Languages EN/DE/FR
EAN 4260074982862
Width 192 mm
Height 318 mm
Depth 428 mm
Weight 26.4 kg
Giftbox - Width 590 mm
Giftbox - Height 475 mm
Giftbox - Depth 330 mm
Giftbox - Weight 28.9 kg
Pcs. per box 1
Pcs. per layer 2
