Type Online
Power capacity 2000VA / 1800W
Output Power Factor 0.90
Input
Input Voltage Range 120-276 VAC Depends on Load Level
Max THDi ≤5%
Input PF ≥ 0.99 at full load
Frequency Range 45Hz - 55Hz or 54Hz - 66Hz
Frequency (Synchronized Range) 45Hz - 55Hz or 54Hz - 66Hz
Output
Nominal Output Voltage 208/220/230/240 VAC
Pure Sine Wave Yes
THDv ≤2% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,2Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 0ms
Transfer Time [Inverter to ECO] 1ms
Transfer Time [ECO to Inverter] <10ms (7-8ms typical)
Bypass Before UPS Power-on: Default “No” Change to “Yes” via display panel
Overload und UPS Failure: Automatically transfer to bypass
By Setting: Voltage Rang: 120-276V ± 3%
Generator support Yes
Overload Capacity 12s @102%-130%; 1.5s @130%-150%; 100ms @ >150%
External Battery Connection Yes
Charger 1.5A
Fan Logic Always on, automatic speed control
LCD Indicators UPS status, Load level, Battery level, Input/Output voltage, AC mode, battery mode, Bypass mode, fault conditions; LCD Display colour : Blue, red, red flashing (depends on UPS status), direction swappable (rack/tower)
Efficiency
LINE mode full Load 89.6%
Energy Star compliance Yes
Batteries and autonomy time
Batteries 4x 12V/9Ah
DC Voltage 4 x 12V
Recharge Time 3h to 90%
Full Load Backup Time 3min
Half Load Backup Time 10min

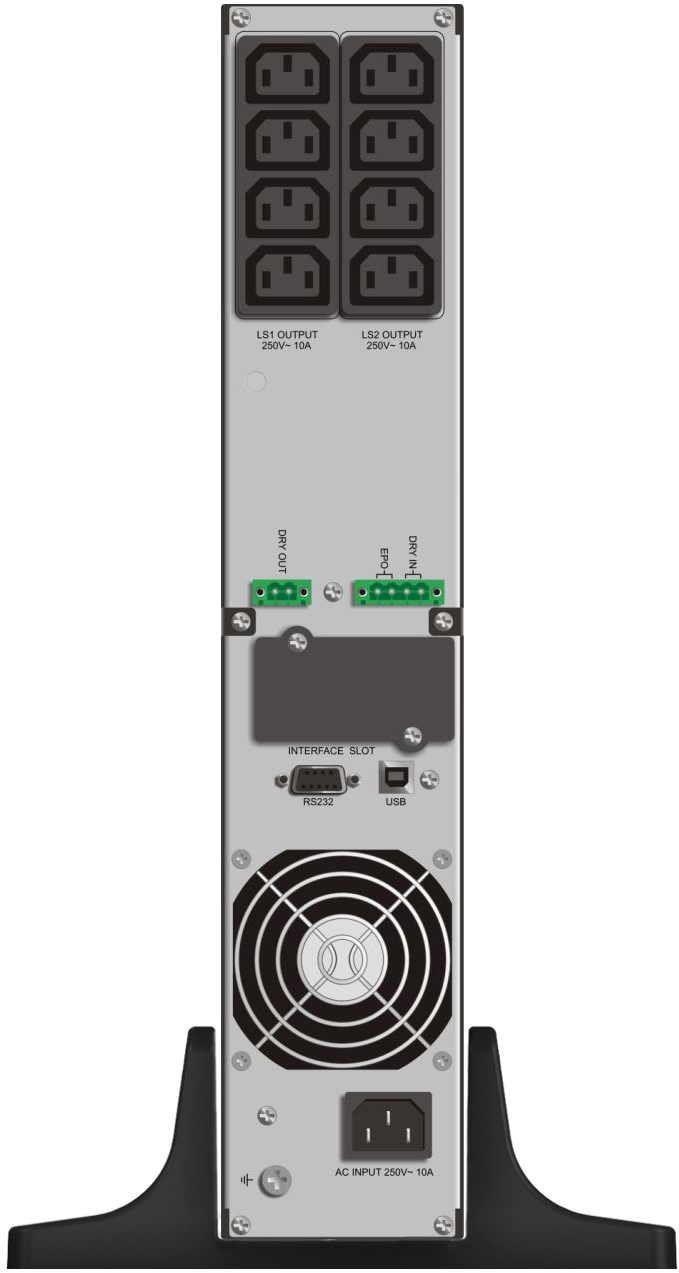

Connections and communication
IEC C13 Outlet 8
Programmable Outlets Yes
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
Dry Contacts Yes
EPO Port Yes
Environment
Noise Level < 45dB
Temperature 0°C – 40°C
Humidity 0% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-311
Package Content UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable, RS-232 Cable, Tower holder, Rack Ears, EPO Plug, Dry Contacts Plug
Manual Languages EN/DE/FR/RU/PL
EAN 4260074974843
Width 438 mm
Height 86.5 mm
Depth 436 mm
Weight 19.7 kg
Giftbox - Width 535 mm
Giftbox - Height 215 mm
Giftbox - Depth 535 mm
Giftbox - Weight 22.7 kg
