General features
Type Online
Power capacity 2000VA / 1800W
Output Power Factor 0.90
Input
Input Voltage Range Voltage Range Low Line Transfer
110-160VAC ± 5% depending on load level
Voltage Range Low Line Comeback
125-175VAC ± 5% depending on load level
Voltage Range High Line Transfer
300VAC ± 5%
Voltage Range High Line Comeback
290VAC ± 5VAC
Input PF ≥ 0.99 at full load
Frequency Range 40Hz - 70Hz
Frequency (Synchronized Range) 47Hz - 53Hz or 57Hz - 63Hz
Output
Nominal Output Voltage 208/220/230/240 VAC
Pure Sine Wave Yes
THDv ≤2% Full Linear Load; ≤4% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,1Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support Yes
Overload Capacity Line: Warning @100%-110%; Bypass @>110%; BAT: Warning @100%-110%; 30s @110%-130%; Shutdown @>130%
External Battery Connection Yes
Fan Logic Internal temperature > 50degC: high speed;
Inverter NTC temperature > 80degC: high speed;
CFCV Mode: high speed;
ECO, Bypass, Standby Mode: low speed;
Load <60%: low speed;
Load 60-80%: half speed;
Load > 80%: high speed;
Efficiency
LINE mode full Load 90.0%
BATTERY mode full Load 88.0%
Batteries and autonomy time
Batteries 6x 12V/7Ah
DC Voltage 6 x 12V
Recharge Time 4h to 90%

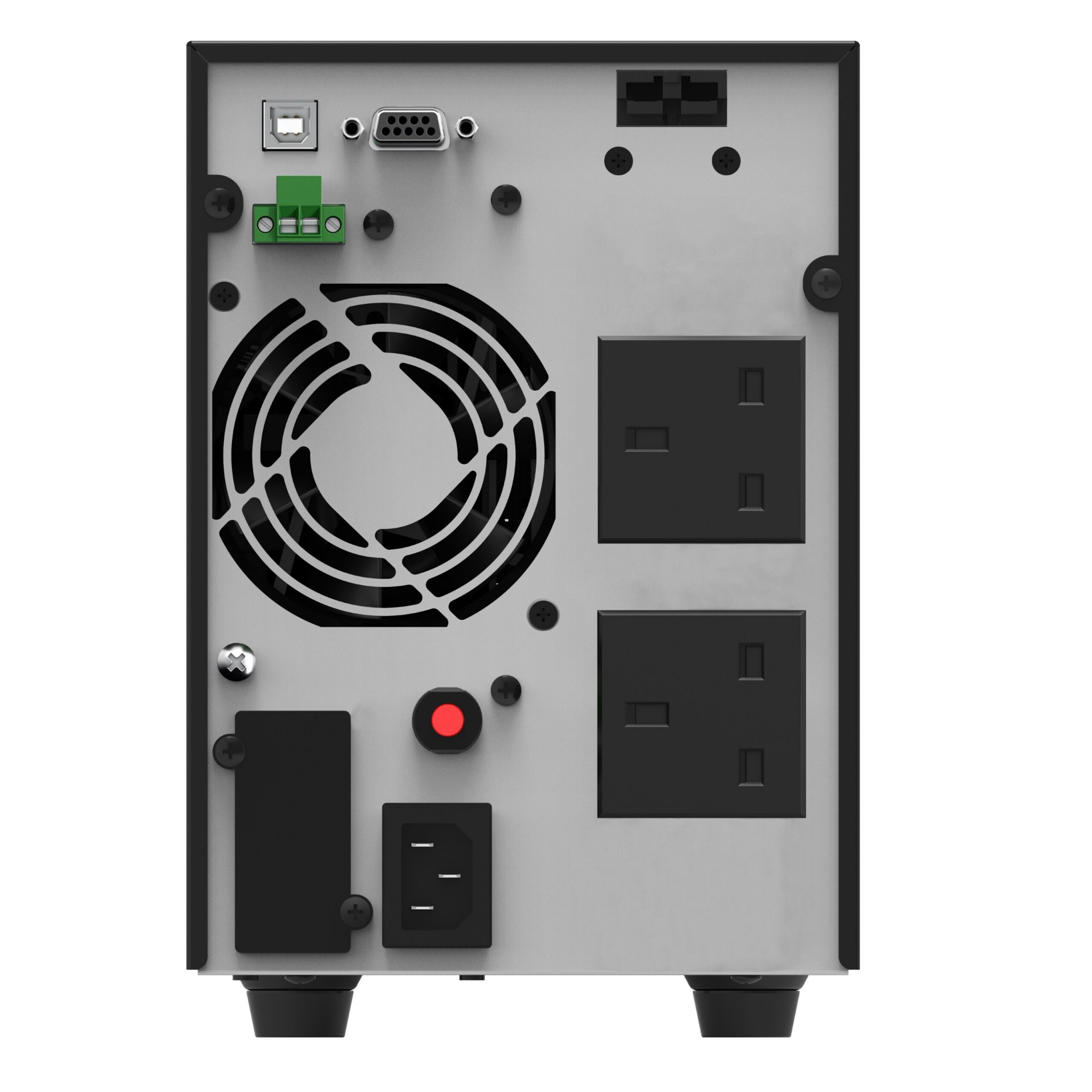

Connections and communication
IEC C13 Outlet 8
Programmable Outlets Yes
Input C14-UK
Software ViewPower
USB port Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level < 45dB
Temperature 0°C – 40°C
Humidity 20% - 90% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-111
Package Content UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable
Manual Languages EN/DE/FR/ES/RU/IT/PT/TR/PL
EAN 4260074974805
Width 190 mm
Height 318 mm
Depth 421 mm
Weight 26 kg
Giftbox - Width 320 mm
Giftbox - Height 460 mm
Giftbox - Depth 560 mm
Giftbox - Weight 28.5 kg
Pcs. per box 1
