| GENERAL FEATURES |
| Type | Online Single Phase (VFI) |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Rack, Tower |
| Rack Units [U] | 2U |
| Power Capacity | 2000VA / 1600W |
| Output Power Factor | 0.80 |
| INPUT |
| Input Voltage Range | 110-300 VAC at 50% load
160-280 VAC at 100% load |
| Frequency Range | 40Hz – 70Hz (self-adaptive to 50/60Hz) |
| Frequency (Synchronized Range) | 47Hz – 53Hz or 57Hz – 63Hz |
| OUTPUT |
| Waveform | Pure Sine Wave |
| Nominal Output Voltage | 200/208/220/230/240 VAC |
| THDv | ≤3% @ 100% linear load, ≤6% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) | ±1% |
| Frequency (Battery Mode) | ±0.3Hz |

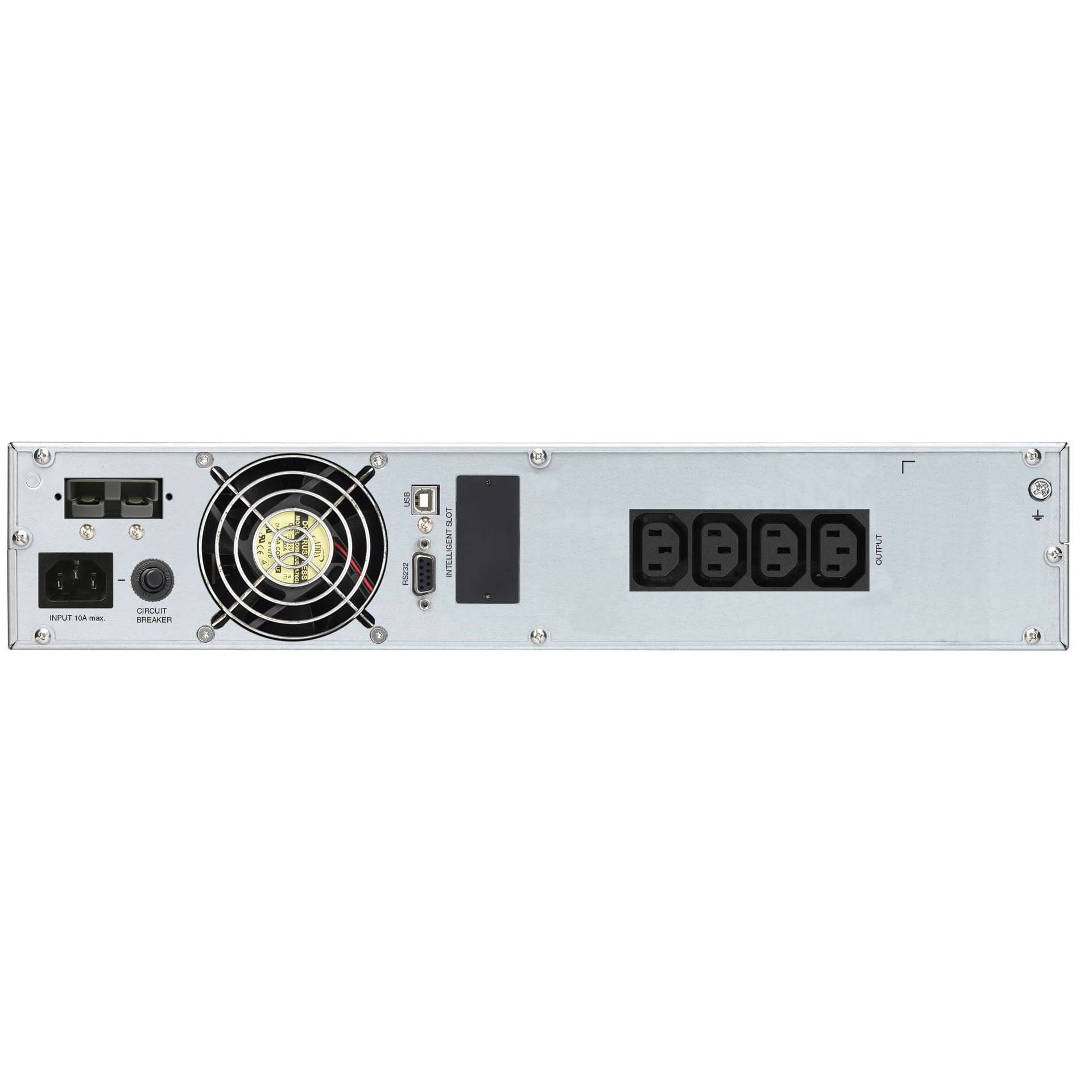

| INPUT & OUTPUT CONNECTORS |
| Input Connector | C14 |
| Output Type | IEC |
| IEC C13 | 4 |
| TECHNICAL DETAILS |
| LINE Mode Efficiency [%] (Full Load) | 89.0 |
| Battery Mode Efficiency [%] (Full Load) | 87.0 |
| Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] | 10ms |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 0ms |
| Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] | 10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | 4ms |
| Load Crest Ratio | 3:1 |
| Additional Features | ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, Hot-Swappable Batteries, APFC – High Input PF, LCD Display, Battery Pack Available, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device |
| IEC 62040-3 classification | VFI-SS-111 |
| BATTERIES AND AUTONOMY |
| Batteries | 4x 12.0V/9.0Ah |
| DC Voltage | 4x 12.0V |
| Recharge Time | 9h to 90% |
| Full Load Backup Time [min] | 4.0 |
| Half Load Backup Time [min] | 12.0 |
| Charger | 1A |
| External Battery Pack | Yes |
| COMMUNICATION |
| Communication | Dry contact, RS-232, Management Card Slot |
| Software | ViewPower |
| ENVIRONMENT |
| Noise Level | < 50dB |
| Fan Logic | Always on, Automatic Speed Control |
| Temperature | 0°C – 40°C |
| Humidity | 20% – 90% RH (non-condensing) |
| IP | IP 20 |
| LOGISTICS |
| Package Content | Rack Ears, Input Power Cable, Manual, USB Cable, Tower Holder, UPS |
| Manual Languages | DE, PL, EN |
| EAN | 4260074977189 |
| Product Dimensions (DxWxH) [mm] | 410 x 438 x 88 mm |
| Product Weight [kg] | 19.0 |
| Package Dimensions (DxWxH) [mm] | 560 x 500 x 180 mm |
| Package Weight [kg] | 23.0 |
| Pcs. per Outer Carton | 1 |
