| General features |
| Type | Online |
| Power capacity | 1500VA / 1350W |
| Output Power Factor | 0.90 |
| Input |
| Input Voltage Range | Voltage Range Low Line Transfer
110-160VAC ± 5% depending on load level
Voltage Range Low Line Comeback
125-175VAC ± 5% depending on load level
Voltage Range High Line Transfer
300VAC ± 5%
Voltage Range High Line Comeback
290VAC ± 5VAC |
| Input PF | ≥ 0.99 at full load |
| Frequency Range | 40Hz - 70Hz |
| Frequency (Synchronized Range) | 47Hz - 53Hz or 57Hz - 63Hz |
| Output |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Pure Sine Wave | Yes |
| THDv | ≤2% Full Linear Load; ≤4% Non-Linear Load |
| Voltage Regulation (Bat. Mod.) | ±1% |
| Frequency (Battery Mode) | ±0,1Hz |
| Technical details |
| Load Crest Ratio | 3:1 |
| CVCF | Yes, but requires de-rating to 60% |
| Transfer Time [AC to Battery] | 0ms |
| Transfer Time [Inverter to Bypass] | 4ms |
| Generator support | Yes |
| Overload Capacity | Line: Warning @100%-110%; Bypass @>110%; BAT: Warning @100%-110%; 30s @110%-130%; Shutdown @>130% |
| External Battery Connection | Yes |
| Fan Logic | Internal temperature > 50degC: high speed;
Inverter NTC temperature > 80degC: high speed;
CFCV Mode: high speed;
ECO, Bypass, Standby Mode: low speed;
Load <60%: low speed;
Load 60-80%: half speed;
Load > 80%: high speed; |
| Efficiency |
| LINE mode full Load | 90.0% |
| BATTERY mode full Load | 86.0% |
| Batteries and autonomy time |
| Batteries | 3x 12V/9Ah |
| DC Voltage | 3 x 12V |
| Recharge Time | 4h to 90% |

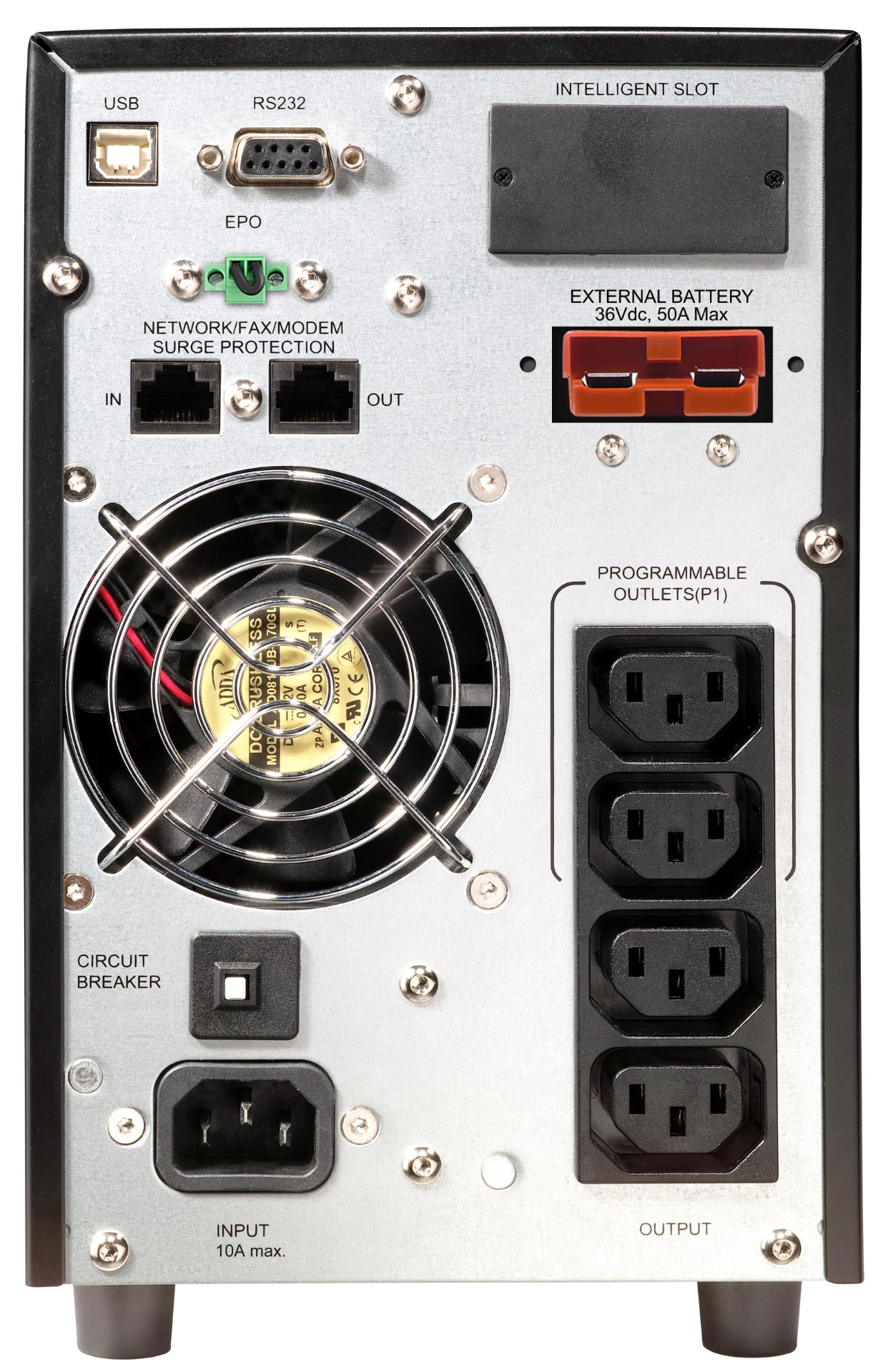

| Connections and communication |
| IEC C13 Outlet | 4 |
| Programmable Outlets | Yes |
| Input | C14-UK |
| Software | ViewPower |
| USB port | Yes |
| RS-232 Port | Yes |
| Extension Slot | Yes, 1 |
| EPO Port | Yes |
| RJ-45/RJ-11 protection | Yes |
| Environment |
| Noise Level | < 45dB |
| Temperature | 0°C – 40°C |
| Humidity | 20% - 90% RH (non-condensing) |
| Logistics |
| IEC 62040-3 classification | VFI-SS-111 |
| Package Content | UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable |
| Manual Languages | EN/DE/FR/ES/RU/IT/PT/TR/PL |
| EAN | 4260074974799 |
| Width | 145 mm |
| Height | 221 mm |
| Depth | 397 mm |
| Weight | 14 kg |
| Giftbox - Width | 235 mm |
| Giftbox - Height | 325 mm |
| Giftbox - Depth | 470 mm |
| Giftbox - Weight | 16.1 kg |
| Pcs. per box |
