| Type | Online Single Phase (VFI) |
| Phases (IN-OUT) | 1-1 |

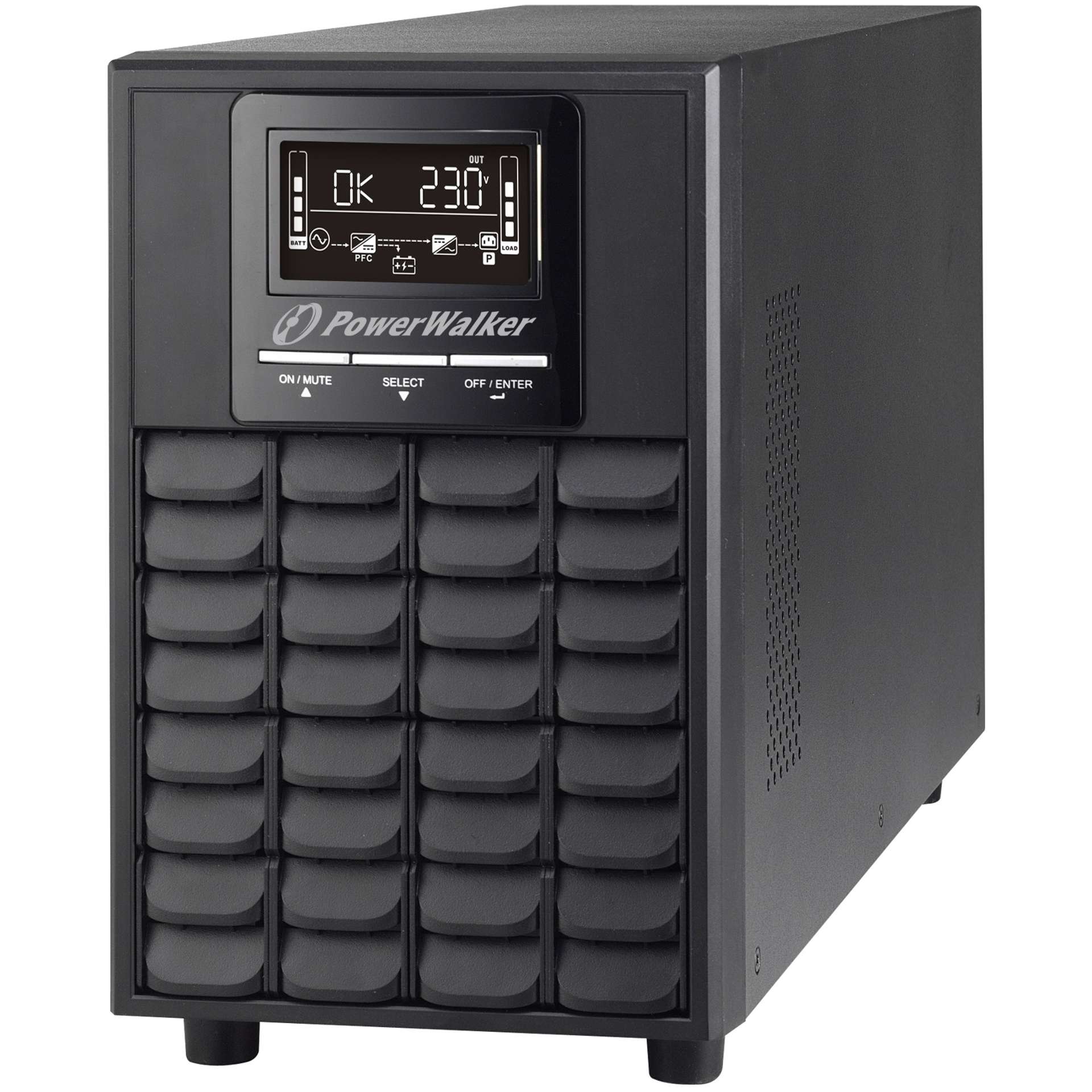

| Form Factor | Tower |
| Power Capacity | 1500VA / 1500W |
| Output Power Factor | 1.00 |
| INPUT | |
| Input Voltage Range | Line Low Transfer: 110-160VAC ± 5% depending on load level Line Low Comeback: 125-175VAC ± 5% depending on load level Line High Transfer: 300VAC ± 5% Line High Comeback: 290VAC ± 5VAC |
| Max THDi | ≤ 5% @ 205-245VAC; THDu ≤ 1.6% @ input and full linear load condition |
| Frequency Range | 40Hz – 70Hz |
| Frequency (Synchronized Range) | 47Hz – 53Hz or 57Hz – 63Hz |
| OUTPUT | |
| Waveform | Pure Sine Wave |
| Nominal Output Voltage | 200/208/220/230/240 VAC |
| THDv | ≤2% @ 100% linear load, ≤4% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) | ±1% |
| Frequency (Battery Mode) | ±0.1Hz |

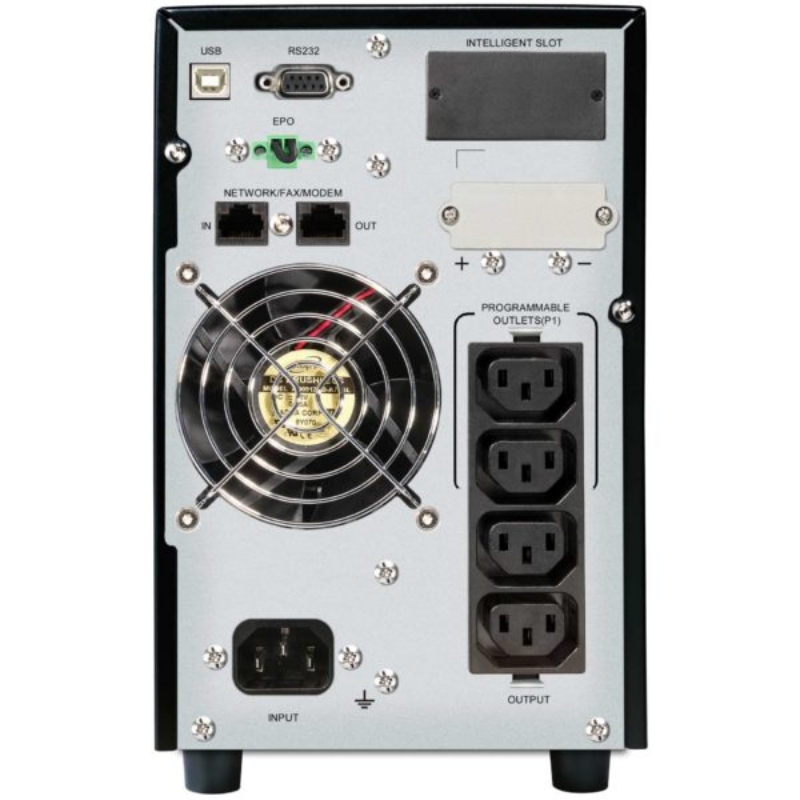

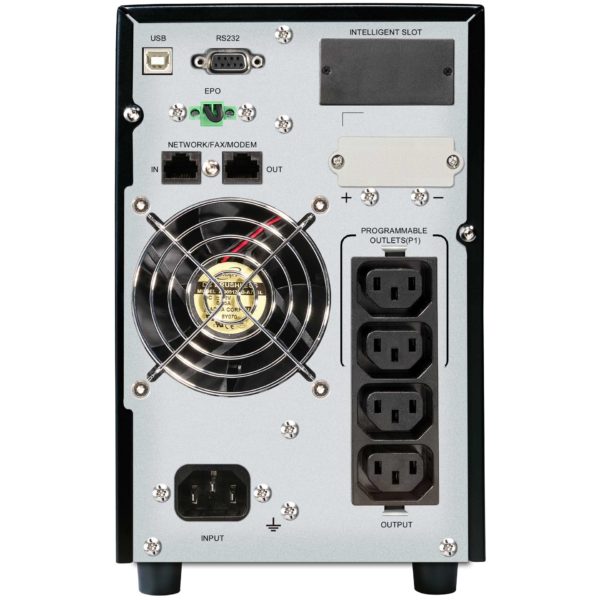

| INPUT & OUTPUT CONNECTORS | |
| Input Connector | C14-UK |
| Output Type | IEC – UK |
| IEC C13 | 4 |
| TECHNICAL DETAILS | |
| LINE Mode Efficiency [%] (Full Load) | 89.0 |
| Battery Mode Efficiency [%] (Full Load) | 88.0 |
| Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] | 10ms |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 0ms |
| Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] | 10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | 4ms |
| Load Crest Ratio | 3:1 |
| Data Line Protection | RJ-11 Port, RJ-45 Port (100mbit) |
| Additional Features | ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, LCD Display, Unity Power Factor 1.0, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, AVR – Automatic Voltage Regulator |
| IEC 62040-3 classification | VFI-SS-111 |
| BATTERIES AND AUTONOMY | |
| Batteries | 3x 12.0V/9.0Ah |
| DC Voltage | 3x 12.0V |
| Recharge Time | 3h to 90% |
| Full Load Backup Time [min] | 3.0 |
| Half Load Backup Time [min] | 10.3 |
| Charger | 1A, 2A, 4A, 6A, 8A, 10A, 12A [2A] |
| External Battery Pack | Yes |
| COMMUNICATION | |
| Communication | USB Type B – for Monitoring Software, RS-232, Management Card Slot |
| Software | ViewPower |
| ENVIRONMENT | |
| Noise Level | < 50dB |
| Fan Logic | Always on, Automatic Speed Control |
| Temperature | 0°C – 40°C |
| Humidity | 20% – 95% RH (non-condensing) |
| IP | IP 20 |
| LOGISTICS | |
| Package Content | Input Power Cable, Manual, 2x IEC Cable, USB Cable, UPS |
| Manual Languages | DE, RU, PL, EN |
| EAN | 4260074980004 |
| Product Dimensions (DxWxH) [mm] | 397 x 145 x 221 mm |
| Product Weight [kg] | 14.6 |
| Package Dimensions (DxWxH) [mm] | 472 x 230 x 325 mm |
| Package Weight [kg] | 16.0 |
| Pcs. per Outer Carton | 1 |
| Attribute name | Attribute value |
|---|---|
| UPS Type | On-line |
| Output Connections | C13 |
| Form Factor | Tower |
| UPS Power Capacity | 1500W |
| UPS Features | Pure Sine Wave |
