| GENERAL FEATURES | |
| Type | Online Single Phase (VFI) |
| Phases (IN-OUT) | 1-1 |

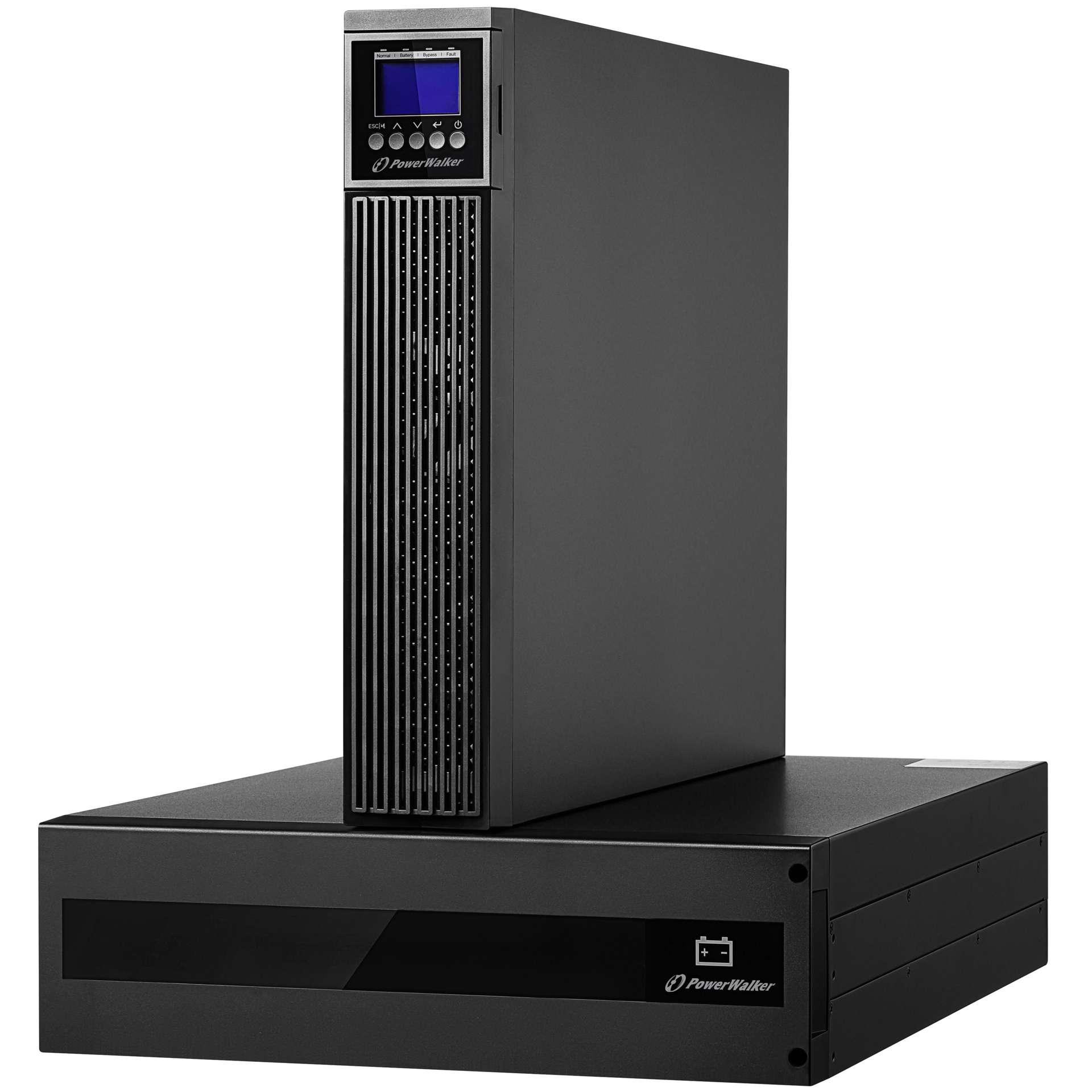

| Form Factor | Rack, Tower |
| Rack Units [U] | 5U |
| Power Capacity | 10000VA / 10000W |
| Output Power Factor | 1.00 |
| INPUT | |
| Input Voltage Range | 160-276 VAC at 100% load 110-160VAC range linear between 50-100% load |
| Frequency Range | 45Hz – 55Hz / 55Hz – 65Hz 40Hz – 70Hz at load ≤60% |
| Frequency (Synchronized Range) | 45Hz – 55Hz at 50Hz nominal 54Hz – 66Hz at 60Hz nominal and >60% rated load |
| OUTPUT | |
| Waveform | Pure Sine Wave |
| Nominal Output Voltage | 208/220/230/240 VAC |
| THDv | ≤1% @ 100% linear load, ≤5% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) | ±1% |
| Frequency (Battery Mode) | ±0,1% |

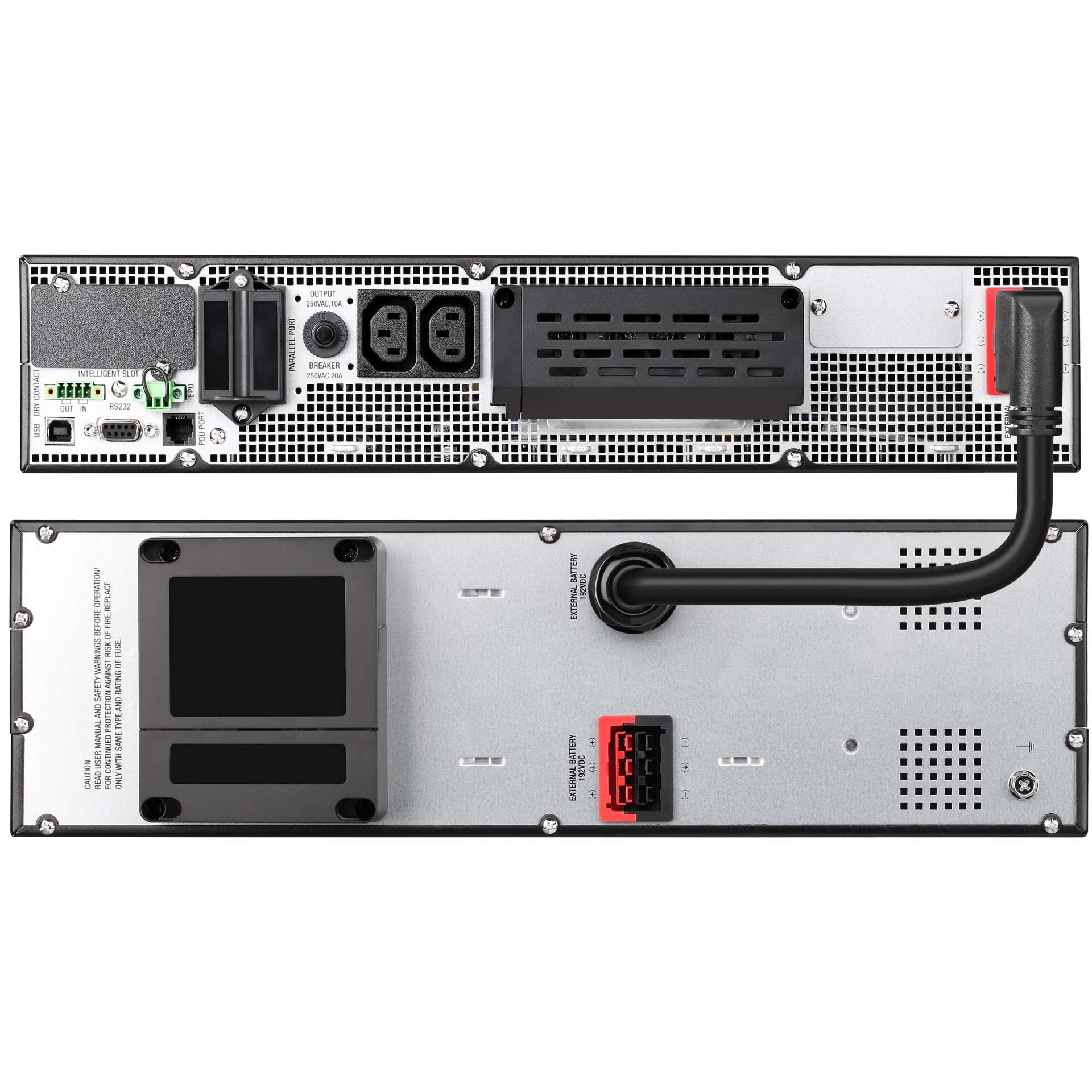

| INPUT & OUTPUT CONNECTORS | |
| Input Connector | Terminal |
| IEC C13 | 4 |
| IEC C19 | 2 |
| Terminal Output | Yes |
| TECHNICAL DETAILS | |
| LINE Mode Efficiency [%] (Full Load) | 95.0 |
| Battery Mode Efficiency [%] (Full Load) | 93.0 |
| Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] | 10ms |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 0ms |
| Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] | 10ms |
| Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | 0ms |
| Load Crest Ratio | 3:1 |
| Additional Features | ECO Mode Available, CVCF Mode Available, Potential Equalization Screw, Hot-Swappable Batteries, Parallel Connectivity, APFC – High Input PF, LCD Display, Input Breaker, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device |
| IEC 62040-3 classification | VFI-SS-111 |
| BATTERIES AND AUTONOMY | |
| Batteries | 16x 12.0V/9.0Ah |
| DC Voltage | 16x 12.0V |
| Recharge Time | 3h to 90% |
| Full Load Backup Time [min] | 2.0 |
| Half Load Backup Time [min] | 8.0 |
| Charger | 0-4A [2A] |
| External Battery Pack | Yes |
| COMMUNICATION | |
| Communication | Dry contact, USB Type B – for Monitoring Software, RS-232, RJ-45 – for PDU Input |
| Software | WinPower |
| Parallel Operation [Units] | 3 |
| ENVIRONMENT | |
| Noise Level | < 60dB |
| Fan Logic | Always on, Automatic Speed Control |
| Temperature | 0°C – 40°C |
| Humidity | 0% – 95% RH (non-condensing) |
| IP | IP 20 |
| LOGISTICS | |
| Package Content | Bundle (Please see additional packaging information) |
| Manual Languages | EN |
| EAN | 4260074980325 |
| Product Dimensions (DxWxH) [mm] | 593 x 438 x 215 mm |
| Product Weight [kg] | 60.0 |
| Package Weight [kg] | 76.8 |
| Addtional Packaging Information | This product is aBundle Product.For theindividual packaging information please look at the followingArticle Number:10122129 (UPS Engine) + 10134036 (BP)+10133004 (PDU). |
| Pcs. per Outer Carton | 1 |
| Attribute name | Attribute value |
|---|---|
| UPS Type | On-line |
| Output Connections | Terminal |
| UPS Power Capacity | 10KW |
| Form Factor | Tower/Rackmount |
| UPS Features | Pure Sine Wave |
