General functions
Type Online
Energy capacity 1000VA / 800W
Outgoing energy factor 0.80
Input
Incoming voltage range 110-300 VAC at 50% load
160-280 VAC at 100% load
Input PF ≥ 0.99 at full load
Frequency range 40Hz - 70Hz (self-adaptive to 50/60Hz)
Frequency (Synchronized Range) 47Hz - 53Hz or 57Hz - 63Hz
Output
Nominal output voltage 200/208/220/230/240 VAC
Stepper sine wave And
THDv ≤3% Full Linear Load; ≤6% Non-Linear Load
Voltage regulation ±1%
Frequency (Battery Mode) ± 0.3Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support And
Overload Capacity N/A
External Battery Connection And
Charger 1A
Fan Logic Always on, automatic speed control
LCD Indicators UPS status, Load level, Battery level, Input/Output voltage, Discharge Timer, fault conditions
Efficiency
LINE mode full Load 88.0%
Batteries and autonomous time
Batteries 2x 12V / 9Ah
DC Voltage 2 x 12V
Recharge Time 9h to 90%
Full Load Backup Time 4min
Half Load Backup Time 11min

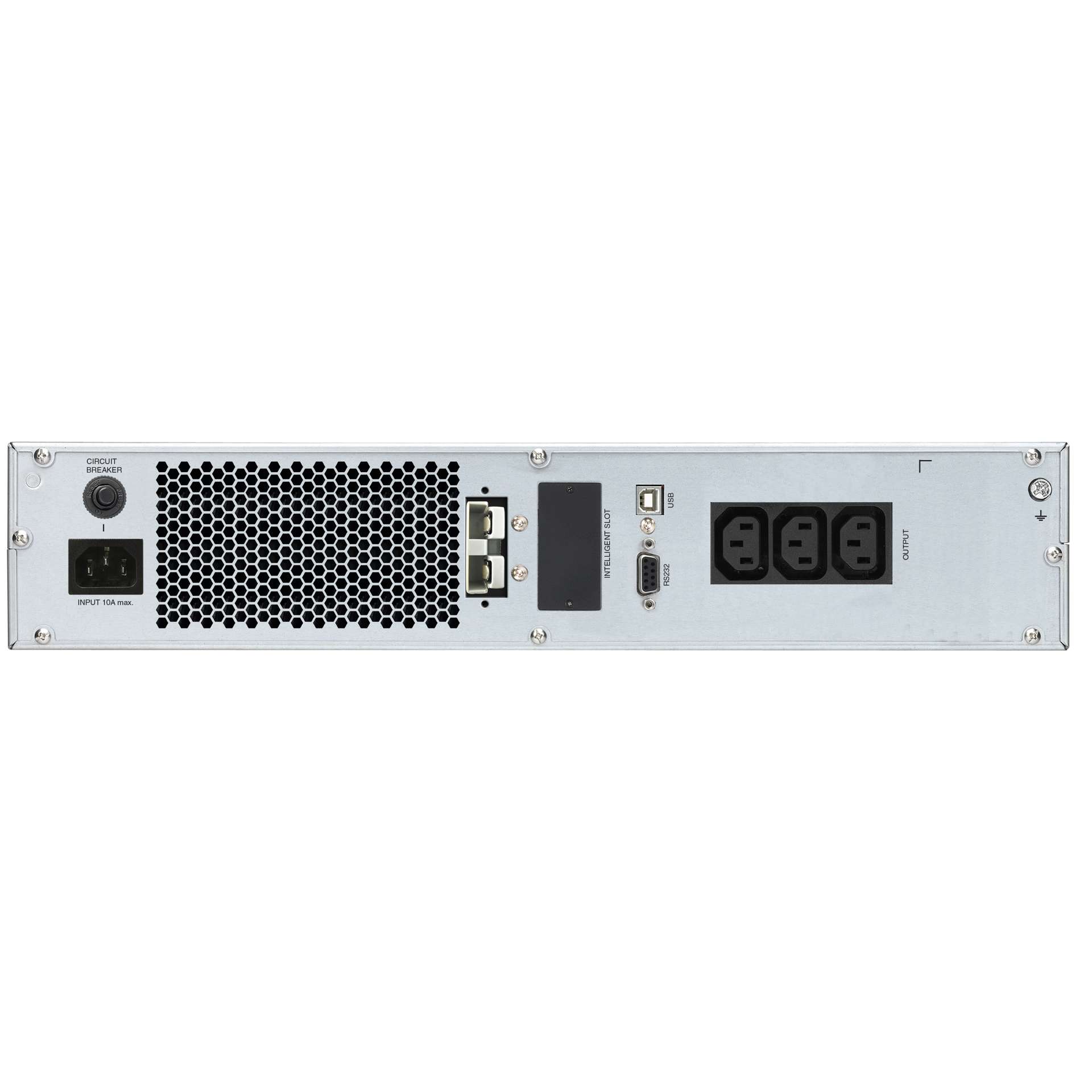

Connections and communication
IEC C13 Outlet 3
Input C14-UK
Program ViewPower
USB port And
RS-232 Port And
Extension Slot And, 1
Environment
Noise level < 50dB
temperature 0°C – 40°C
Moisture 20% - 90% RH (non-condensing)
logistics
IEC 62040-3 classification VFI-SS-111
Package Content UPS, Manual, USB Cable, Input Power Cable, Tower Holder, Rack Ears
Manual Languages AND / DE / PL
EAN 4260074977929
Width 438 mm
Weight 88 mm
Depth 310 mm
Weight 12 kg
Giftbox - Width 500 mm
Giftbox - Weight 180 mm
Giftbox - Deep 400 mm
Giftbox - Weight 13.5 kg
