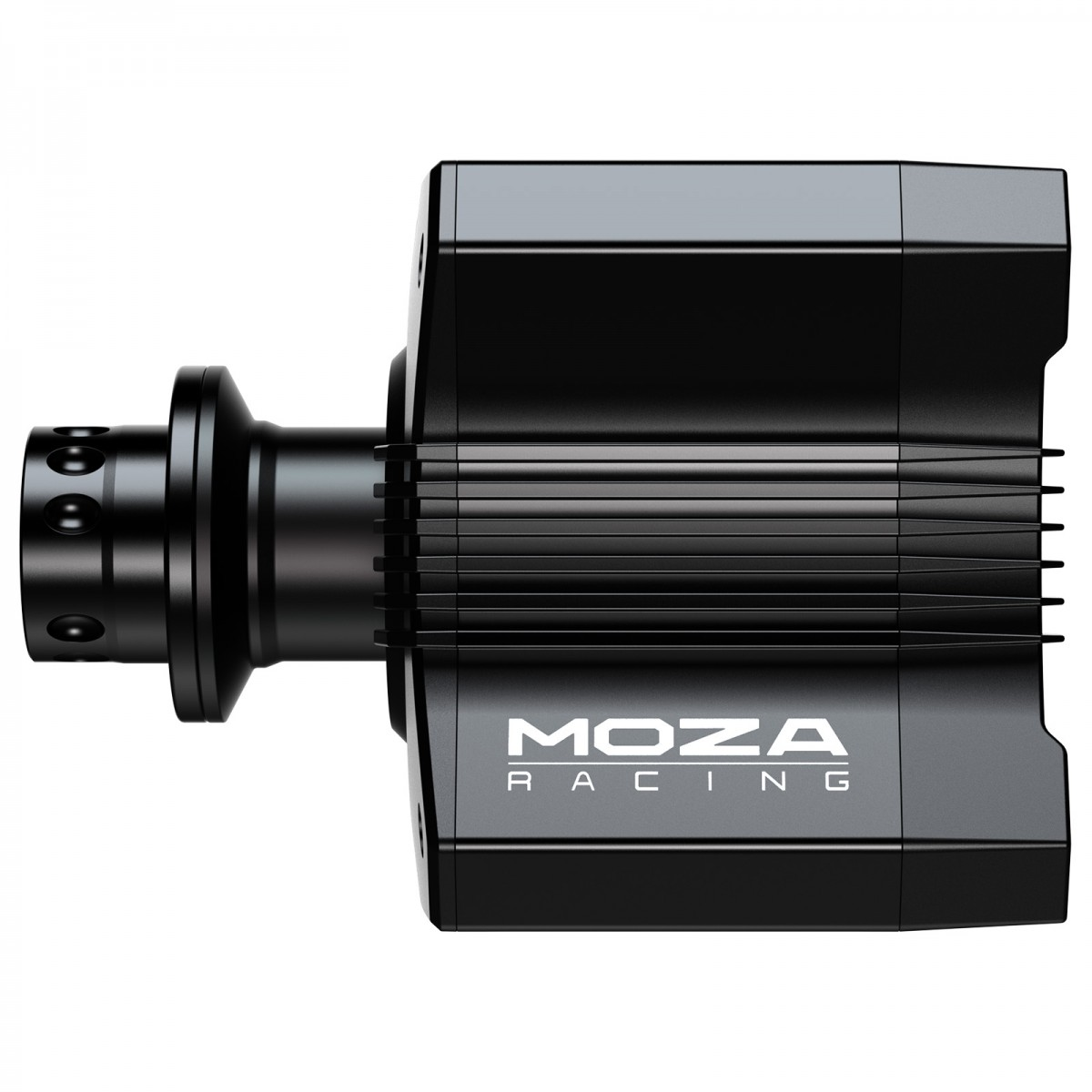

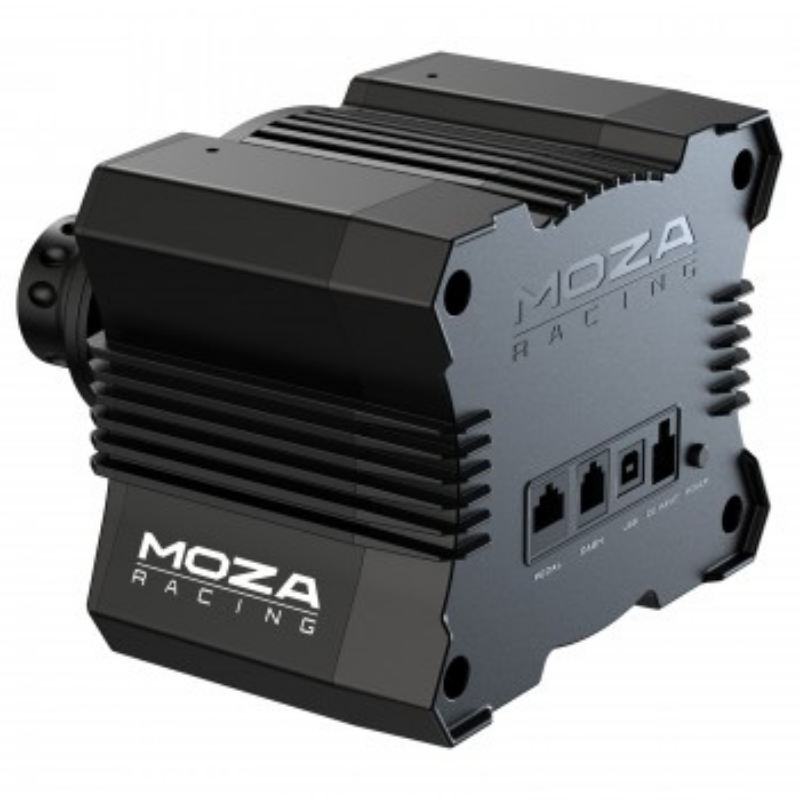

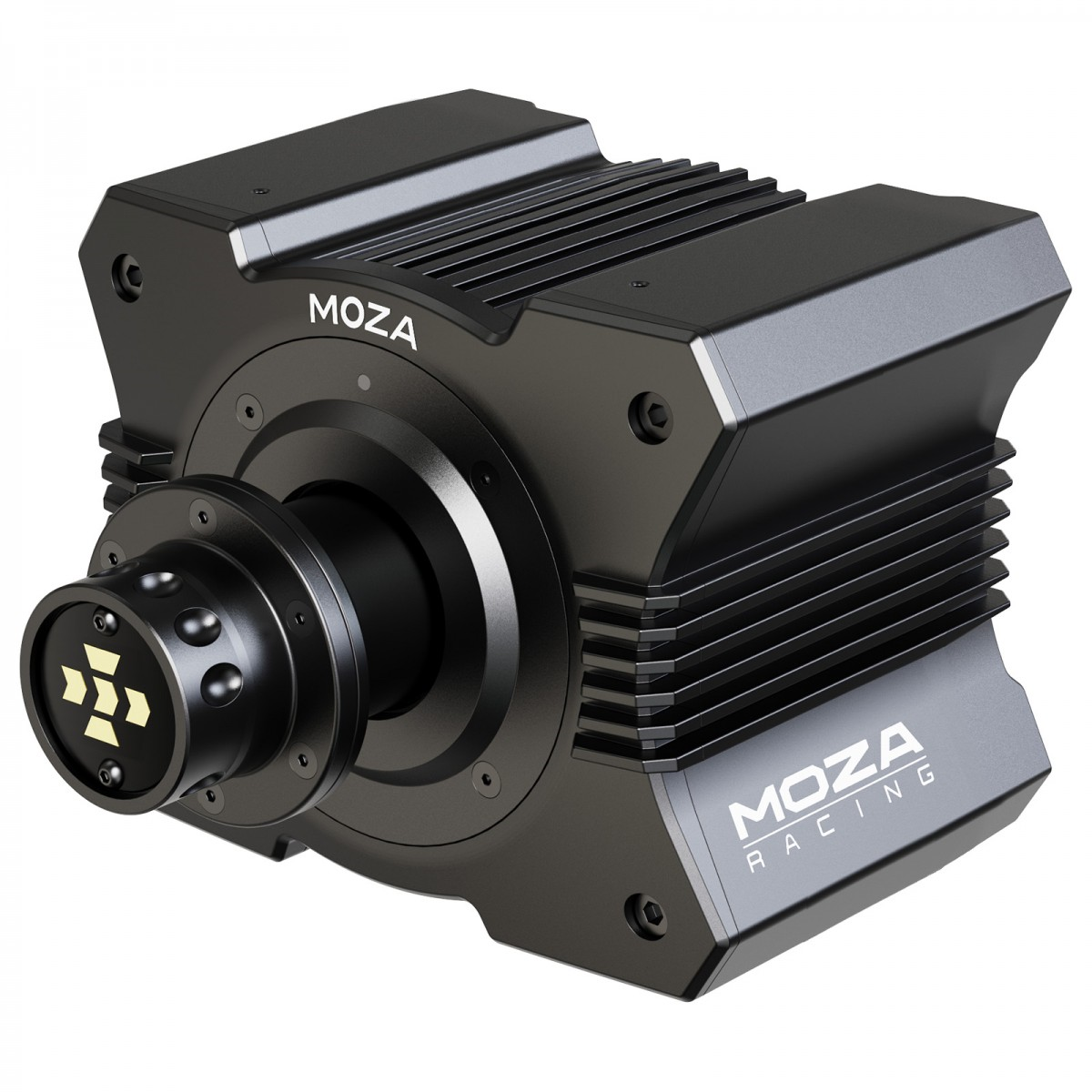

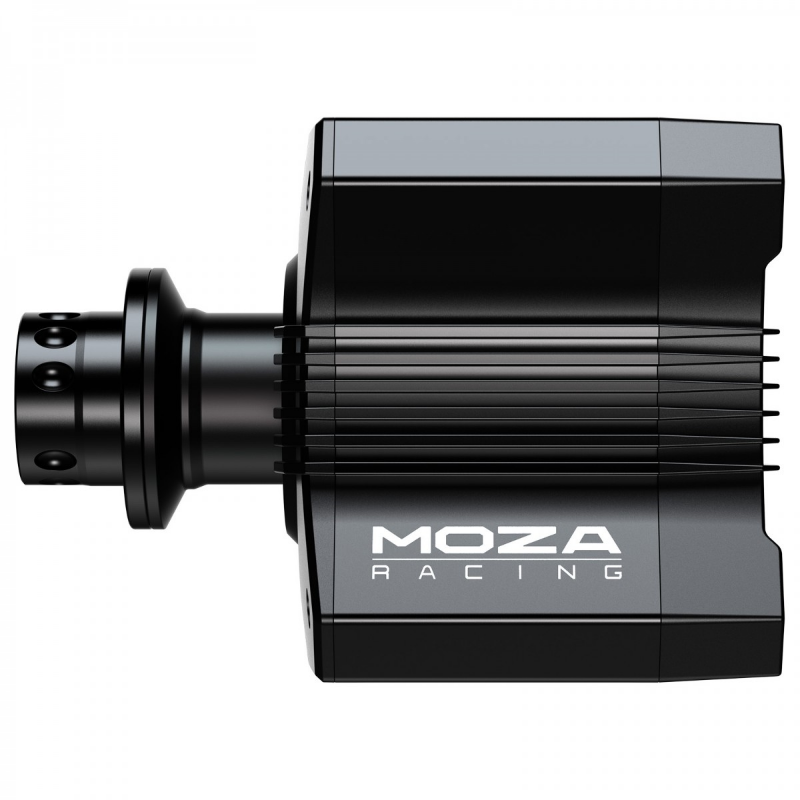

DD R5
Platform
PC

FFB Drive System
Direct Drive

Max Steering Angle
Infinite Rotation

Housing Material
Aviation Grade Aluminum Alloy

Color
Black

Peak Torque
5.5Nm

USB Refresh Rate
1000Hz

Input Voltage
110V~220V AC —>12V DC

Encoder Resolution
15 bits

App Functions
Supported

Quick Release
Supported

Interface
Power, Data, Display, Pedals, Wheel Input

Accessories
User manual, Warranty card, Power supply, USB cable, Toolkit

Mounting Method
4 holes on the bottom

Desktop Mounting Clip
Standard

Online Firmware Upgrade
Supported

Emergency Stop Switch
Optional

Firmware Upgrade
Applicable

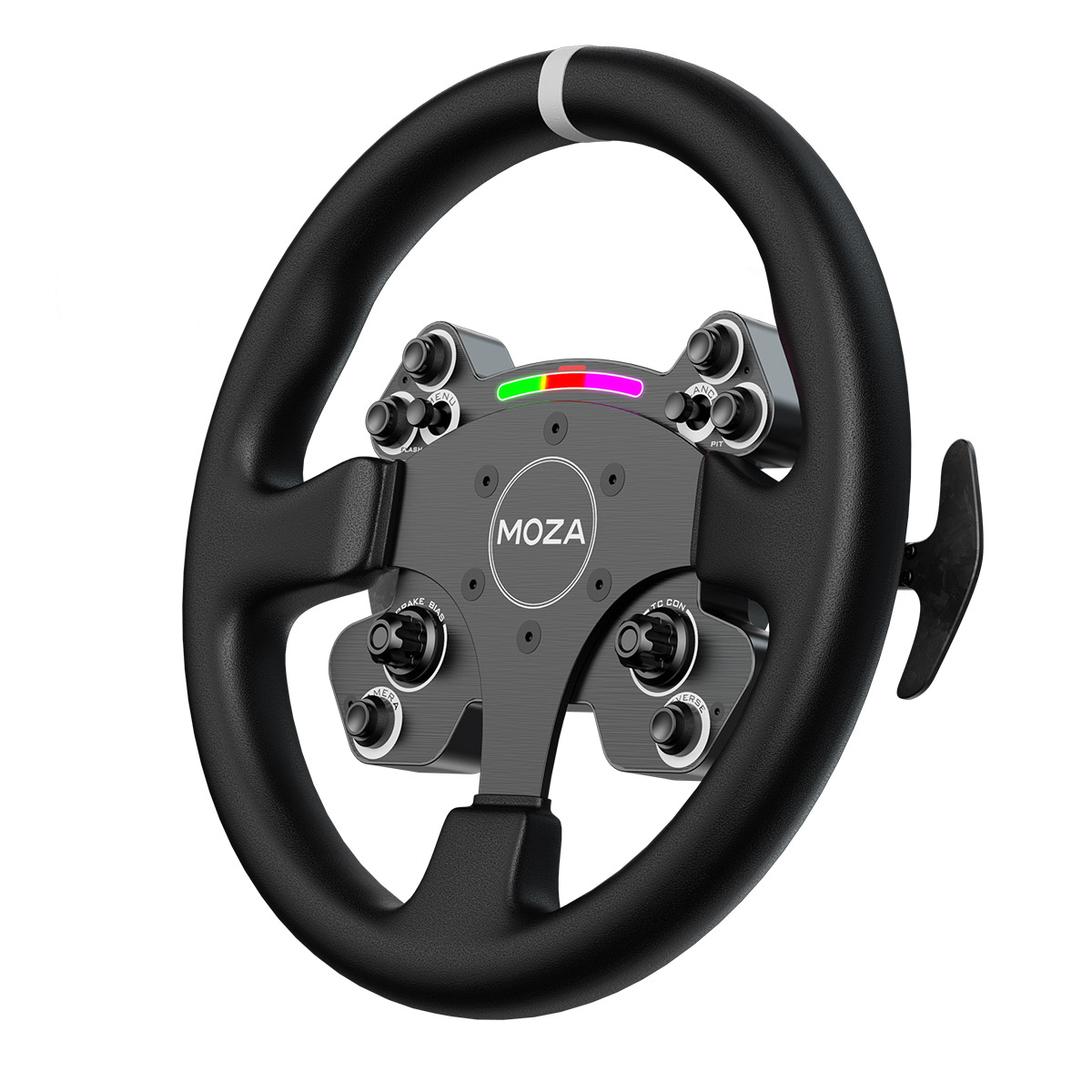

ES Steering Wheel
Wheel Material
Microfiber Leather

Frame and Front Plate Material
Aluminum Alloy

Dial Material
Aluminum Alloy

Size
11 inches

Buttons
22

LED Lamp Beads
10

Intelligent Telemetry
Supported

Configurable LEDS (MOZA Pit House)
Supported

Disassembly method
Quick Release System

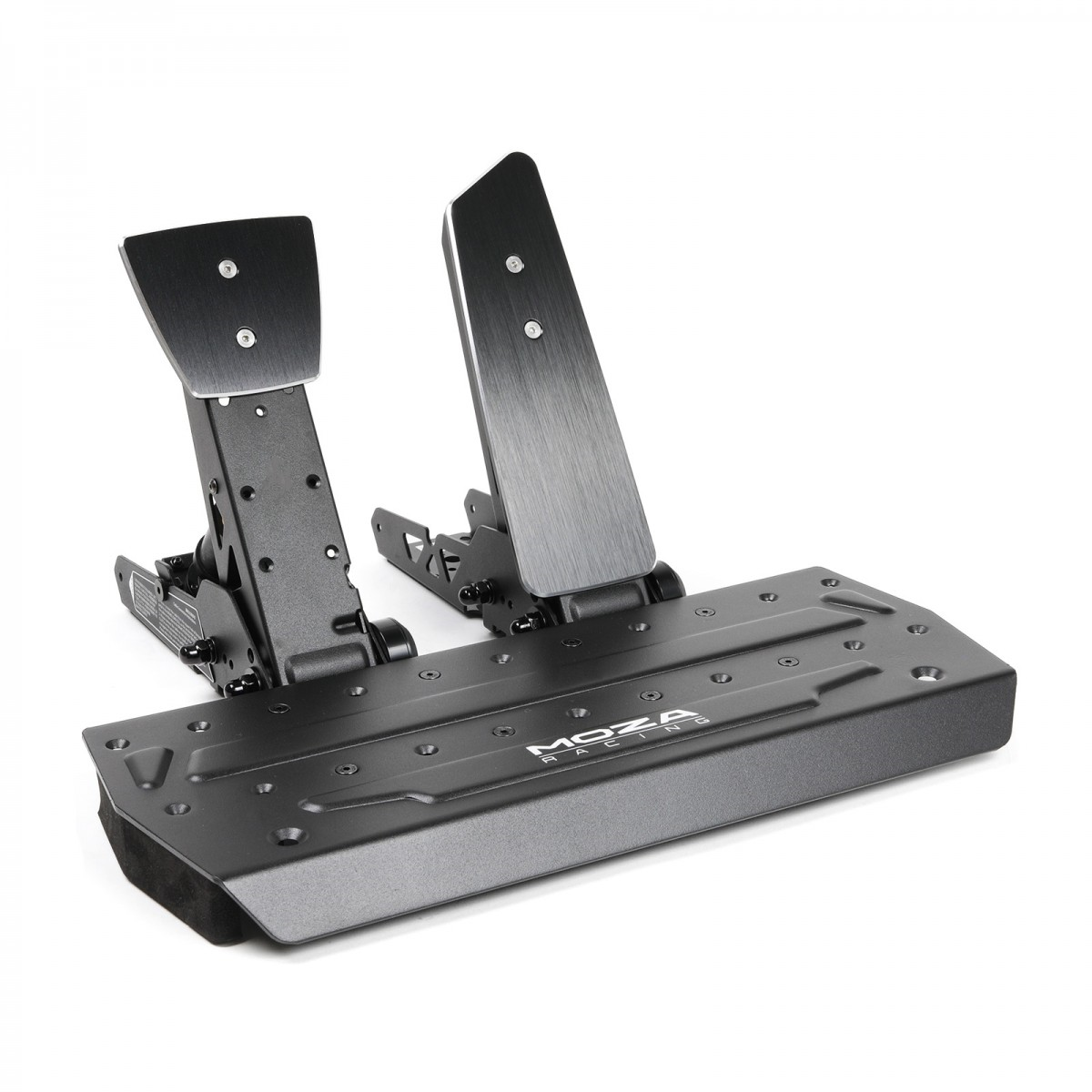

SR-P Lite Pedals
Material
High-strength Steel

Plate Material
High-strength Steel

Color
Black

Pedal Sensor Type
Hall Sensor

Pedal Spacing
Adjustable

Pedal Plate Height
Adjustable

Pedal Input Adjustment
Supported

Pedal Input Reversal
Supported

Pedal Output Curve Adjustment
Supported

Anti-Slip Pad
Included

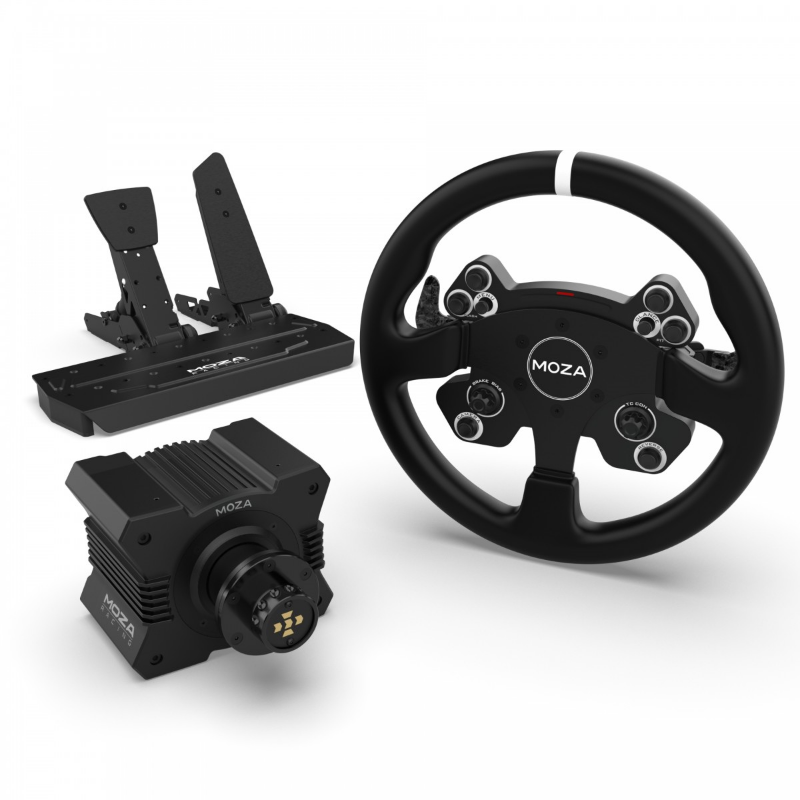

What's Inbox
R5 Wheel Base x1
ES Steering Wheel x1
SR-P Lite Pedals (No Clutch) x1
R5 Table Clamp
15 Degree Desktop Mounting Clip
Power Supply
Power Cable
USB Cable
M4*10 Socket Screws x12
M6*20 Socket Head Screws x2
M8 Nuts x3
M6x12 Socket Head Screws x4
Pedal Fixed Rubber Columns x2
2.5mm Hexagonal Wrench x1
7mm Open End Wrench x1
5mm Hexagonal Wrench x1
Type A to Type B USB Cable x1
M8*12 Hexagonal Screws x3
