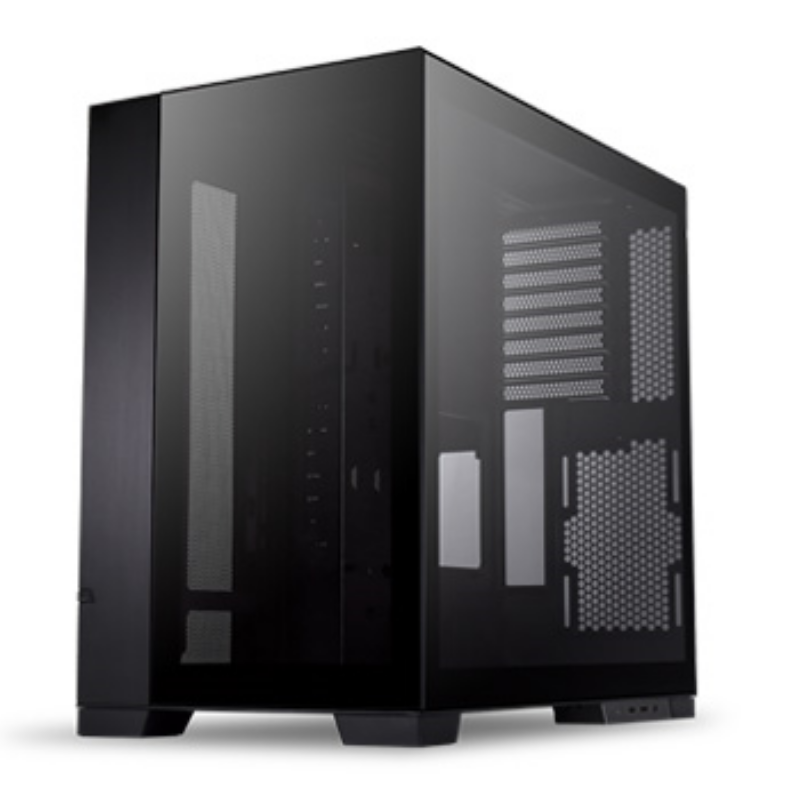

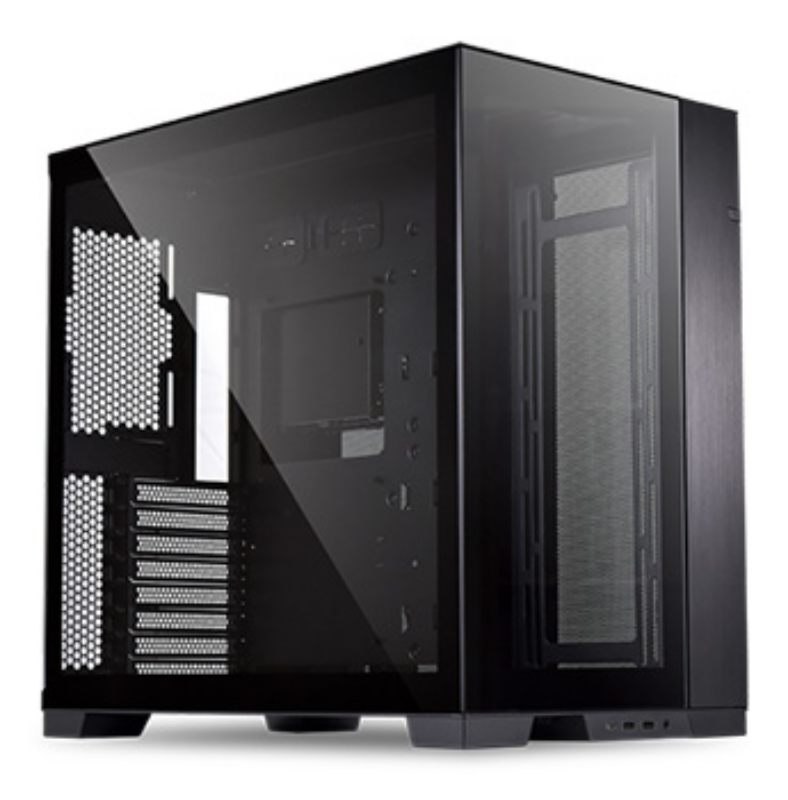

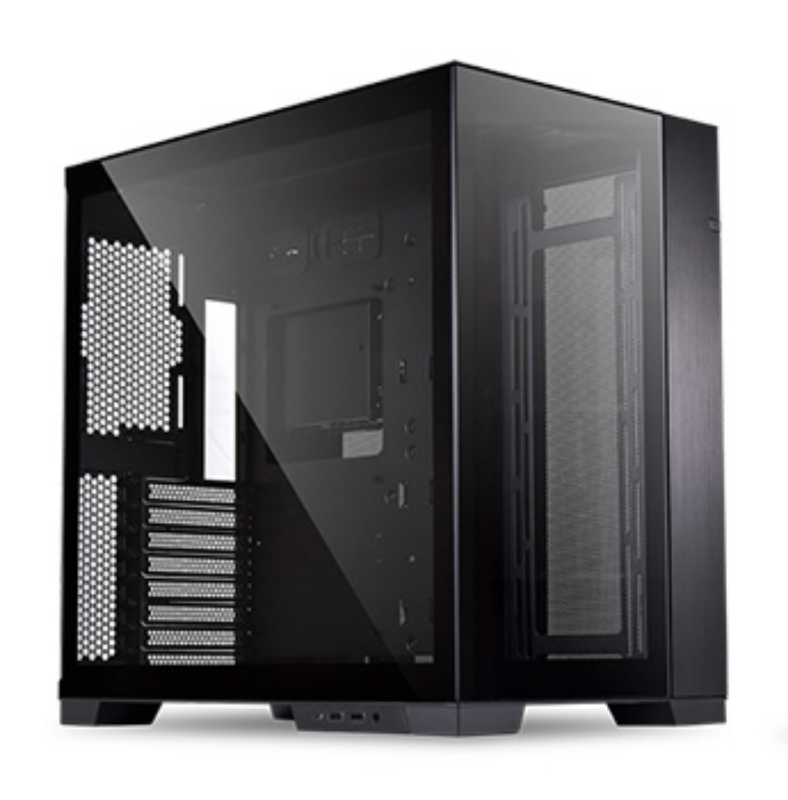

PRODUCT NAME O11D EVO
MODEL O11DEX O11DEW O11DEG
COLOR Black White Harbor Grey
DIMENSION (D)465mm × (W)285mm × (H)459mm
MATERIAL 4mm Aluminum
4mm Tempered Glass
1mm Steel Structure
MOTHERBOARD SUPPORT E-ATX (width: under 280mm)/ATX /M-ATX/ITX
PSU SUPPORT 220mm
FAN SUPPORT Top: 120mm × 3 or 140mm × 2
Side: 120mm × 3 or 140mm × 2
Bottom: 120mm × 3 or 140mm × 2
Rear: 120mm × 1
On Drive Cage: 60mm × 1
RADIATOR SUPPORT Top: 360mm × 1 or 280mm × 1
*Total max thickness: 87.5mm
Side: 360mm × 1 or 280mm × 1
*Inner scenario total max thickness:
83mm(120mm fan on top and bottom)
63mm(140mm fan on top and bottom)
*Outer scenario total max. thickness：
120mm(120mm fan on top and bottom)
100mm(140mm fan on top and bottom)
Bottom: 360mm × 1
*Total max thickness: 87.5mm
DRIVE SUPPORT Bottom：2.5” SSD × 4 or 3.5” HDD × 2
Side：2.5” SSD × 4 or 3.5” HDD × 2
Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
Cable Management Bar：2.5” SSD × 2
*Only 9 sets of 2.5” SSD mounting pads are provided
GPU LENGTH CLEARANCE 426 mm
CPU HEIGHT CLEARANCE 167 mm
EXPANSION SLOTS 8
I/O PORTS 2 × USB 3.0
1 × USB 3.1 TYPE-C,
1 × HD AUDIO/ MIC
LED Color and Mode button
Reset Button
Power Button
DUST FILTER Bottom × 1
WARRANTY 1 year
