Sorry - this product is no longer available

Kingston FURY KF436C18BBK2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3600 CL18 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 18-22-22 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
Manufacturer: Kingston
SKU: CRA0184
Manufacturer part number: KF436C18BBK2
GTIN: 0740617319743
Availability: Out of stock
Login to view Price

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.34” (34mm), w/heatsink

Products specifications
Attribute nameAttribute value
Memory Capacity2x 16GB
RAM Clock3600MHz
Memory TypeDDR4
Memory Form FactorDimm
Consumption5w

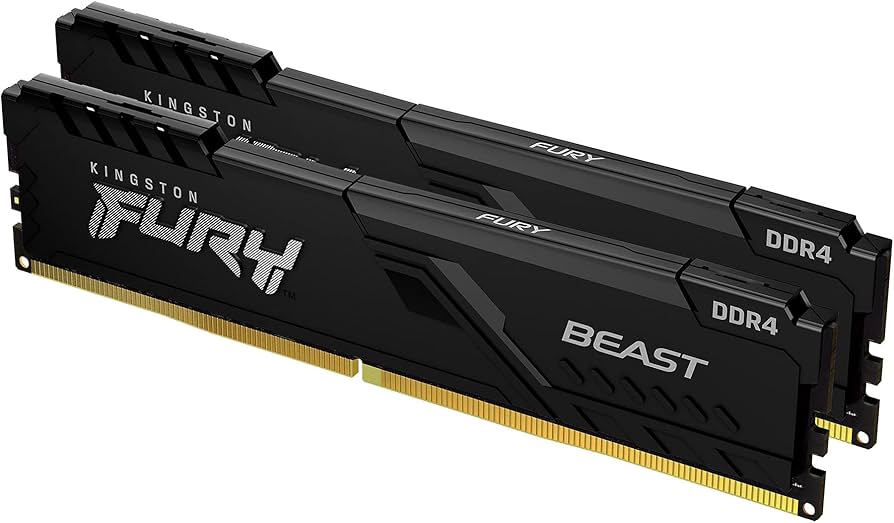

Kingston Fury Beast DDR4 32GB (2x16) KIT 3600MHz CL18 KF436C18BBK2
