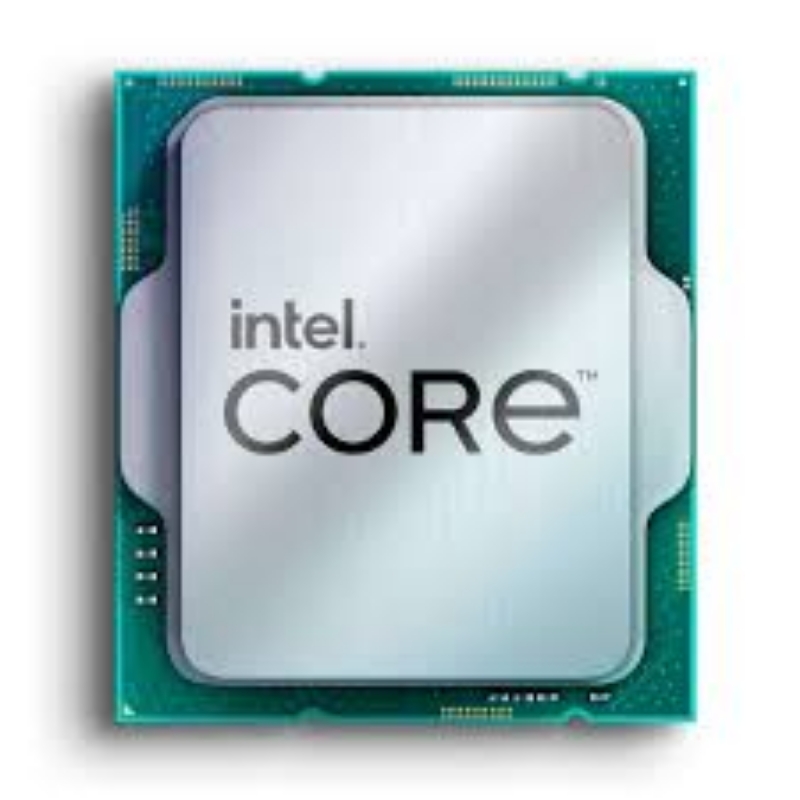

Picture of Intel Core i5 14400 S1700 BOX Gen14 BX8071514400

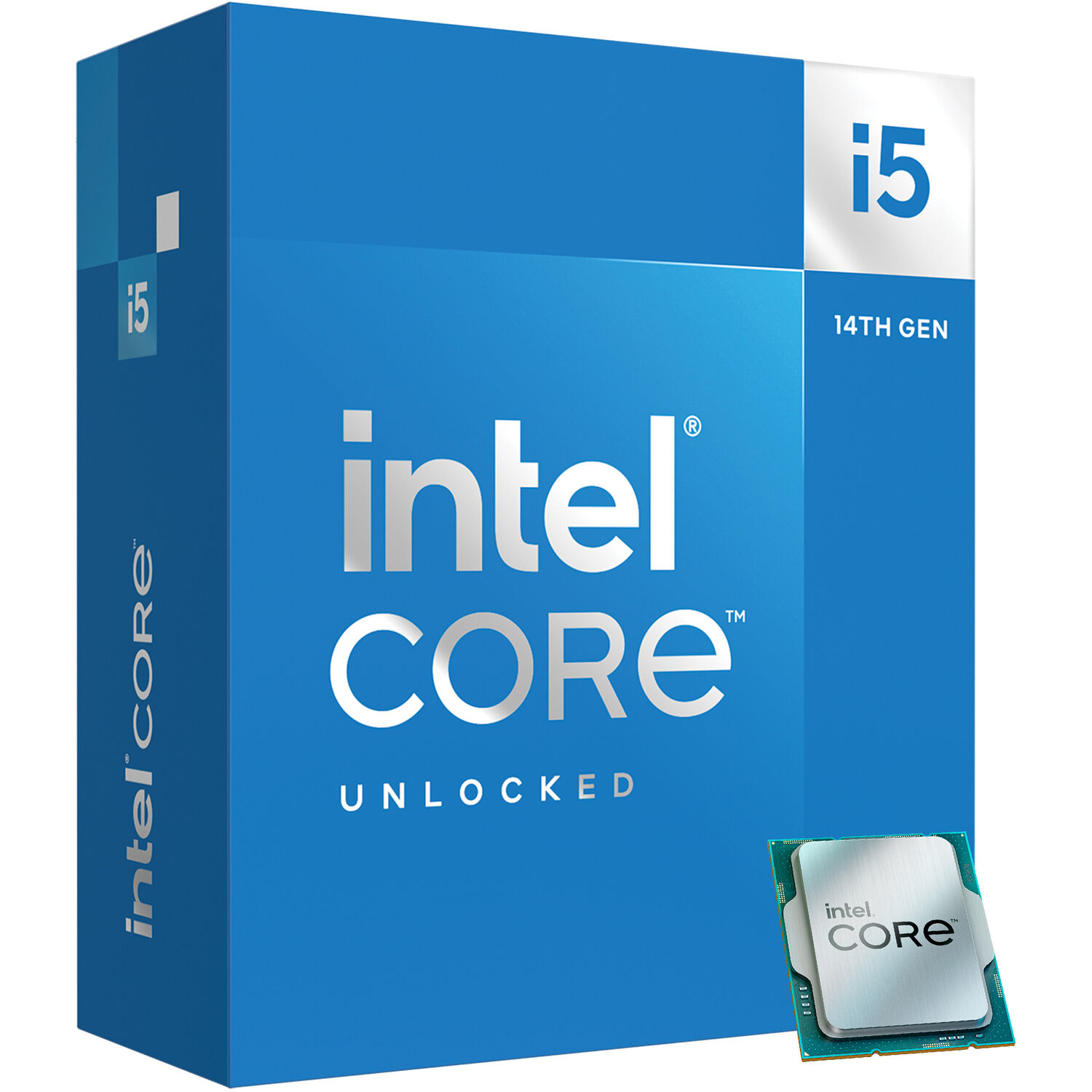

Picture of Intel Core i5 14400 S1700 BOX Gen14 BX8071514400

Raptor Lake

Manufacturer: Intel

SKU: CCP0120

Manufacturer part number: BX8071514400

Availability: 10 in stock

€152.97 excl tax

Qty:

Full Description
Specifications

CPU Specifications

Total Cores10
# of Performance-cores6
# of Efficient-cores4
Total Threads16
Max Turbo Frequency4.7 GHz
Performance-core Max Turbo Frequency4.7 GHz
Efficient-core Max Turbo Frequency3.5 GHz
Performance-core Base Frequency2.5 GHz
Efficient-core Base Frequency1.8 GHz
Cache20 MB Intel® Smart Cache
Total L2 Cache9.5 MB
Processor Base Power65 W
Maximum Turbo Power148 W

Supplemental Information

Marketing StatusLaunched
Launch DateQ1'24
Embedded Options AvailableYes
Use ConditionsPC/Client/Tablet

Memory Specifications

Max Memory Size (dependent on memory type)192 GB
Memory TypesUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels2
Max Memory Bandwidth76.8 GB/s

GPU Specifications

GPU Name^‡Intel® UHD Graphics 730
Graphics Max Dynamic Frequency1.55 GHz
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units24
Max Resolution (HDMI)^‡4096 x 2160 @ 60Hz
Max Resolution (DP)‡7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
DirectX* Support12
OpenGL* Support4.5
OpenCL* Support3.0
Multi-Format Codec Engines1
Intel® Quick Sync VideoYes
Intel® Clear Video HD TechnologyYes
# of Displays Supported ^‡4
Device ID0x4682/0xA782

Expansion Options

Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision5.0 and 4.0
PCI Express Configurations ^‡Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes20

Package Specifications

Sockets SupportedFCLGA1700
Max CPU Configuration1
Thermal Solution SpecificationPCG 2020C
T_JUNCTION100°C
Package Size45.0 mm x 37.5 mm
Max Operating Temperature100 °C

Advanced Technologies

Intel® Gaussian & Neural Accelerator3.0
Intel® Thread DirectorYes
Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Technology ^‡2.0
Intel® Hyper-Threading Technology ^‡Yes
Intel® 64 ^‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Volume Management Device (VMD)Yes

Security & Reliability

Intel® Standard Manageability (ISM) ^‡Yes
Intel® Control-Flow Enforcement TechnologyYes
Intel® AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Execute Disable Bit ^‡Yes
Intel® Boot GuardYes
Mode-based Execute Control (MBEC)Yes
Intel® Virtualization Technology (VT-x) ^‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ^‡Yes
Intel® VT-x with Extended Page Tables (EPT) ^‡Yes

Products specifications

Attribute name	Attribute value
TDP	150W
LGA/Socket Type	LGA1700
Integrated Graphics	Yes
Cooling Fan	Yes
Consumption	160w
