Sorry - this product is no longer available

Model GP-AP750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 10A Input Frequency 47-63 Hz Output Capacity 750W Dimension 150 x 160 x 86mm Fan Type 135mm Double ball bearing fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100ms ~ 150ms Hold Up Time > 16m sec at full load (115V) Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1 SATA x6 + 4 Pin Peripheral x2 : 550mm+100mm+100mm+100mm*1 450mm+100mm+100mm+100mm *1 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 4 Pin Floppy x 1 : 100mm

Manufacturer: Gigabyte

SKU: CPO0090

Availability: Out of stock

€156.76 excl tax

Qty:

Full Description
Specifications

Model GP-UD1000GM PG5
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Products specifications

Attribute name	Attribute value
Efficiency	Gold
Wattage	1000w

Customers who bought this item also bought

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch

NSW0041

€79.14 excl tax

Availability: 11

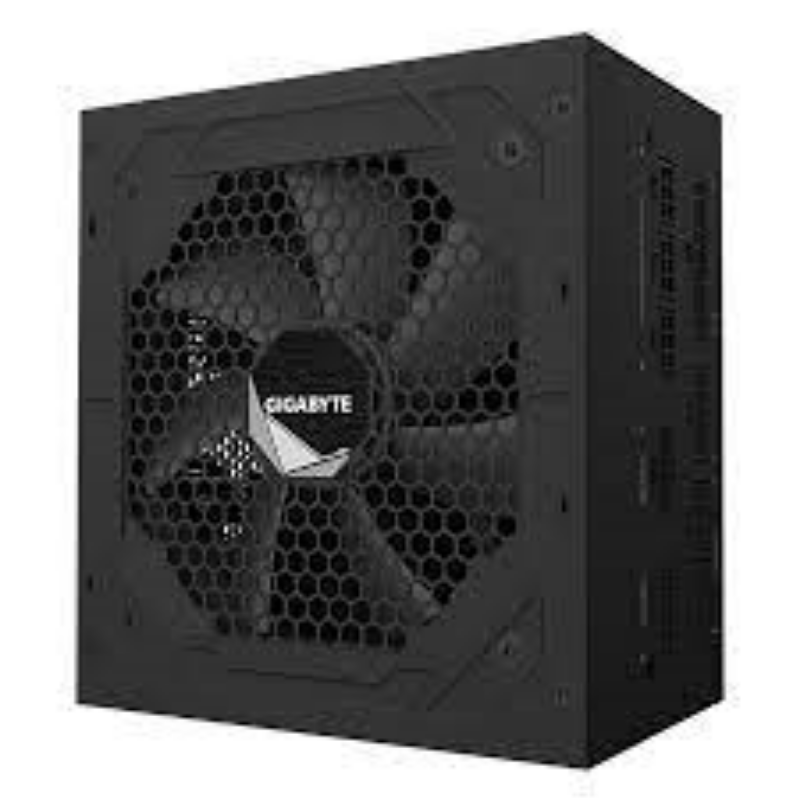

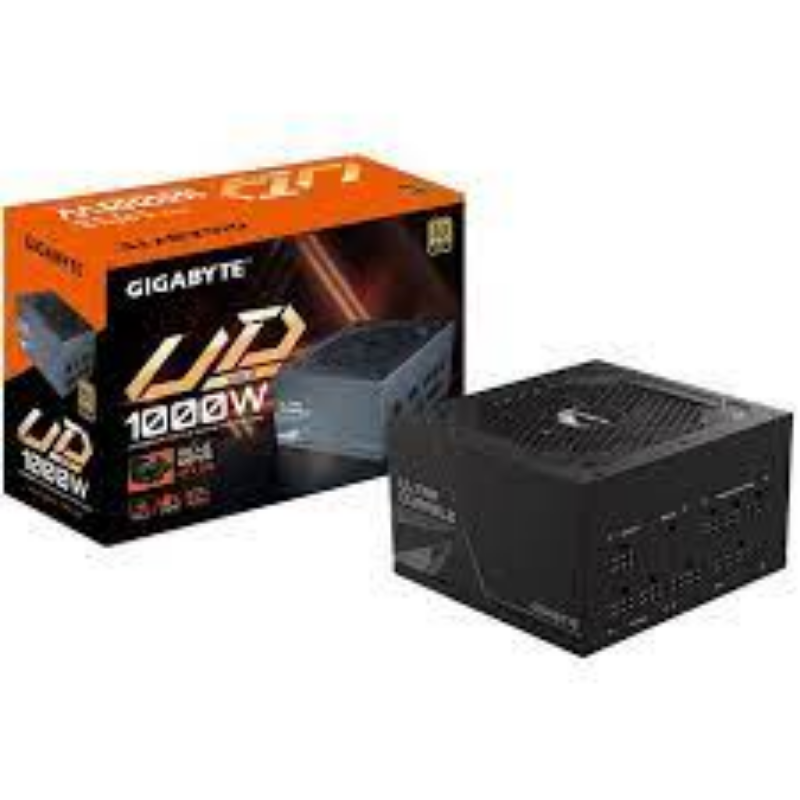

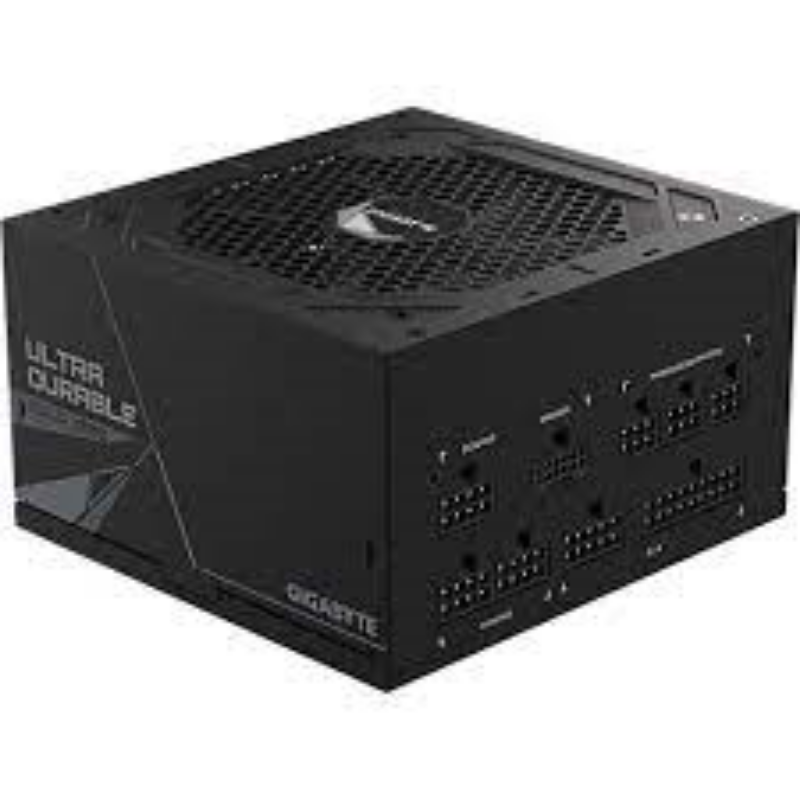

Gigabyte GP-UD1000GM PG5 2.0 ATX 3.0 1000W Power Supply
