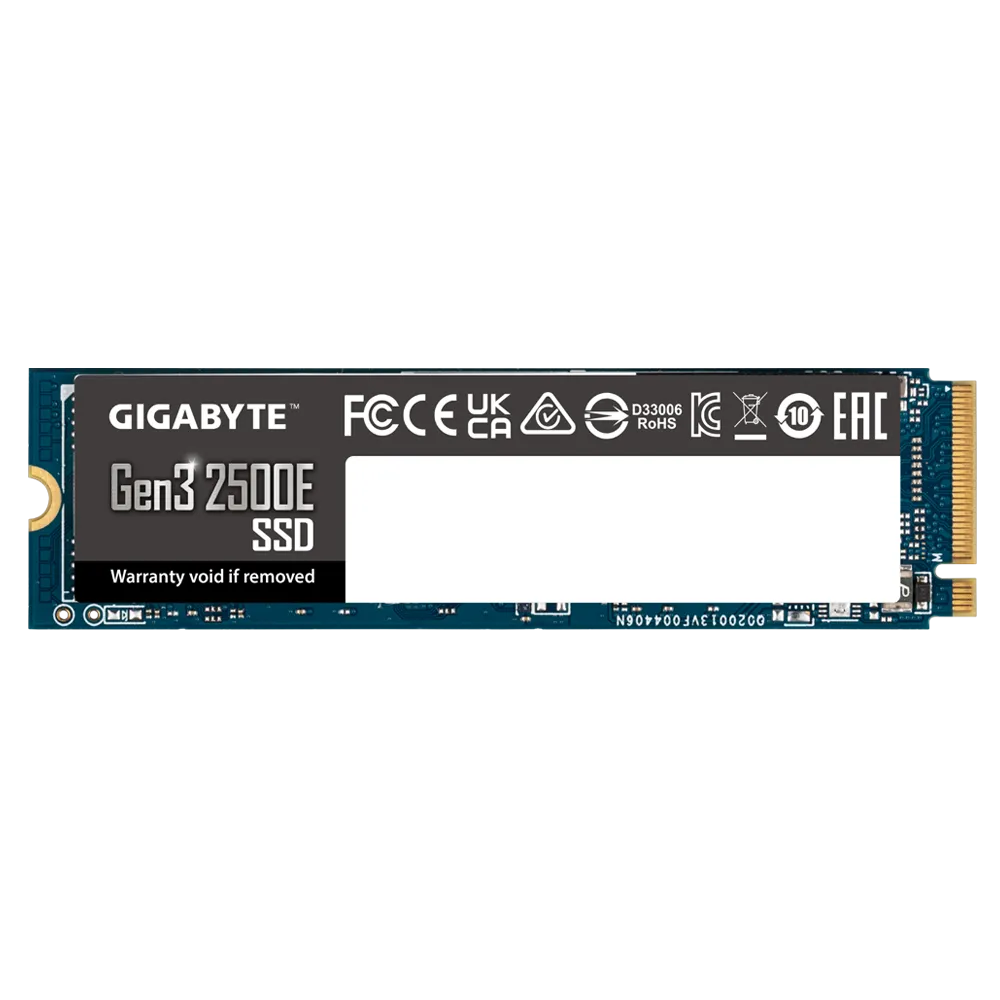

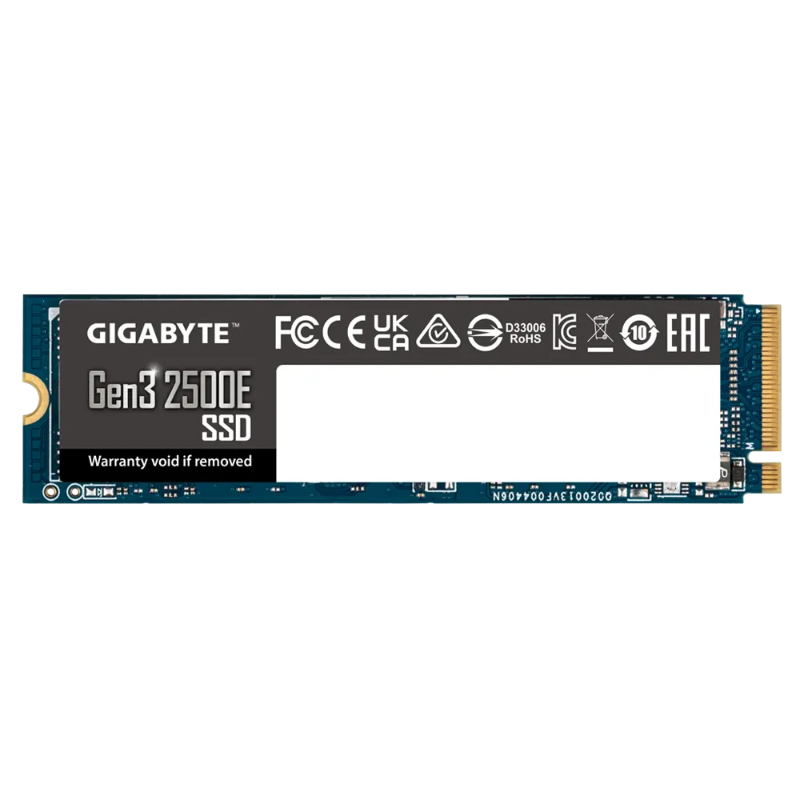

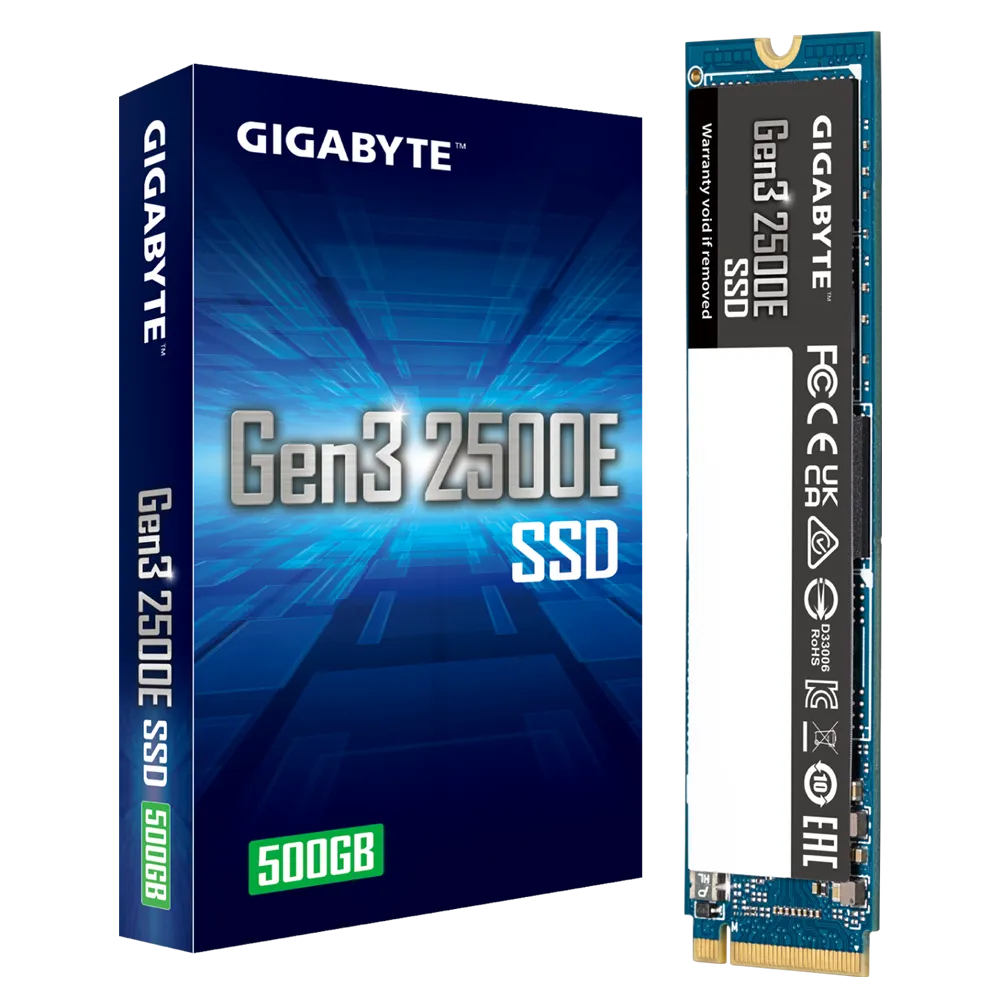

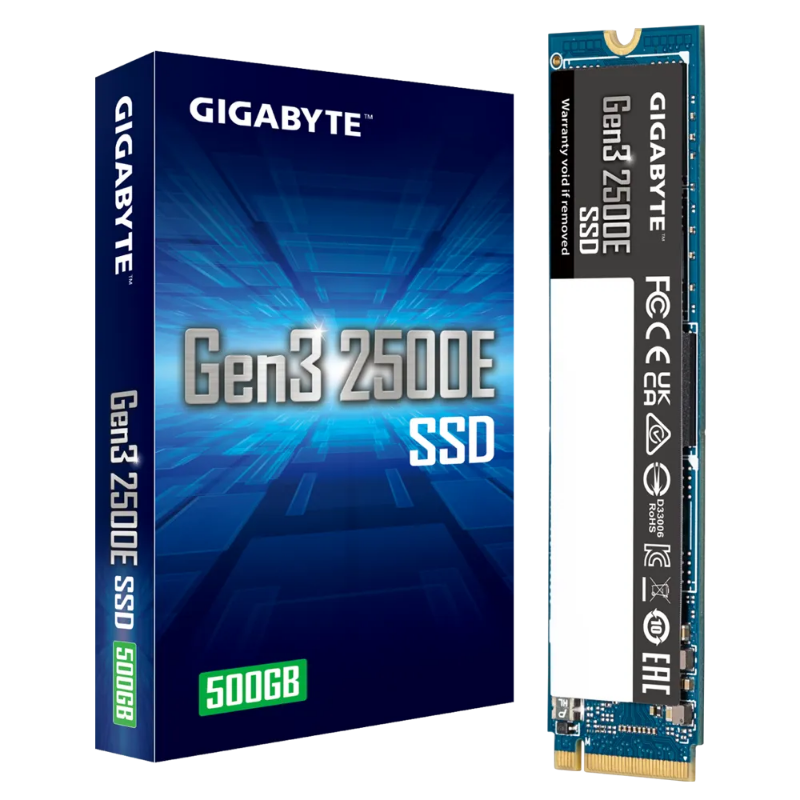

PCIe 3.0x4, NVMe1.3 interface + Sequential Read Speed : up to 2,300 MB/s + Sequential Write speed : up to 1,500 MB/s + HMB (Host Memory Buffer) supported + TRIM & S.M.A.R.T supported + Energy-efficient

Manufacturer: Gigabyte

SKU: CSS0099

Manufacturer part number: G325E500G G10

Availability: 18 in stock

€39.15 excl tax

Qty:

Full Description
Specifications

Interface
PCIe 3.0x4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
500GB
External DDR Cache
N/A
Sequential Read speed
Up to 2300 MB/s
Sequential Write speed
Up to 1500 MB/s
Random Read IOPS
Up to 60K
Random Write IOPS
Up to 240K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Max. Operating Power
Read: 2300mW
Write: 2250mW
Power Consumption (Idle, PS3)
30mW
Power Consumption(PS4, L1.2)
5mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Warranty
- 1. Limited 3 years or 120TBW.
- 2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
  *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
- 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
- • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
- • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
- • Speeds based on internal testing. Actual performance may vary.
- • 1GB = 1 billion bytes. Actual useable capacity may vary.
