Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5070 Integrated with 12GB GDDR7 192bit memory interface WINDFORCE cooling system Hawk fan Server-grade thermal conductive gel NVIDIA SFF-ready Reinforced structure

Manufacturer: Gigabyte

SKU: CGC0181

Manufacturer part number: GV-N5070WF3OC-12GD

GTIN: 4719331355715

Availability: 4 in stock

Full Description
Specifications
Tags

Graphics Processing
GeForce RTX™ 5070
Core Clock
2542 MHz (Reference card : 2512 MHz)
CUDA® Cores
6144
Memory Clock
28 Gbps
Memory Size
12 GB
Memory Type
GDDR7
Memory Bus
192 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=282 W=110 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
750W
Power Connectors
16 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
1. Quick guide
2. 1x 12V-2x6 to 2x PCIe 8pin adapter

Products specifications

Attribute name	Attribute value
Graphic Memory	12GB
No. of Fans	3
Gpu Chipset	5070
Consumption	500w

Product tags

gpu (12)
,
5070 (4)
,
rtx (2)
,
5000 (2)

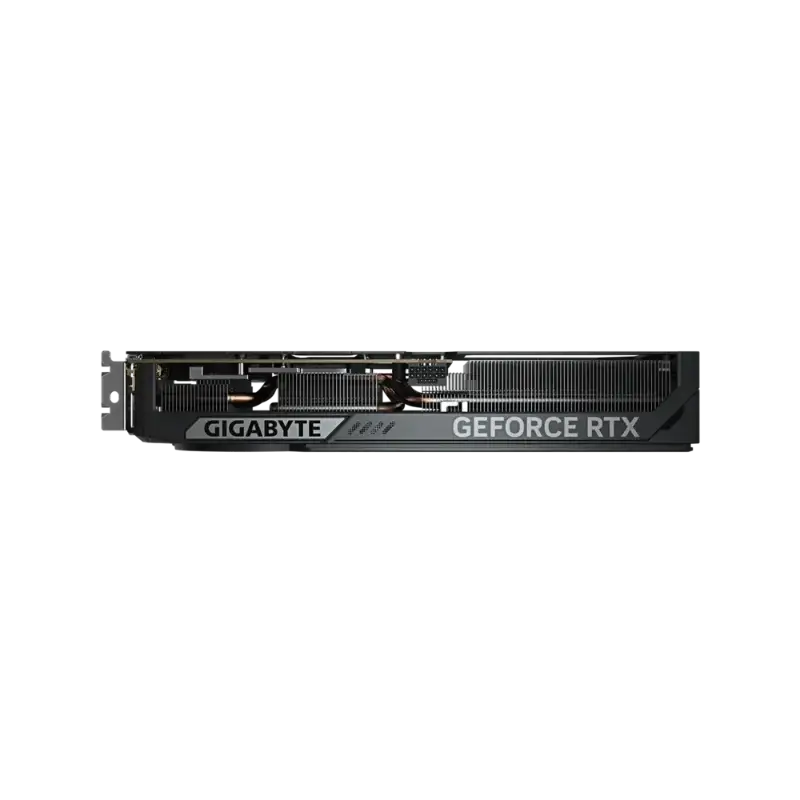

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12GB GDDR7 Graphics Card GV-N5070WF3OC-12GD
