Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR5：2*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design Fast Networks：2.5GbE LAN Extended Connectivity：Rear USB-C® 5Gb/s, DP, HDMI, D-Sub Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Manufacturer: Gigabyte

SKU: CMB0218

Manufacturer part number: B760M Gaming G10

Availability: Out of stock

€94.06 excl tax

Qty:

Full Description
Specifications
Tags

- CPU
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
  L3 cache varies with CPU
  (Please refer "CPU Support List" for more information.)
- Chipset
  Intel^® B760 Express Chipset
- Memory
  Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
- Onboard Graphics
  Integrated Graphics Processor-Intel^® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
  1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
  (Graphics specifications may vary depending on CPU support.)
  Support for up to 3 displays at the same time
- Audio
  Realtek^® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  Support for S/PDIF Out
- LAN
  Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Expansion Slots
  CPU:
  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  Chipset:
  1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Storage Interface
  CPU:
  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- USB
  Chipset:
  1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
  5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  2 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hubs:
  4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  3 x system fan headers
  1 x addressable LED strip headers
  1 x RGB LED strip headers
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper

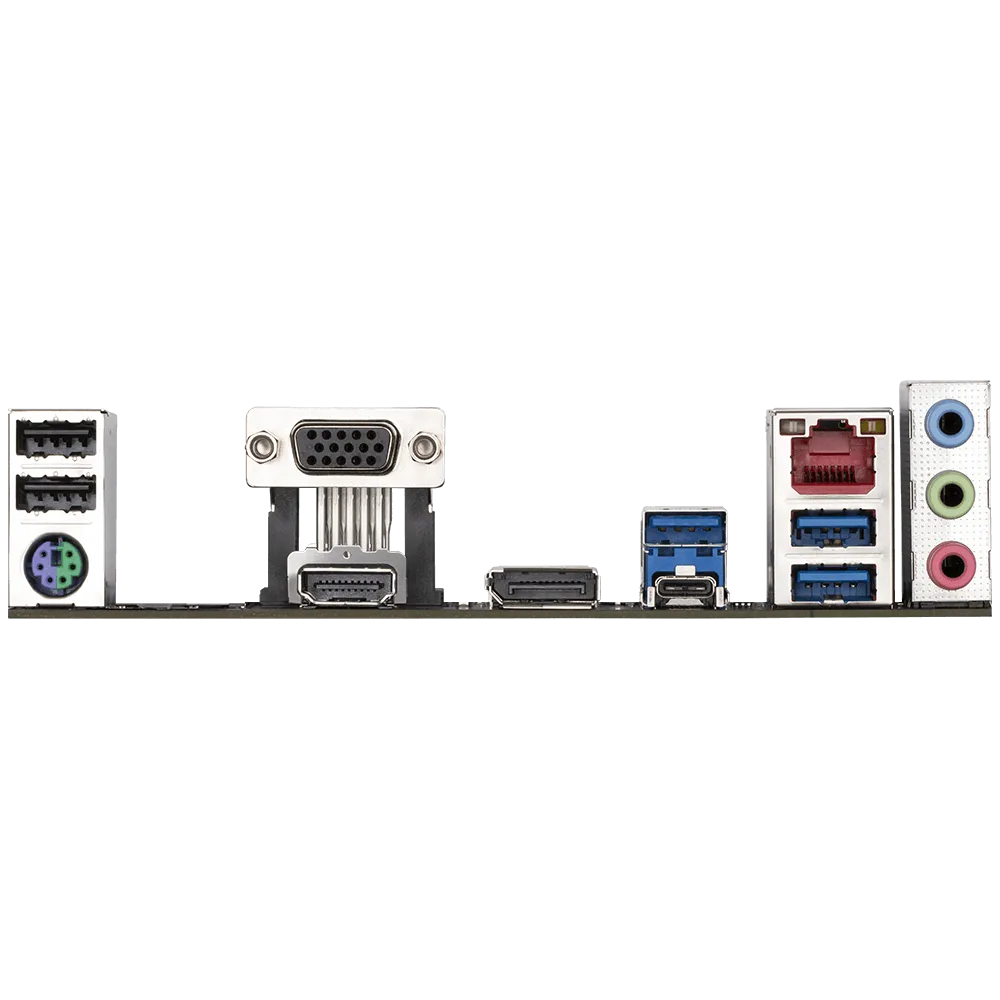

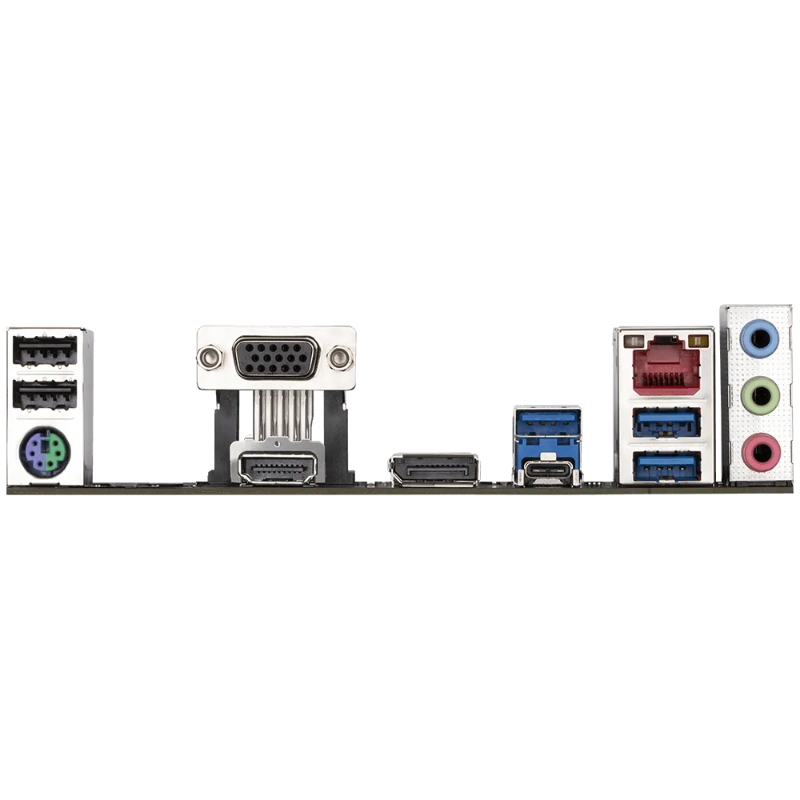

- Back Panel Connectors
  2 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x HDMI port
  1 x DisplayPort
  3 x USB 3.2 Gen 1 ports
  1 x USB Type-C^® port, with USB 3.2 Gen 1 support
  1 x RJ-45 port
  3 x audio jacks
- I/O Controller
  iTE^® I/O Controller Chip
- H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
- BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
  Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Q-Flash Plus
- Bundled Software
  Norton^® Internet Security (OEM version)
  LAN bandwidth management software
- Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
- Form Factor
  Micro ATX Form Factor; 24.4cm x 22.5cm
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
