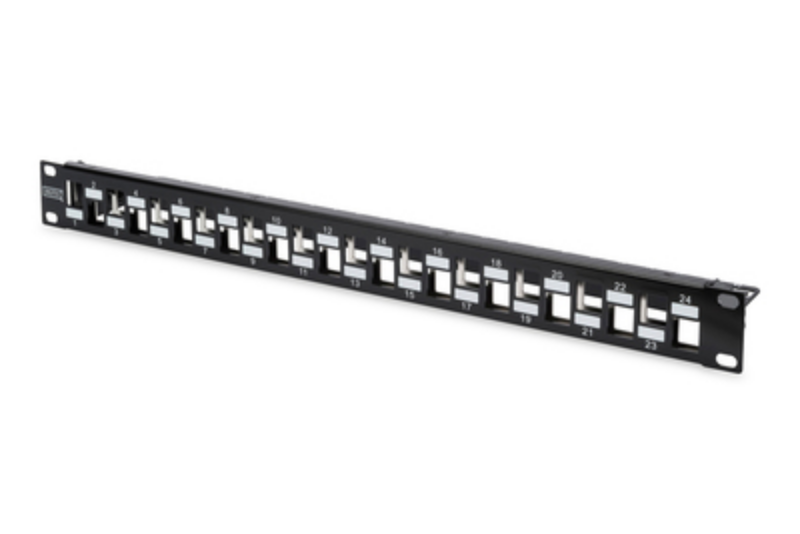

The staggered modular 24-port Patch Panels from DIGITUS® are with the 1.5 mm cold rolled c-steel perfect suitable for 483 mm (19") rack mounting. Due to the staggered array of the keystone modules a better attenuation ratio is reached between surrounding transmission channels. They are available in the colors grey (RAL 7035) and black (RAL 9005).

Manufacturer: Digitus

SKU: NCA0002

Availability: 8 in stock

€30.08 excl tax

Qty:

Full Description
Specifications

Layout Keystone Entry: Staggered
Area of application: 483 mm (19") cabinet
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
Suitable for shielded Digitus® Keystone Modules and Couplers
Central ground connection
Technical properties:
Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
Grounding bar material: Galvanized steel
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

Products specifications

Attribute name	Attribute value
PDU & Accessories	Patch Panel

Digitus Patch panel 24P 19 CAT6 blk

€30.08 excl tax
